Description
Key Technical Specifications

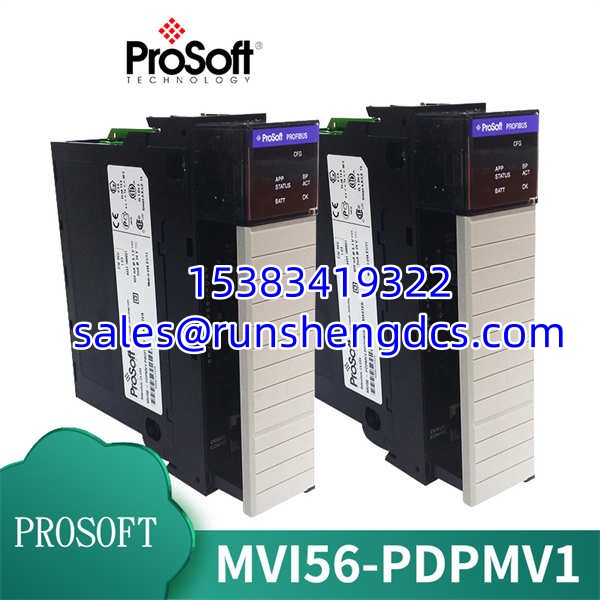

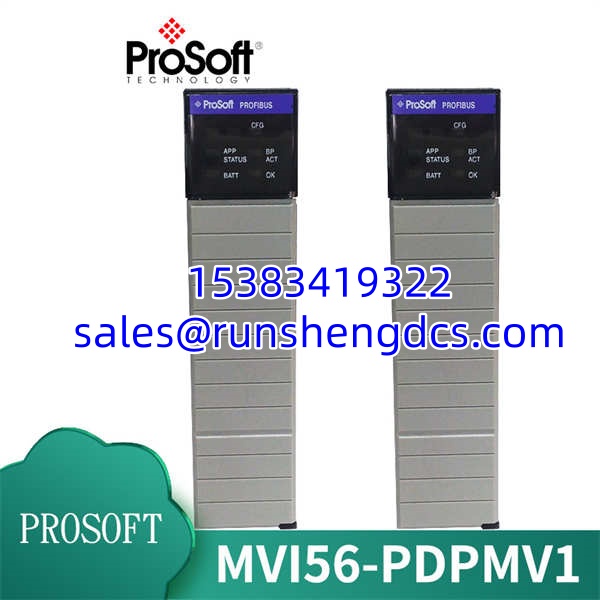

- Model Number: MVI56-PDPMV1
- Manufacturer: Spectrum / ProSoft Technology
- Series: ControlLogix Communication Modules
- Protocol: PROFIBUS DPV0 / DPV1 Master
- Backplane Compatibility: 1756 ControlLogix Rack
- Data Transfer: Class 1 & Class 2 DPV1 Services
- Baud Rate: 9.6 Kbps to 12 Mbps
- Configuration Tool: ProSoft Configuration Builder (PCB)
- Connectivity: CIPconnect™ (Ethernet Routing)
- Slot Requirement: Single Slot
Functional Role & Application Analysis
The Spectrum MVI56-PDPMV1 acts as a high-performance PROFIBUS DPV1 master scanner for Rockwell Automation ControlLogix processors. It solves the integration challenge of connecting Allen-Bradley PLCs to legacy or third-party PROFIBUS field devices like drives, valves, and remote I/O. The module handles the PROFIBUS protocol stack independently, transferring cyclic I/O data and non-cyclic parameters asynchronously to the ControlLogix backplane. Ladder logic instructions manage the data exchange, keeping the main processor scan time predictable.
Typical use cases include:
- Integrating European-manufactured PROFIBUS equipment into North American ControlLogix plants.
- Replacing failed PROFIBUS master modules in petrochemical and power generation facilities.
- Connecting variable frequency drives and motor control centers via PROFIBUS DP.
- Legacy system maintenance where original ProSoft spares are no longer manufactured.
Our Quality Standard & Testing Process
We understand that the cost of an unreliable communication module is far greater than its purchase price. A faulty PROFIBUS master causes intermittent network faults that are nearly impossible to troubleshoot in production. We have established a rigorous, multi-stage testing process to ensure every product we ship is 100% functional.
- Visual & Component Inspection: All parts undergo professional cleaning and visual inspection. We check for backplane connector wear, corrosion, damaged pins, and compromised solder joints common in aged modules.
- Live System Test: The module is installed in a live ControlLogix test rack with an actual PROFIBUS DP slave device. We run continuous cyclic data exchange for a minimum of 24 hours to verify stable bus communication.
- Full-Function Diagnostics: We test Class 1 and Class 2 DPV1 services, verify baud rate configuration from 9.6 Kbps to 12 Mbps, and confirm CIPconnect routing functions. Diagnostic registers and LED indicators are validated against factory specifications.
- Warranty Backing: Only parts that pass all diagnostic tests are approved for shipment and backed by our full 12-month warranty. Test logs are available upon request.

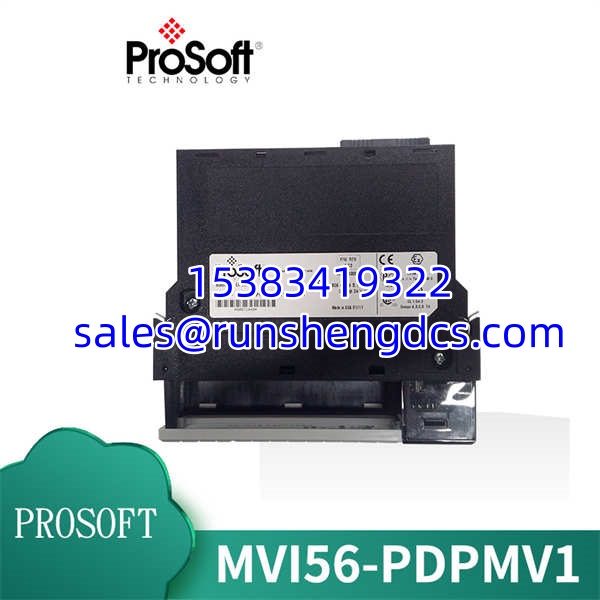

Spectrum-MVI56-PDPMV1
Compatibility & Migration Paths
To ensure this MVI56-PDPMV1 is 100% compatible with your system, you must check these key compatibility points. Communication module mismatches cause project delays and costly returns.
- Firmware/Hardware Revisions: Confirm your ControlLogix processor firmware supports the MVI56-PDPMV1. Older L6x processors may require firmware updates. Verify the module revision matches your existing configuration file or GSD import.
- Required Components: This module requires a 1756 ControlLogix backplane and chassis. It is NOT compatible with CompactLogix, SLC 500, or PLC-5 systems. Verify your rack slot availability and power supply capacity before ordering.
- Replacement & Alternatives: The MVI56-PDPMV1 is the legacy model. The newer MVI56E-PDPMV1 (Enhanced) offers improved performance and Ethernet configuration. If migrating, you will need to update your ProSoft Configuration Builder project and re-import GSD files. For direct replacement, ensure hardware revision compatibility.
- Get Expert Help: Unsure about your system? Contact our technical team today for a free compatibility check. Send us a photo of your existing module and ControlLogix rack, and we will confirm fitment and recommend the best migration path.
