Description

Key Technical Specifications

Product Model: 140CPU67160
Manufacturer: Schneider Electric
Product Category: Hot Standby CPU Module
Processor: PowerPC 603e @ 266 MHz
Memory: 1024 KB RAM (512 KB Dedicated Data)
Program Storage: Expandable to 7168 KB via PCMCIA
Communication: 2x Ethernet (TCP/IP), 1x Modbus Plus, 1x USB
Redundancy: Hot Standby (HSBY) with Fiber Optic Sync
Instruction Speed: ~0.05 μs/bit (Basic Logic)
Display: 2-line x 16-char LCD with Backlight
Battery: 990XCP9800 (Included, often disconnected for shipping)
Operating Temp: -25°C to +60°C

Product Introduction

Critical processes don’t tolerate downtime, and legacy Quantum racks still run half the world’s water plants. The Schneider 140CPU67160 is a Hot Standby (HSBY) processor designed to keep those plants running when the primary CPU fails. It runs at 266 MHz with 1 MB of RAM, handling complex logic and redundancy sync without breaking a sweat. This isn’t just a CPU; it’s an insurance policy against 3 AM emergency calls.

Field engineers know the pain of mismatched firmware or dead batteries in standby CPUs. The 140CPU67160 ships with the 990XCP9800 battery (usually disconnected to prevent drain), so you don’t have to hunt for replacements during commissioning. With dual Ethernet ports and built-in Modbus Plus, it handles network traffic without needing extra comm modules. Bottom line—it’s a workhorse for legacy systems, but treat it as a bridge to M580, not a permanent solution.

Troubleshooting Quick Reference

CPU Won’t Enter Run Primary: 90% chance it’s missing CRP/CRA modules. HSBY requires at least one healthy remote I/O drop or a CRP module to achieve Primary status. Check RIO configuration.
Standby CPU Shows “Run Offline”: 80% chance of sync link failure. Inspect the fiber optic cable between Primary and Standby. Clean connectors with lint-free swab. Verify fiber isn’t bent >2″ radius.
LCD Blank / No Backlight: 70% chance of dead battery or power issue. Measure 24V DC at backplane. Check battery voltage (should be >3.0V). Replace 990XCP9800 if low.
Intermittent Switchover: 60% chance of network storm or ground loop. Check Ethernet for broadcast storms. Verify chassis ground <1Ω. Isolate comm cables from VFD output wires.

Application Scenarios & Pain Points

Water/Wastewater Treatment: Pump stations run 24/7 in harsh environments. The 140CPU67160 handles hot standby switchover in <30ms, keeping pumps running during CPU failure. No process interruption, no overflow events.
Power Generation Aux Systems: Coal handling and ash removal systems are dirty and hot. This CPU’s -25°C to +60°C range survives unconditioned control rooms. The LCD lets operators check status without opening the panel.
Legacy System Upgrades: Plants migrating from 140CPU43412A to 140CPU67160 get 3x more RAM and dual Ethernet. No rewiring needed—same backplane, same I/O. Just update Unity Pro project and download.

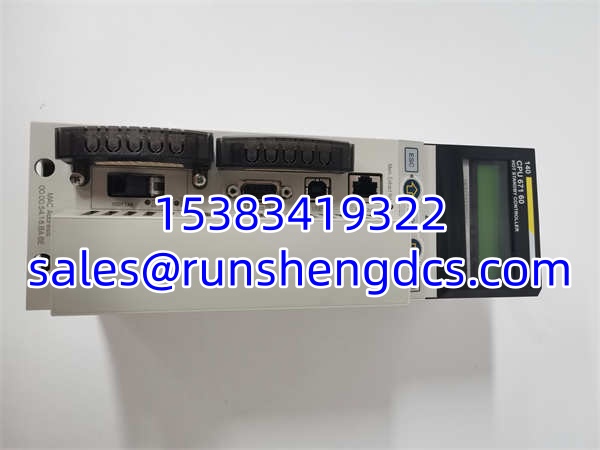

Schneider 140CPU67160

Compatible Replacement Models

✅ Drop-in Replacement: 140CPU67160 – Exact match. Verify firmware version (V8.1+ recommended). Check battery connector (some early units had different harness). Cost: ~$6,900 refurbished.
⚠️ Software Compatible: 140CPU65160 – Same form factor, same RAM, but NO hot standby. Warning: Loses redundancy. Requires logic review to remove HSBY blocks. Budget 4-8 hours for reconfiguration.
❌ Hardware Incompatible: 140CPU67160S – Different sync protocol. Do NOT mix 140CPU67160 and 140CPU67160S in same HSBY pair. They will not sync. Verify both CPUs match exactly.
