Description
Key Technical Specifications
- Product Model: 140CPU65260
- Manufacturer: Schneider Electric
- Product Type: Unity Control Processor Module
- Processor: Pentium Unity @ 266 MHz
- Internal RAM: 3072 kB (Base) / Up to 7168 kB (with PCMCIA)
- Communication Ports: 1x Modbus (RS-232/485), 1x Modbus Plus, 1x USB, 1x Ethernet
- Bus Current: 2760 mA
- Battery: 3V Lithium (10-year shelf life)
- Expansion: 2 Local Racks, 6 Optional Comm Modules
- Programming: IEC 61131-3 (LD, ST, FBD)
- Diagnostics: Built-in RAM, Logic, and Processor Checks
Product Introduction
Legacy Quantum CPUs are the backbone of plants that can’t afford a full DCS migration. The SCHNEIDER 140CPU65260 is a high-performance Unity processor running at 266 MHz, designed to handle complex multitasking and large-scale I/O architectures. It features 3072 kB of internal RAM and supports up to 6 optional communication modules for Ethernet, Profibus DP, or Modbus Plus expansion. The 140CPU65260 isn’t just a controller; it’s a multitasking engine with a built-in real-time clock for precise event logging and timestamping.
Why keep this specific CPU in your spare parts inventory? Because it supports 31,744 discrete I/O points and 1,984 analog I/O points in remote configurations, handling massive process data without choking. The 140CPU65260 includes comprehensive built-in diagnostics that check RAM, execution checksums, and user logic on every power-up. Bottom line—it’s a proven workhorse for critical infrastructure where “upgrade” means “shutdown for 6 months.”
Troubleshooting Quick Reference
| Fault | Probable Cause | Relevancy | Quick Check | Fix |
|---|---|---|---|---|
| BatL LED Flashing | 3V Lithium Battery Low | 90% | Check front panel LED | Replace 3V Li battery immediately |
| No Comm on Ethernet | Port Config or Cable | 80% | Ping CPU IP; check Link LED | Verify IP/Subnet; swap Cat5e cable |
| HALT State | Logic/Checksum Error | 70% | Check Unity Pro diagnostics | Reload application; check PCMCIA |
| Modbus Plus ERR | Duplicate Address | 60% | Check MB+ Node ID | Verify unique address on network |
| No Boot | Corrupt Firmware | 40% | Check Boot LED sequence | Reload firmware via USB/PCMCIA |

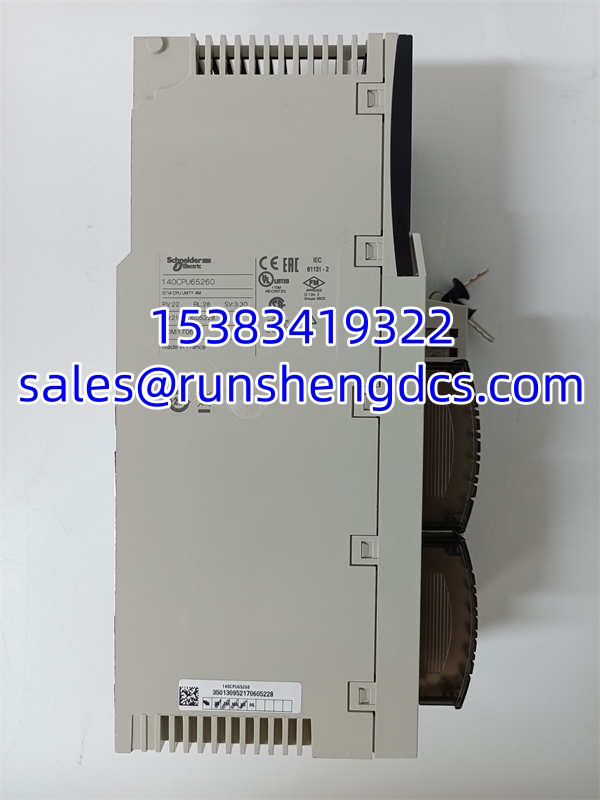

SCHNEIDER 140CPU65260
Application Scenarios & Pain Points
- Water/Wastewater Treatment Plants: Massive I/O counts across distributed stations. The 140CPU65260 handles 31k+ discrete points and supports 63 distributed I/O stations without needing a secondary controller.
- Mining & Mineral Processing: Harsh EMI environments with long cable runs. The 140CPU65260’s Modbus Plus and fiber optic interconnect options (via expansion) reject noise that kills standard Ethernet.
- Power Generation Auxiliaries: Critical BOP (Balance of Plant) systems. The 140CPU65260’s real-time clock and event logging provide the forensic data needed for trip analysis after a grid disturbance.
