In a process plant, losing an analog I/O module means losing visibility into a control loop — and possibly losing the ability to modulate a valve or setpoint. The Schneider Electric 140AMM09000 is an analog mixed I/O module for the Modicon Quantum 140-series PLC platform. It combines analog input and analog output channels in a single module, reducing slot count in the Quantum rack while keeping process signals consolidated.

The 140AMM09000 is typically configured as a 4-channel analog input and 2-channel analog output module, supporting standard process signals such as 4–20 mA and 0–10 V. It plugs directly into the Modicon Quantum backplane and is recognized by the Quantum I/O mapping configuration. The “C” suffix variant (140AMM09000C) is a common revision seen in the spare-parts market; always verify the exact label marking against the failed module and the existing Quantum I/O configuration before purchasing.

Because the Modicon Quantum platform is now in legacy status, replacement modules come from surplus inventory, decommissioned systems, or refurbished channels. The 140AMM09000 is not compatible with Modicon M580, M340, or Premium racks — it is specific to the Quantum 140-series backplane.

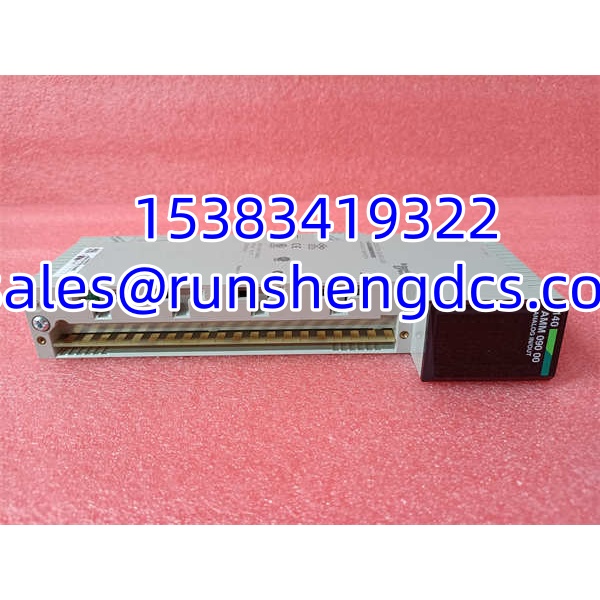

Schneider 140AMM09000

QA/QC Transparency SOP

Every 140AMM09000 unit goes through a structured pre-shipment check:

1. Intake & Origin Verification — Confirm part number 140AMM09000 or 140AMM09000C. Inspect for physical damage, connector pin integrity, label authenticity, and correct Quantum form factor.
2. Visual & Connector Inspection — Check the backplane connector edge for bent pins, corrosion, or burn marks. Verify module LEDs are intact and the housing is free of cracks.
3. Bench Functional Test — Install the module in a compatible Modicon Quantum test rack with power applied. Verify the module is recognized by the backplane and no fault LEDs are active.
4. Channel Verification — Apply known 4–20 mA or 0–10 V signals to the analog input channels and verify correct readings in the PLC register map. Drive the analog output channels and verify output levels with a multimeter or mA meter.
5. Final QC & Anti-Static Packaging — Document test results, photograph labels and connectors, then pack in anti-static material for shipment.

Field Engineer Gotchas

Verify the exact suffix before ordering.
140AMM09000 and 140AMM09000C are closely related but may differ in firmware, channel configuration, or addressing. The Quantum I/O configuration database must match the physical module revision. Swapping the wrong variant can cause register mapping errors or channel mismatches.

It is a mixed I/O module, not pure AI or AO.
The 140AMM09000 combines analog inputs and outputs in one module. Do not confuse it with dedicated AI modules (e.g., 140ACI03000, 8-channel AI) or dedicated AO modules. The register map includes both input words and output words.

Addressing must match the Quantum configuration.
Quantum analog modules consume multiple contiguous input and output registers. If the replacement module has a different addressing requirement than the original, the PLC program may read/write the wrong registers. Verify the I/O map before swapping.

Hot-swap does not mean risk-free.
Quantum modules support hot-swap, but replacing an analog I/O module while the process is running means the affected channels will be unavailable during the swap. Coordinate with operations and verify output fail-safe settings before pulling the module.

Surplus listings are inconsistent.
Some third-party sellers mislabel the 140AMM09000 as a pure analog input module, a communication module, or even a CPU. Always confirm the physical label reads “140AMM09000” or “140AMM09000C” and that the module has both AI and AO terminal blocks.

Channel count varies by revision.
Listings describe the 140AMM09000 as 4 AI + 2 AO, but some sources cite different channel counts for the “C” revision. Always verify the actual module label and the Quantum I/O configuration rather than relying on generic product descriptions.

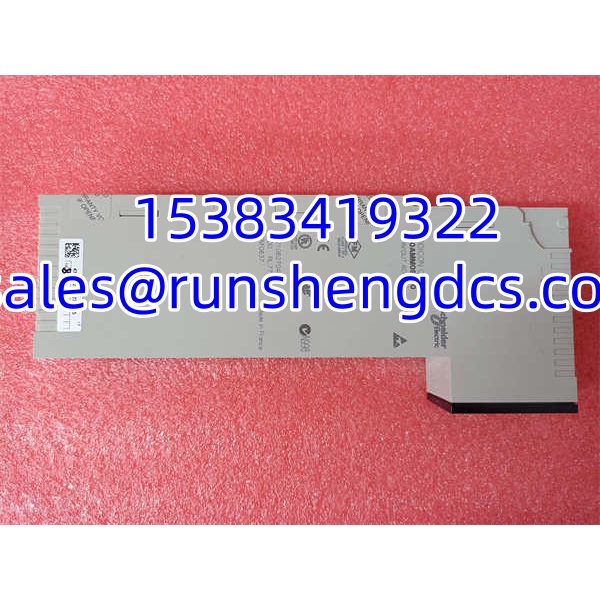

Schneider 140AMM09000

Application Scenarios

Legacy process control loop maintenance.
Facilities running Modicon Quantum PLCs in oil & gas, chemical, water treatment, and power generation applications use the 140AMM09000 to acquire process variables (pressure, level, flow) and drive analog outputs (valve positioners, speed references) in a single module slot.

Rack space optimization in retrofits.
When adding analog I/O to an existing Quantum rack with limited free slots, a mixed AI/AO module like the 140AMM09000 can consolidate signals without adding separate AI and AO cards.

Decommissioned system cannibalization.
As Quantum systems are gradually migrated to M580, decommissioned racks become a source of spare analog modules. The 140AMM09000 is commonly harvested from these systems for use in sister plants still running Quantum.

Case note: A water treatment facility reported that a replacement 140AMM09000 module caused incorrect valve positioning after installation. The module itself tested fine on the bench. The root cause was a register mapping mismatch — the replacement was a 140AMM09000C with a slightly different output word assignment than the original 140AMM09000. Updating the Quantum I/O configuration to match the new module’s addressing resolved the issue.

FAQ

Is 140AMM09000 the same as 140AMM09000C?
They are closely related revisions of the same analog mixed I/O module family, but they may differ in firmware, addressing, or channel behavior. Always verify the exact part number against the failed unit and the Quantum I/O configuration before ordering.

How many channels does it have?
The 140AMM09000 is typically described as 4 analog inputs + 2 analog outputs. However, the “C” revision may have different channel counts in some references. Verify the physical module label and the Quantum configuration database.

What signal types does it support?
Typical support includes 4–20 mA current and 0–10 V voltage signals. Verify the specific signal range per channel in the module datasheet or the Quantum hardware reference manual for your revision.

Will it work in a Modicon M580 or M340 rack?
No. The 140AMM09000 is designed exclusively for the Modicon Quantum 140-series backplane. M580, M340, and Premium platforms use different module form factors and communication protocols.

Is it still available new from Schneider Electric?
The Modicon Quantum 140 series was announced for phase-out around 2018 and is now in spare-parts support mode. New stock from Schneider is unlikely; available units come from surplus inventory or refurbished channels.

Can it be hot-swapped?
Yes. Quantum I/O modules support hot-swap replacement. However, the affected analog channels will be unavailable during the swap, so coordinate with operations and verify output fail-safe settings.

What are common failure symptoms?
Analog input channels reading zero or saturated, analog outputs stuck at a fixed value, module fault LED active, or the PLC reporting an I/O fault for the module slot. Always verify field wiring and signal sources before condemning the module.
