Description
Key Technical Specifications
- Product Model: 311041
- Product Description: PSS SB SUB-D4-DIAG
- Manufacturer: PILZ
- Product Type: SafetyBUS p Interface Connector
- Operating Voltage: 24 VDC
- Max Current: 0.2 A
- Max Operating Temperature: 70°C
- Connector Type: SUB-D4
- Application: SafetyBUS p Network Diagnostics
Product Introduction
When you are dealing with a safety-rated network, you don’t have the luxury of guessing why a system tripped. The PILZ 311041 (PSS SB SUB-D4-DIAG) was designed to give you a hardwired diagnostic window into your SafetyBUS p network. It acts as a physical bridge, allowing you to plug external diagnostic tools directly into the bus without breaking the safety chain or causing a network fault.
Engineers keep the PILZ 311041 around because it takes the guesswork out of safety PLC troubleshooting. Rated for 24V DC at 0.2A, this connector is built to handle the harsh electrical noise of a factory floor while maintaining strict safety integrity. It is a simple, passive interface, but when your safety controller is throwing cryptic bus errors at 2 AM, this little D-Sub connector is often the only way to see what is actually happening on the wire.
Quality SOP & Tech Pitfalls (The Reality Check)
Before this PILZ 311041 leaves our bench, we run it through a strict validation protocol. We start with a visual inspection for bent D-Sub pins and counterfeit markings. Next, we perform a continuity test on all four pins using a Fluke 115 to ensure there are no internal cold solder joints. We verify the 24V DC tolerance and check the housing for micro-cracks before sealing it in anti-static packaging. We can provide the test report if you ask.
Here is the reality check: Do not force the D-Sub connector. I once watched a junior tech cross-thread the mounting screws and crush the plastic housing, which internally shorted the diagnostic pin to ground and caused a permanent bus fault. Always align the connector perfectly before tightening. Also, remember the 70°C limit. If you are mounting this inside a control cabinet sitting at 65°C, you are living dangerously. Relocate it to a cooler zone or add ventilation.
Installation & Configuration Guide
- Pre-Installation: ⚠️ Lock out and tag out all main power. Wait a full 5 minutes for the SafetyBUS p capacitors to discharge. Verify 0V with a multimeter. Take high-resolution photos of the existing wiring and connector orientation before touching a single screw.
- Removal: Label every wire with a sharpie or tape. Release the mounting screws safely. Do not yank the module by the D-Sub cable.
- Installation: Copy the exact wiring layout from the old unit. This prevents 90% of startup communication failures. Slide the PILZ 311041 into position and hand-tighten the D-Sub screws, then finish with a screwdriver. Reconnect wires according to your photos.
- Power-On & Testing: Apply 24V DC control power first. Watch the SafetyBUS p LED boot sequence. Once stable, plug in your diagnostic tool and verify that the bus is communicating correctly without dropping packets.

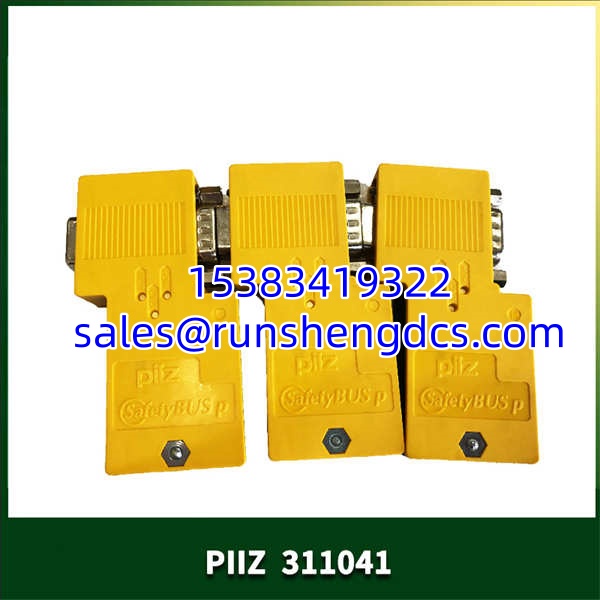

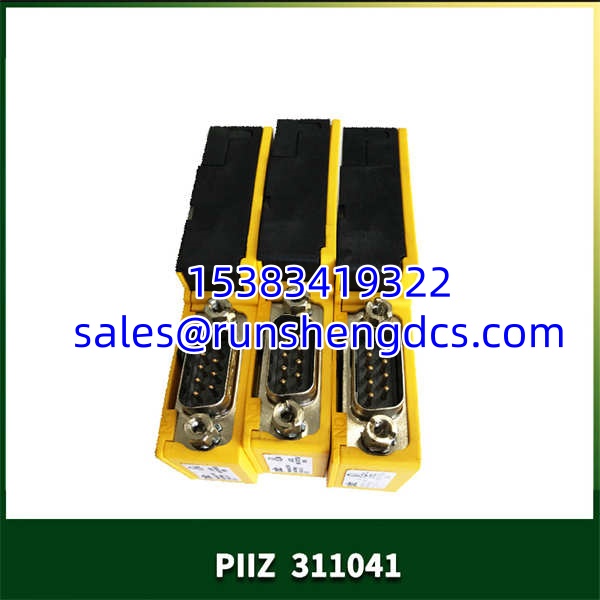

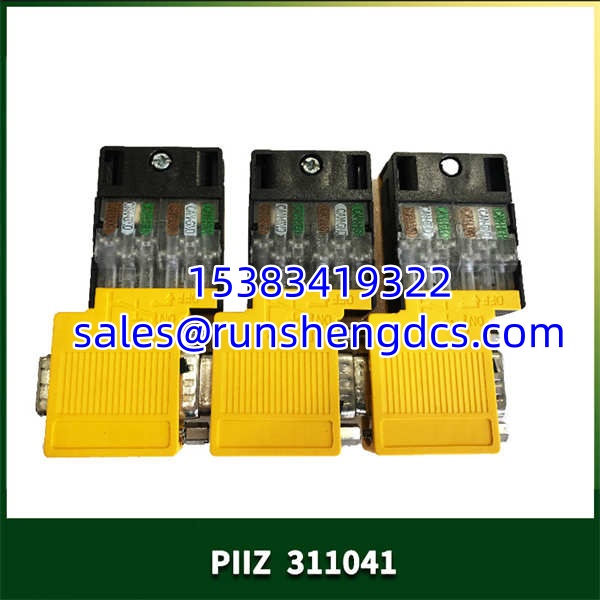

PILZ 311041
Compatible Replacement Models
| Replacement Model | Compatibility Tier | Notes |
|---|---|---|
| PILZ 311041 | ✅ Drop-in Replacement | Exact same hardware. Verify firmware revision matches your PLC logic. |
| PILZ 311040 | ⚠️ Software Compatible | Same hardware family (SUB-D4), but lacks the DIAG suffix. Requires parameter recompile. |
| PILZ 311054 | ⚠️ Software Compatible | PSSSBSUB-D1-DIAG variant. Requires logic recompile in the PLC. Estimated 2-4 hours of engineering labor. |
| Modern Safety Gateway | ❌ Hardware Mod Required | Requires new chassis, rewiring, and full system re-engineering. Not recommended for quick swaps. |
Frequently Asked Questions (FAQ)
Can I hot-swap this connector while the SafetyBUS p is powered?
Absolutely not. The PILZ 311041 requires a full power-down and capacitor discharge. Hot-swapping will cause a bus fault, potentially tripping the safety controller and shutting down the entire machine.
What is the difference between 311041 and 311040?
The 311041 is specifically the DIAG version (PSS SB SUB-D4-DIAG). While they share the same 24V DC, 0.2A, and 70°C specs, the 311041 is explicitly mapped for diagnostic tool integration. If your safety logic relies on diagnostic feedback, stick to the 311041.
Is this card compatible with older SafetyBUS p controllers?
Yes, it is designed for seamless integration with standard SafetyBUS p networks. However, ensure your diagnostic tool’s baud rate matches the bus configuration before plugging in. A mismatch will result in silent communication failure.
What happens if the D-Sub pins get corroded?
This connector is not rated for high-humidity environments without protection. If you see green corrosion on the pins, do not try to clean it with a pencil eraser. The contact resistance will cause intermittent bus faults. Replace the PILZ 311041 immediately.
How do I know if the connector is failing?
If the drive is running but your diagnostic tool shows a fault, check the physical layer. The PILZ 311041 supports a 24V DC interface, but a loose D-Sub screw will cause intermittent data loss. Always use a multimeter to check pin-to-pin continuity before replacing the module.
Does this module handle the main safety power?
No, the PILZ 311041 acts strictly as a diagnostic interface and signal bridge. It is rated for only 0.2A. Never attempt to power external relays or heavy loads through this connector, or you will melt the internal traces.
