Description
Key Technical Specifications
- Motor Type: Bipolar Stepper Motor
- Microstepping: Up to 50,000 steps/rev (Programmable)
- Control Interface: RS-232 / RS-485 / Parallel Step & Direction
- Operating Voltage: Typically 24VDC to 70VDC (Verify specific K-N rating)
- Current Rating: Continuous and Peak Phase Current (Check label)
- Feedback: Open Loop Stepper (Optional Encoder for Closed-Loop)
- I/O: Digital Inputs (Home, Limit, Enable) / Digital Outputs
- Protection: Overcurrent, Overtemperature, Undervoltage Lockout
- Mounting: DIN Rail or Panel Mount Bracket
- Temp Range: 0°C to +50°C Ambient (Derate above 40°C)
Product Introduction
Stepper motors are simple, but driving them smoothly without losing steps is an art. The PACIFIC 6445-001-K-N exists to bridge the gap between a PLC’s digital pulses and a motor’s physical torque. It’s a dedicated microstepping controller that takes the raw step/dir signals and synthesizes the sine/cosine waveforms needed for smooth motion. If this drive fails, your axis stops dead. No coasting. Just a hard halt.
Why keep this specific K-N variant in stock? The suffix often dictates the bus voltage and current limits. This drive was the workhorse for semiconductor wafer handling, pick-and-place, and precision packaging. Honest assessment: Pacific Scientific drives are tanks, but the electrolytic caps inside dry out after 15 years. If you’re buying surplus, budget for a recap or assume it has 50% of its original lifespan. Verify the dip-switch settings match your motor’s phase current before applying power.
Troubleshooting Quick Reference
- Motor Won’t Move / No LED: 75% chance it’s the enable circuit or 24V logic supply. Check the Enable input pin. Measure DC bus voltage at the drive terminals.
- Motor Stalls / Misses Steps: Current limit too low or acceleration too high. Check the peak current setting. Verify the motor wiring (A+, A-, B+, B-) isn’t swapped.
- Erratic Movement / Noise: Microstepping resolution mismatch. If the PLC sends 200 pulses/rev but the drive is set to 10,000 steps/rev, you’ll get 50x slower motion. Check the index resolution.
- Overtemp Fault: Drive is hot to touch. Check ambient temp. Verify the motor isn’t mechanically bound. Measure motor winding resistance (should be balanced phase-to-phase).
- Comm Failure (RS-232/485): Ground loop. Measure voltage between drive GND and PC GND. Should be <1V. Use an isolated USB-to-RS485 converter if on a laptop.

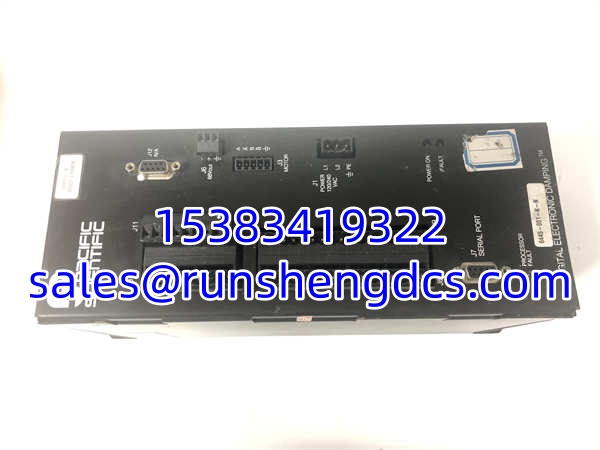

PACIFIC 6445-001-K-N
Application Scenarios & Pain Points
- Semiconductor Wafer Transfer: X-Y gantry systems needing micron-level repeatability. The 6445’s microstepping reduces vibration that could crack wafers. If the drive jitters, scrap rates spike.
- High-Speed Packaging: Label applicators running at 200+ cycles/min. Torque drops off at speed. The 6445’s current boosting keeps torque flat, but only if the motor is sized correctly.
- Legacy Textile Machinery: Yarn tensioners using stepper-driven rollers. Original drives are 20 years old. Finding a 6445-001-K-N is harder than finding a new machine.
Compatible Replacement Models
- ✅ Drop-in Replacement: 6445-001-K-N (Exact match). Check the full suffix. A “-K-N” might differ in bus voltage from a “-K-P”. Verify the label matches your power supply.
- ⚠️ Software Compatible: 6445-002-K-N or 6445-003-K-N. Same family, different current/voltage rating. Same command set. May require adjusting the current limit dip-switches or software config. Budget 2 hours for tuning.
- ❌ Hardware Incompatible: Pacific SC900 Series. Completely different architecture. Different pinout, different commands, different software. Do not buy this expecting a plug-and-play fix. You’ll need to rewire and rewrite the PLC logic.
