Description
Key Technical Specifications
- Measurement Range: 0 to 10 Torr
- Accuracy: ±0.5% of Full Scale
- Long-Term Stability: ±0.1% FS / Year
- Response Time: <2 ms
- Supply Voltage: 11-18 VDC
- Output Signal: 0-5 VDC (Linear)
- Max Overpressure: 40 psig
- Electrical Connection: Screw Terminal Isolation Strip
- Sensor Technology: Variable Capacitance (Gold-Plated Metal Diaphragm)
- Weight: 0.25 kg
- Operating Temp: Wide range (Verify specific suffix code for exact limits)
- Reference Side: Differential (Px vs Pr)
Product Introduction
Cleanroom HVAC systems don’t forgive drift. You need a sensor that won’t wander 2% after six months of 24/7 operation. The MKS 223BD-00001AAB is a Baratron-type capacitance manometer built exactly for this: measuring low differential pressure across filters, dampers, and fume hoods where standard piezo-resistive sensors fail due to zero-shift. It uses a pre-tensioned metal diaphragm that physically deflects against a fixed electrode, changing capacitance rather than relying on strain gauges that hate thermal cycling.
Why keep these in the cabinet? Stability. You get ±0.1% FS/year drift, meaning you aren’t recalibrating every quarter. Response sits under 2ms, so when a damper slams shut, the BMS sees it instantly, not 200ms later. It runs on 11-18 VDC, so it plays nice with legacy 12V supplies or modern 24V loops with a simple buck converter. Honestly, for sub-100 Torr measurements, nothing else touches this price-to-performance ratio without jumping to 627-series pricing.
Troubleshooting Quick Reference
| Fault | Cause | Relevancy | Quick Check | Fix |
|---|---|---|---|---|
| Output Stuck at 0V | Power Loss | 90% | Measure Terminals 1 & 2 for 11-18 VDC | Check 12V/24V PSU or fuse. |
| Reading Drifts High | Moisture in Reference Port | 75% | Inspect Pr (Reference) port for condensation | Purge with dry N2; replace desiccant. |
| Noisy Signal (>50mV) | Ground Loop | 60% | Measure AC voltage between Sensor GND & Earth | Isolate signal ground; use shielded cable. |
| Output Maxed (5V) | Overpressure / Short | 40% | Check Px port for blockage or >40 psig spike | Verify tubing isn’t kinked; check wiring. |
| Erratic Readings | Loose Screw Terminal | 85% | Torque check all 4 terminals | Retorque to spec; check for oxidized copper. |

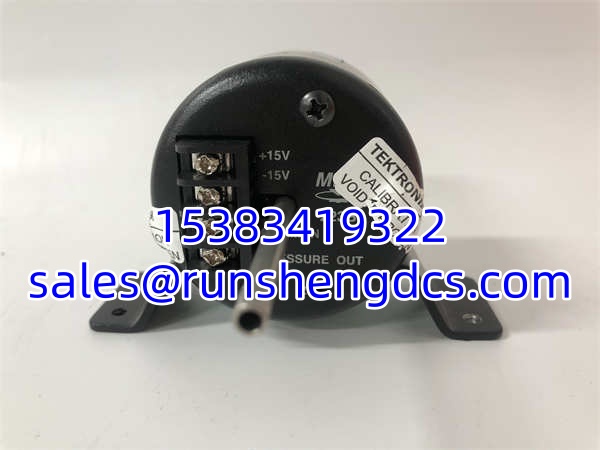

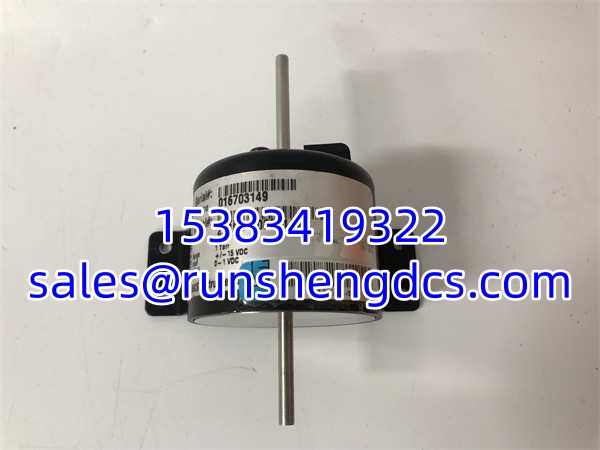

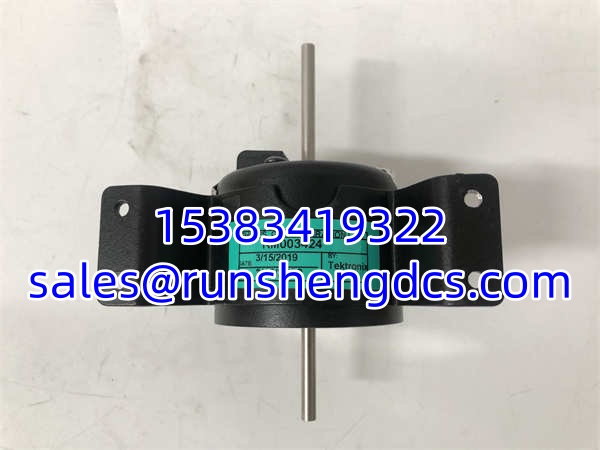

MKS 223BD-00001AAB
Application Scenarios & Pain Points
- Semiconductor Fab Ventilation: Exhaust duct static pressure must hold ±0.05″ WC. Standard silicon sensors drift with humidity spikes from wet benches; the 223BD ignores humidity entirely because it measures force, not resistance.
- Pharma Isolator Integrity: Differential pressure across glove ports needs <0.1% drift. A 0.5% error here fails FDA audit. This sensor’s metal diaphragm doesn’t creep like polymer-based alternatives.
- Data Center Hot Aisle Containment: Cold aisle pressure drops when CRAC units cycle. You need <2ms response to catch the transient before servers throttle. Piezo sensors are too slow; capacitance manometers aren’t.
Compatible Replacement Models
- ✅ Drop-in Replacement: MKS 223BD-00100AAB. Same 10 Torr range, same pinout, same 11-18 VDC supply. Just swap and verify zero. Usually $50-100 cheaper than the -00001AAB suffix.
- ⚠️ Software Compatible: MKS 622A01TDE (100 Torr). Better accuracy (0.25% vs 0.5%), but 10x range kills your resolution at low end. Requires BMS scaling change. Labor: ~30 mins for reconfig + calibration check.
- ❌ Hardware Incompatible: MKS 627B Series. Absolute pressure sensor, not differential. Different port configuration (VCR vs tube), different output (often 0-10V or RS232). Do not buy unless you’re redesigning the manifold.
