Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Analog Input Module |
| Brand / Series | METSO / Process Automation I/O |
| Part Number | IOP304 / 181503 |
| Supply Voltage | 24 VDC |
| Input Signal Types | 4–20 mA current, 0–10 V voltage |
| Resolution | 12-bit typical; up to 16-bit depending on variant |
| Operating Temperature | −40 °C to +85 °C |
| Measured Variables | Temperature, pressure, flow, level, and other analog process variables |
| Communication | Backplane interface to Metso controller (slot-dependent) |
| Mounting | Rack / backplane-mounted I/O module |
Product Introduction
The METSO IOP304 (part number 181503) is an analog input module used in Metso process automation systems to acquire and digitize field sensor signals. It accepts standard industrial analog inputs — 4–20 mA current loops and 0–10 V voltage signals — from transmitters measuring temperature, pressure, flow, level, and other continuously varying process variables. Operating from a 24 VDC supply and offering up to 16-bit resolution depending on variant, the module provides the control system with accurate, real-time process data for monitoring, regulation, and alarm management.
This module is typically found in legacy Metso automation installations across pulp and paper, mining, power, and general process industries. Because the IOP304 belongs to an older Metso I/O family, replacement units are primarily available as surplus or refurbished stock. For field deployment, the critical diligence items are revision matching (e.g., Rev D/E5), channel count verification, and confirming the module’s slot assignment and addressing match the existing Metso controller configuration.
QA/QC Transparency SOP
- Intake & Origin Verification — Confirm METSO branding, IOP304 model, part number 181503, revision code, and serial number. Photograph all labels and the backplane connector. Reject units with corrosion, cracked housings, or bent connector pins.
- Live Functional Testing — Install in a compatible Metso rack with 24 VDC supply. Verify power-up status indicators and backplane communication. Apply known test signals (4 mA, 12 mA, 20 mA and/or 0 V, 5 V, 10 V) and verify correct digital readings at the controller/HMI.
- Electrical Parameter Tests — Measure supply current at no-load and under loaded channel conditions. Check each channel for offset, span error, and drift. Flag any channel exceeding the expected resolution/accuracy specification.
- Configuration Verification — Read slot assignment, channel scaling, and engineering unit configuration from the controller. Archive the configuration. Do not reconfigure a surplus module without a verified project backup from the end user.
- Final QC & Anti-Static Packaging — Seal in ESD bags with desiccant. Include test summary, per-channel calibration readings, LED status photos, and configuration readout.
Field Engineer Gotchas
- Revision Mismatch — The IOP304 has multiple revisions (e.g., Rev D, E5). A different revision may have different channel counts, scaling, or backplane behavior. Fix: Match the revision code from the failed module before ordering. Warning: Do not assume “same model = same behavior.”
- Channel Scaling Errors — Even a correctly functioning module will report wrong values if the engineering unit scaling (4 mA = ? / 20 mA = ?) is incorrect in the controller. Fix: Verify scaling parameters in the controller configuration before blaming the hardware. War story: A plant replaced an and found all pressure readings doubled — the scaling had been reset during the swap.
- 24 VDC Supply Integrity — The module depends on a stable 24 VDC supply. A sagging or noisy supply can cause erratic readings across all channels. Fix: Measure supply voltage at the module terminals under load. Blunt advice: Check the power supply before replacing the module.
- Ground Loop Noise on 4–20 mA Loops — Unshielded or improperly grounded analog wiring introduces noise that appears as signal fluctuation. Fix: Verify shield grounding at one end only, and route signal cables away from power conductors.
- Backplane Connector Seating — A partially seated module can cause intermittent channel dropouts or complete communication loss. Fix: Remove power, reseat firmly, and verify mechanical locking.

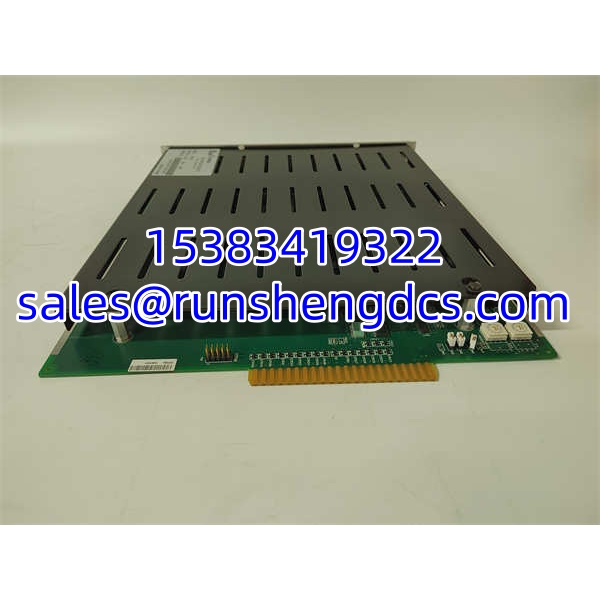

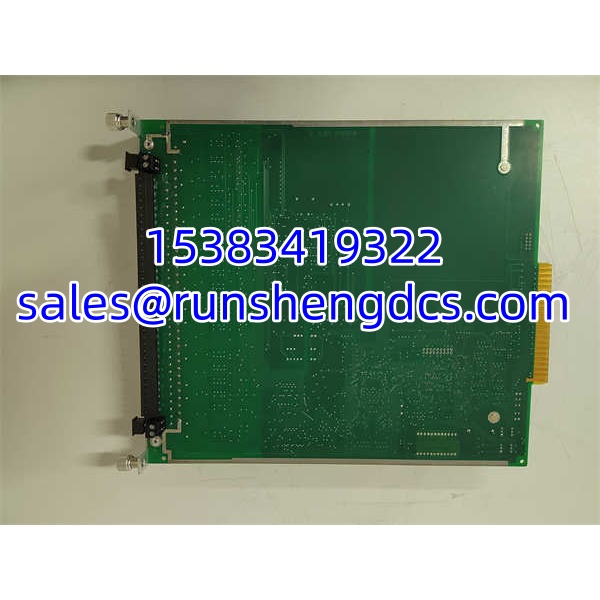

METSO IOP304
Application Scenarios
- Pulp and paper process monitoring — The acquires pressure, temperature, and flow signals from stock preparation and drying sections.
- Mining slurry control — Analog inputs monitor slurry density, flow rate, and pump discharge pressure in a Metso-controlled process loop.
- Power plant auxiliary systems — The module conditions 4–20 mA signals from level transmitters and pressure sensors in water treatment and feedwater systems.
- General process automation retrofit — Replacing a failed during a planned shutdown while preserving existing loop scaling and alarm configuration.
FAQ
A: It accepts 4–20 mA current and 0–10 V voltage analog inputs from field transmitters.
Q: What is the supply voltage?
A: 24 VDC.
Q: What is the resolution?
A: 12-bit typical, with some variants supporting up to 16-bit resolution.
Q: What is part number 181503?
A: It is the Metso part number associated with the analog input module.
A: Availability varies. Much of the market supply is surplus or refurbished. Confirm condition, revision, and compatibility with your installed Metso system before purchase.
Q: What operating temperature range does it support?
A: −40 °C to +85 °C.
Q: Can I substitute it with any Metso analog input module?
A: No. The slot configuration, channel count, resolution, and controller compatibility must match. Verify against the existing module nameplate and the system configuration before replacement.
