MERAK 681K10078 | Industrial Controller Module for Process Control Systems

Description

Key Technical Specifications

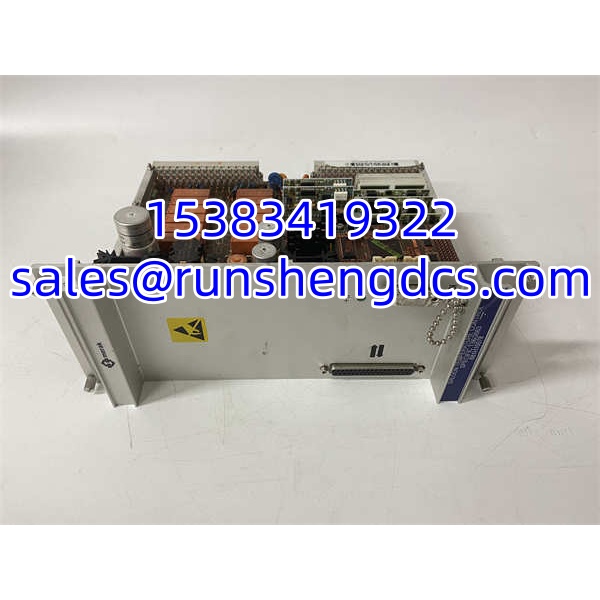

Product Introduction

In a distributed control system, the controller module is the single point of logic integrity — if it fails, the entire process segment loses coordination. The MERAK 681K10078 is a central processing controller designed for industrial automation environments, combining a super-scalar RISC CPU with integrated Ethernet coprocessing capability across two dedicated slots (E1/E2). Its architecture includes battery-backed RAM with write protection, ensuring that user programs survive power interruptions, while a 16 Kbit serial EEPROM stores hardware configuration and diagnostic data for rapid restart after a supply fault.

This controller is deployed in process industries where deterministic execution and communication reliability are critical — continuous production lines, utility monitoring systems, and batch process applications. The Flash-EPROM firmware storage allows software version upgrades without hardware replacement, and the independent watchdog timer protects the operating system from blocking faults. Hot-swappable fieldbus module support means I/O expansion or replacement can occur without a full system shutdown. For procurement teams, the key diligence items are firmware version matching, application program backup, and confirming the Ethernet/fieldbus slot configuration aligns with the installed rack.

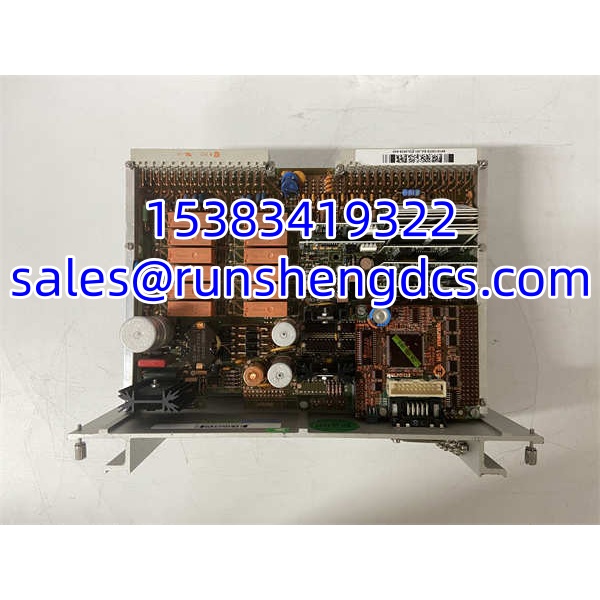

MERAK MERAK681K10078

QA/QC Transparency SOP

1. Intake & Origin Verification — Confirm MERAK branding, 681K10078 model designation, serial number, and manufacturing date. Photograph all labels, the backplane connector, and the Ethernet/fieldbus slot positions. Reject units with corrosion, cracked housings, or damaged connectors.
2. Live Functional Testing — Install in a compatible MERAK rack with proper 115–230 VAC supply. Verify power-up LED sequence, CPU status indicators, and Ethernet module recognition in slots E1/E2. Confirm the module reaches a stable “run” state without watchdog trips or temperature alarms.
3. Electrical Parameter Tests — Measure supply current draw at no-load and under communication load. Verify input voltage tolerance (90–260 VAC range) and polarity protection. Check backup battery voltage for RAM retention. Flag any unit with abnormal current consumption or battery depletion.
4. Firmware/Config Verification — Read firmware revision, hardware configuration from the 16 Kbit EEPROM, and diagnostic history including runtime counters and overtemperature events. Archive the full configuration dump. Do not reprogram a surplus controller without a verified application backup from the end user.
5. Final QC & Anti-Static Packaging — Seal in ESD bags with desiccant. Include test summary, firmware revision, LED status photos, battery voltage reading, and configuration readout. No generic “tested OK” label without logged data.

Field Engineer Gotchas

• Firmware/Application Mismatch — A 681K10078 with a different firmware revision or application program will either refuse to sync with the rack or execute incorrect control logic. Fix: Read the firmware and application version from the existing module before removal. Warning: Never flash a controller in a live system without a validated backup and management-of-change approval.
• Backup Battery Depletion — The RAM write-protection and configuration retention depend on the backup battery (located on the Ethernet module in some variants). A depleted battery means the application program is lost on power-down. Fix: Measure battery voltage during intake testing. War story: A plant replaced a controller after a power outage only to find the application was gone — the backup battery had been dead for months, and nobody noticed until the next shutdown.
• Ethernet Slot Configuration — Slots E1 and E2 support simultaneous Ethernet modules, but the system configuration must match the physical installation. A module inserted in the wrong slot or an unconfigured Ethernet port will not communicate. Fix: Verify the slot assignment in the engineering software matches the physical rack.
• Hot-Swap Timing — While fieldbus modules support hot insertion, the controller must recognize and configure the new module automatically. A module that fails to enumerate may indicate a backplane communication fault rather than a module failure. Fix: Check backplane connector seating and verify the module address field is properly set.
• Temperature Monitoring False Alarms — The controller monitors internal CPU and module temperature, triggering an LED alarm if thresholds are exceeded. A clogged ventilation path or failed cooling fan can cause nuisance trips. Fix: Verify cabinet airflow and clean ventilation filters before replacing the module.

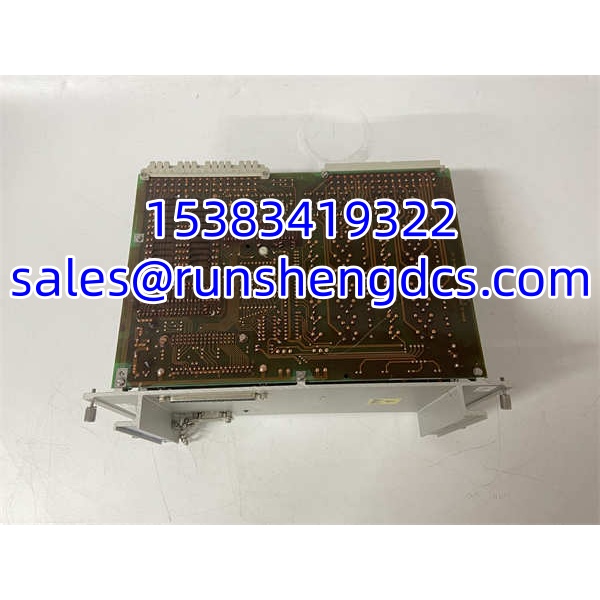

MERAK MERAK681K10078

Application Scenarios

• Process plant controller replacement — A failed 681K10078 in a DCS rack must be replaced during a planned turnaround while preserving the application program and Ethernet communication configuration.
• Utility monitoring system upgrade — The controller manages distributed I/O via fieldbus modules, with Ethernet ports providing upstream communication to the SCADA system.
• Batch process automation — The 681K10078 executes sequenced batch logic with RAM-backed program retention ensuring recipe integrity across power cycles.
• Remote station controller — Ethernet coprocessing enables dual-network redundancy for unmanned sites where communication reliability is critical.

FAQ

Q: Is the 681K10078 compatible with the 681H10078?
A: They belong to the same MERAK controller family but are different part numbers. Do not substitute one for the other without verifying slot compatibility, firmware, and application program alignment.

Q: What processor does it use?
A: A super-scalar RISC CPU with Ethernet coprocessing capability. Exact clock speed and instruction set details should be confirmed from the OEM datasheet.

Q: Can I hot-swap fieldbus modules with this controller?
A: Yes. The controller supports hot insertion and removal of fieldbus modules, with automatic recognition of newly installed modules.

Q: How is the application program retained during power loss?
A: RAM is protected by write protection and a backup battery. The hardware configuration is stored in a 16 Kbit serial EEPROM.

Q: What communication interfaces does it support?
A: Ethernet (via slots E1/E2), fieldbus (hot-swappable modules), and RS-232 serial communication.

Q: Can the firmware be upgraded?
A: Yes. Firmware is stored in Flash-EPROM, supporting version upgrades without hardware replacement.

Q: Is this controller still in production?
A: Availability varies. Much of the market supply is surplus or refurbished. Confirm lead times, condition, and firmware version with your supplier, and always verify compatibility with your installed MERAK system before purchase.
