Description
Key Technical Specifications
- Model Number: 9852 (T9852)
- Manufacturer: ICS TRIPLEX / Rockwell Automation
- Series: Triplex Process Safety System
- Module Type: Digital Output (DO)
- Channel Count: 40 Channels
- Channel Architecture: Dual, Commoned
- Operating Voltage: 24VDC / 48VDC
- Safety Rating: SIL 3 / TMR Architecture
- Mounting Style: Control/ Rack Mount
- Environmental Range: 0°C to 60°C, 95% Humidity (Non-condensing)
ICS TRIPLEX 9852
Functional Role & Application Analysis
The ICS TRIPLEX 9852 is a critical digital output module within the Triplex process safety architecture. It is engineered to drive final control elements—solenoid valves, motor starters, and alarm indicators—during emergency shutdown (ESD) events. This module solves the challenge of maintaining deterministic output response while providing the diagnostic coverage required for high-integrity safety applications.
Typical use cases include:
- Emergency Shutdown Systems: Driving high-integrity solenoid valves in oil and gas processing facilities during critical safety events.
- Fire & Gas Detection: Activating audible and visual alarms when hazardous gas thresholds are exceeded.
- Legacy Safety System Maintenance: Replacing failed DO cards in aging Triplex racks without migrating to a new safety platform.
Our Quality Standard & Testing Process
We understand that the cost of an unreliable safety part is far greater than its purchase price. A failed output module during an ESD event is catastrophic. We have established a rigorous, multi-stage testing process to ensure every ICS TRIPLEX 9852 we ship is 100% functional.
- Visual & Component Inspection: All boards undergo professional cleaning and microscopic inspection to ensure no physical damage, capacitor leakage, or compromised solder joints.
- Live System Test: The module is installed in a live Triplex test rack and run for 24-48 hours to verify continuous operation, thermal stability, and backplane communication.
- Full-Function Diagnostics: We simulate digital output commands across all 40 channels to verify switching accuracy, response time, and diagnostic feedback integrity.
- Warranty Backing: Only parts that pass all diagnostic tests are approved for shipment and backed by our full 12-month warranty.

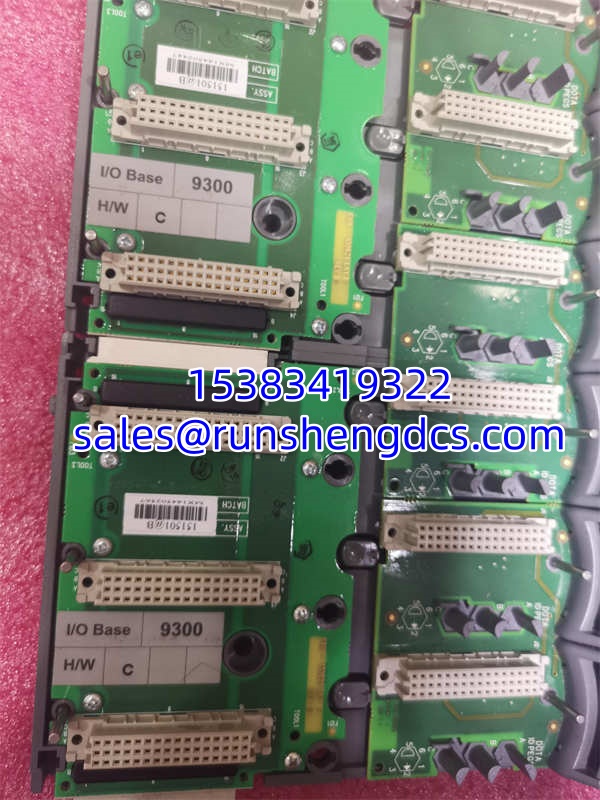

ICS TRIPLEX 9852
Compatibility & Migration Paths
To ensure this ICS TRIPLEX 9852 is 100% compatible with your system, you must check these key compatibility points. Failure to verify this is a common project risk that leads to safety system downtime.
- Voltage Configuration: Confirm your system operates at 24VDC or 48VDC. The 9852 supports both, but the field power supply must match the configured voltage range.
- Channel Architecture: The 9852 is a dual commoned output module. Verify your existing wiring and termination assembly matches this configuration before replacement.
- Firmware Compatibility: Ensure your Triplex processor firmware supports this specific DO module revision. Older firmware may not recognize newer hardware revisions.
- Get Expert Help: Unsure about your system configuration or voltage requirements? Contact our technical team today for a free compatibility check.
