Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 51401583-100 |
| Model | EPNI — Enhanced Process Network Interface |
| Product Type | NIM main logic board / network interface card |
| System Fit | Honeywell TDC 3000 / TPS DCS |
| Primary Function | Bridges LCN and UCN within a NIM node |
| Associated Hardware | NIM modem I/O card for complete NIM assembly |
| Power Consumption | 6.0 W (as listed by distributors) |
| Dimensions | 12.7 × 7.6 × 3.8 cm / 5.0 × 3.0 × 1.5 in |
| Weight | 0.2 kg / 0.5 lb |
| Certifications | CE, FM, CSA (as listed) |
| Availability | Surplus / refurbished / new old stock |
Product Introduction
The Honeywell 51401583-100 EPNI is the Enhanced Process Network Interface card used as the main logic board inside a Honeywell Network Interface Module. In TDC 3000 and TPS architectures, the NIM sits between the Local Control Network, which carries operator stations, history modules, and application nodes, and the Universal Control Network, which connects controllers such as HPM and LM. The EPNI card provides the core processing and network-bridging function that allows LCN nodes to communicate with UCN control devices.
This is not a general-purpose PLC communication module. It belongs specifically to the Honeywell NIM assembly and normally works together with a NIM modem I/O card to form a complete NIM node. Because it sits in the DCS backbone network path, replacement decisions should be based on the existing NIM configuration, rack type, and network role — not just the part number.
QA/QC Transparency SOP
- Intake & Origin Verification: Confirm Honeywell branding, part number 51401583-100, EPNI designation, and serial/revision data. Inspect edge connectors, PCB condition, and mounting hardware.
- Live Functional Testing: Install into a compatible NIM chassis or verified TDC 3000/TPS test rack. Confirm NIM boot, LCN node recognition, and UCN communication status.
- Electrical Parameter Tests: Verify supply voltage, power draw, connector continuity, and insulation. Check for abnormal heating or intermittent communication during extended operation.
- Network/Config Verification: Confirm NIM node address, LCN/UCN mapping, modem I/O card pairing, and redundant NIM behavior if applicable. Back up NIM configuration before returning to service.
- Final QC & Anti-Static Packaging: Label with part number, test date, NIM slot reference, and pass/fail status. Pack in anti-static bags with edge-connector protection and rigid outer packaging.
Field Engineer Gotchas
- EPNI is not a standalone network card. It is the main logic board inside a NIM. Installing it without the correct NIM chassis, modem I/O card, and backplane interface will not restore NIM function.
- LCN/UCN role is critical. If the NIM node address, network cabling, or modem I/O card is mismatched, the EPNI may power up but still fail to bridge LCN and UCN traffic.
- Do not assume drop-in compatibility across NIM revisions. Honeywell NIM hardware has evolved across TDC 3000 and TPS generations. Verify the existing NIM model and firmware before substitution.
- Redundant NIM pairs require careful handling. Replacing one EPNI in a redundant NIM pair may require configuration synchronization and controlled switchover to avoid network disruption.
- Surplus listings may omit NIM context. Many sellers list 51401583-100 simply as an “interface module.” Require confirmation that it is the EPNI main logic board for a NIM, not a generic communication card.

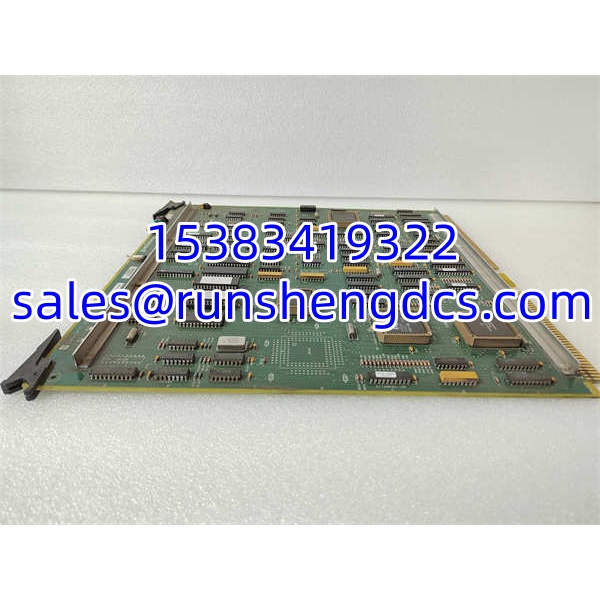

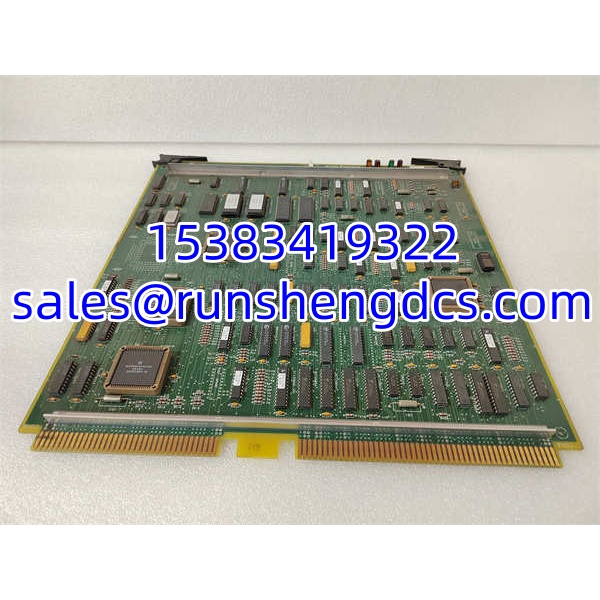

HONEYWELL 51401583-100 EPNI
Application Scenarios
- TDC 3000 NIM restoration. Replaces a failed EPNI main logic board in a legacy NIM that bridges LCM operator stations to UCN controllers.
- TPS system network maintenance. Supports continued LCN-to-UCN communication where the original NIM logic card has developed intermittent faults.
- Redundant NIM spare pool. Provides a verified EPNI replacement for plants running dual NIM nodes with long OEM lead times.
- Brownfield DCS lifecycle support. Keeps legacy Honeywell TDC 3000/TPS networks operational during phased migration to Experion PKS.
FAQ
What is the Honeywell 51401583-100 EPNI?
It is the Enhanced Process Network Interface card that serves as the main logic board for a Honeywell NIM in TDC 3000/TPS systems.
What does EPNI do?
It bridges the Local Control Network and the Universal Control Network inside a NIM node, allowing operator stations and applications to communicate with UCN controllers.
Can I use it as a general communication module?
No. It is specific to the Honeywell NIM assembly and is not a generic PLC or Ethernet communication card.
Does it work alone?
No. It normally operates with a NIM modem I/O card to form a complete NIM node.
Is this still available new from Honeywell?
Treat availability as legacy/surplus unless confirmed by an authorized Honeywell distributor. Most market units are refurbished or new old stock.
What should I verify before buying?
Confirm the part number 51401583-100, EPNI designation, NIM compatibility, associated modem I/O card, and whether the supplier has functionally tested LCN/UCN communication.
