Description
Key Technical Specifications
- Form Factor: 19-inch Wide, 3U High
- Wiring Orientation: Rear Field Wiring
- Chamber Design: Dual Independent Chambers
- EMI Protection: Sealed Control Card Chamber
- Backplane: Integrated Signal Routing & Power Distribution
- Operating Temp: 0°C to 70°C
- Humidity: 0-90% Non-Condensing
- Weight: 0.165 kg (Card/Module weight only)
- Certification: CE
- Installation: Control Room / Panel Mount
- Voltage: 18V to 32V DC (via input card)
Product Introduction

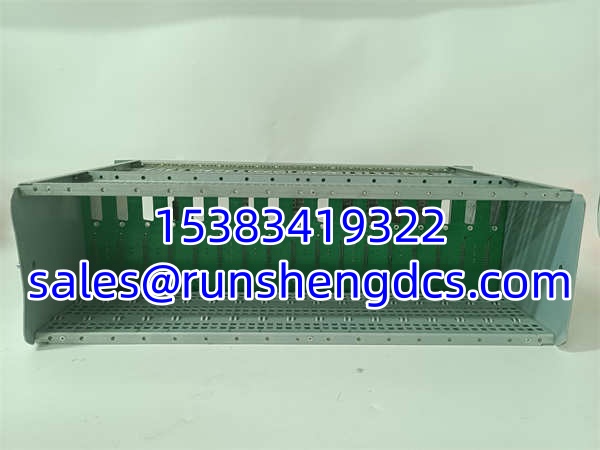

You’re staring at a melted backplane trace because someone forced a front-wired card into a rear-wired slot. The 05701-A-0511 is the physical backbone of a System 57 gas detection panel—a 19-inch, 3U tall chassis with a sealed chamber for control cards and a separate chamber for relay/interface cards. It’s not a smart module; it’s a precision-machined cage that keeps EMI out and heat in check while routing power and signals through a custom backplane.
Why hunt for this specific part number? Because the “0511” suffix means rear wiring. Swap it for a “0501” (front wiring) and your field cables won’t reach. You get two independent chambers—one sealed against RFI for the brains, one open for the muscle. Honestly, for a 20-year-old gas panel, this chassis is often the only thing holding the system together. Just don’t expect it to come with cards; it’s just the frame.
Troubleshooting Quick Reference
- Fault: Backplane Short / Burnt Traces | Cause: Metal Debris or Forced Card Insertion | Relevancy: 90% | Quick Check: Visual inspection with flashlight; smell for ozone | Fix: Clean with contact cleaner; replace 05701-A-0511 if traces are lifted
- Fault: Intermittent Comm Loss | Cause: Backplane Connector Oxidation | Relevancy: 80% | Quick Check: Reseat all cards; check for green corrosion | Fix: Clean pins with fiberglass pen; apply dielectric grease
- Fault: EMI Noise on Analog Signals | Cause: Sealed Chamber Gasket Failure | Relevancy: 70% | Quick Check: Inspect chamber seal for cracks/gaps | Fix: Replace gasket; verify ground strap between chambers
- Fault: Cards Won’t Seat Fully | Cause: Bent Backplane Pins or Warped Frame | Relevancy: 60% | Quick Check: Shine light through pin holes; check for dents | Fix: Straighten pins carefully; replace chassis if frame is bent

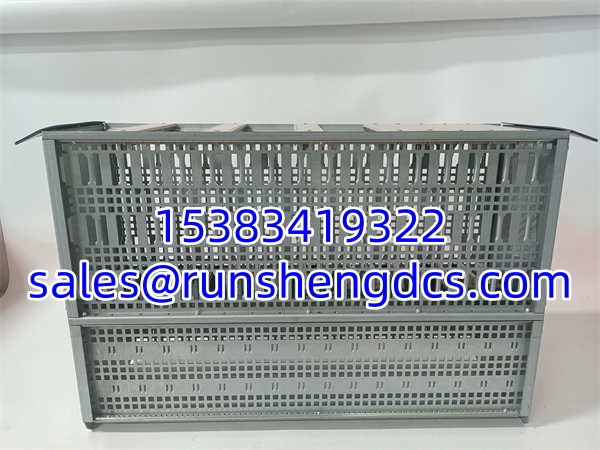

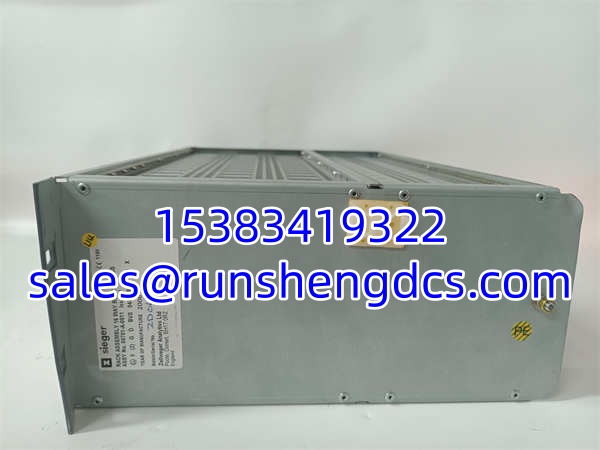

Honeywell 05701-A-0511
Application Scenarios & Pain Points
- Offshore Platforms: Salt spray eats backplane connectors; sealed chamber helps but rear wiring is vulnerable at the gland plate.
- Refinery Analyzer Shelters: Vibration from nearby compressors loosens backplane mounting screws over years.
- Legacy Water Plants: 25-year-old chassis has warped from heat cycles; new cards bind during insertion.
Compatible Replacement Models
- ✅ Drop-in Replacement: 05701-A-0511 (New Surplus). Same rear wiring, same 3U height, same dual-chamber design. Cost is high (3,400–8,600); verify date code matches existing panel.
- ⚠️ Software Compatible: 05701-A-0512 (Half-Width Rear Wiring). Same rear wiring, but only 9.5″ wide. Labor: 4-8 hours to reconfigure panel layout; requires new mounting brackets.
- ❌ Hardware Incompatible: 05701-A-0501 (Front Wiring) or 05701-A-0502 (Half-Width Front). Different wiring orientation, different cable glands. Do not buy unless rewiring the entire panel; field cables won’t reach.
