Description
Key Technical Specifications
• System Compatibility: Honeywell Sieger System 5701, 5704, 5704F
• Card Format: 3U Eurocard (1″ / 2.54cm width)
• Mounting Position: Rightmost slot in 19” sub-rack
• Interface: Front-panel LCD display and tactile keypad
• Primary Function: Channel setup, alarm setpoints, calibration
• Data Storage: Non-volatile memory for system parameters
• Communication: Serial link to backplane for PC software
• Operating Environment: Indoor, non-hazardous control room
• Power Draw: Sourced from System 57 backplane (24VDC)
• Maintenance: Requires qualified personnel for calibration
Product Introduction
Gas detection systems are only as good as their configuration. The Honeywell 05701-A-0361 serves as the dedicated Engineering Card for the Sieger System 5701 family. Without this module sitting in the rightmost slot of your rack, you cannot adjust alarm setpoints, perform sensor calibrations, or modify relay logic. It acts as the local interface for safety-critical parameters, allowing technicians to bypass the DCS for on-the-spot maintenance.
Why does this specific card matter? Legacy gas panels are notoriously difficult to support when the original engineering tool fails. This card bridges the gap between field hardware and PC-based configuration software. Bottom line—if you lose this card, your gas panel becomes a static brick. You can monitor alarms, but you cannot legally or safely recalibrate sensors. Treat it as a critical spare and keep a sealed unit in your MRO cage.
Troubleshooting Quick Reference
• Blank LCD / No Power | Cause: Backplane power failure or unseated card | Relevancy: 90% | Quick Check: Verify 24VDC at backplane pins | Fix: Reseat card or check rack DC input
• Keypad Unresponsive | Cause: Membrane failure or ribbon cable damage | Relevancy: 85% | Quick Check: Press keys firmly; check for physical wear | Fix: Replace membrane overlay or reseat internal ribbon
• Cannot Save Parameters | Cause: Corrupted EEPROM or write-protect active | Relevancy: 80% | Quick Check: Check for physical write-protect jumper | Fix: Power cycle or replace card (EEPROM wear)
• Comm Loss to PC Software | Cause: Bad serial cable or backplane connector issue | Relevancy: 75% | Quick Check: Verify serial cable pinout and PC COM port | Fix: Replace RS232 cable or test with known-good card
• Erratic Readings During Config | Cause: Ground loop or backplane noise | Relevancy: 70% | Quick Check: Measure backplane ground reference | Fix: Check rack grounding and separate signal cables

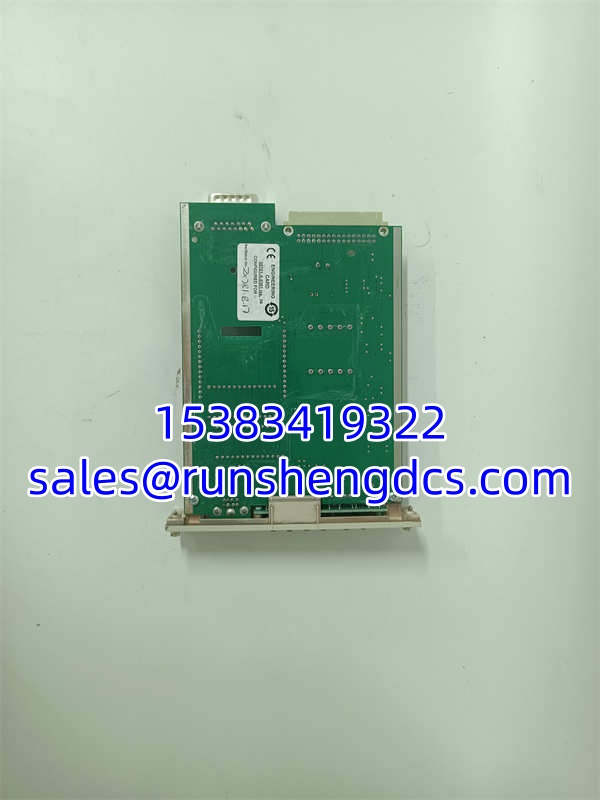

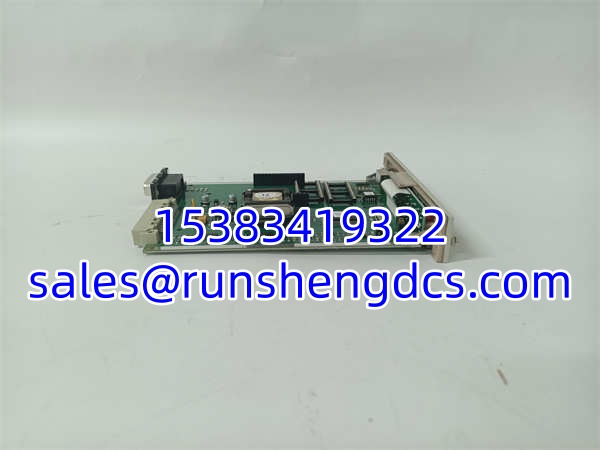

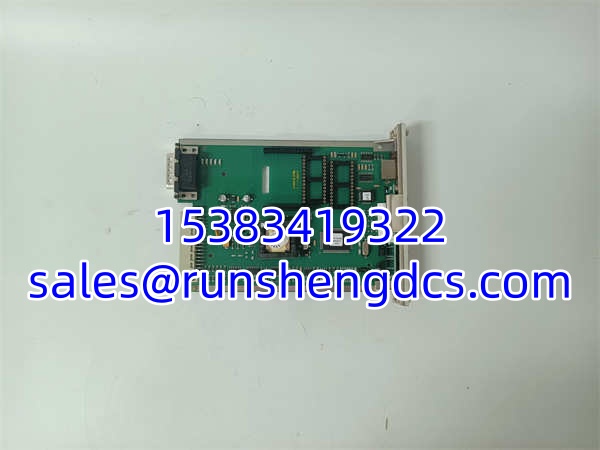

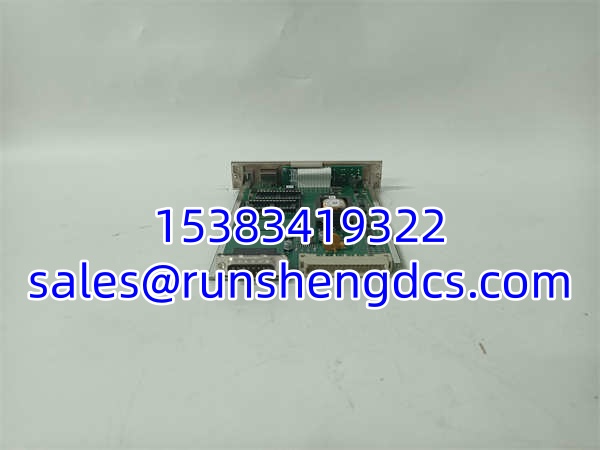

Honeywell 05701-A-0361
Application Scenarios & Pain Points
• Offshore Oil Platforms: Harsh marine environments degrade membrane switches over time. Salt spray and humidity cause keypad failures, making on-the-spot gas sensor calibration impossible without a spare card.
• Chemical Processing Plants: Strict safety audits require documented calibration. A failed engineering card halts compliance testing, forcing operators to rely on outdated setpoints until a replacement arrives.
• Power Generation Facilities: High vibration from turbines loosens backplane connections. Intermittent contact causes the LCD to flicker during critical calibration routines, leading to aborted procedures.
Compatible Replacement Models
• ✅ Drop-in Replacement: Honeywell 05701-A-0361 (Exact Match). Same footprint, same backplane connector, same firmware baseline. Cost is high (8k-12k) due to discontinued status and safety-critical demand.
• ⚠️ Software Compatible: Honeywell 05701-A-0361 Rev B/C. Same physical card, newer EEPROM. Requires verifying firmware compatibility with existing System 5701 control cards. Plan 2 hours for parameter migration via PC software.
• ❌ Hardware Incompatible: Honeywell 05701-A-0302 (Channel Control Card). Do not attempt. This is a sensor input card, not an engineering tool. Total loss of configuration capability if swapped. Upgrade to modern Experion or System 5700 series requires full rack replacement.
