Description
Key Technical Specifications
- Input Type: 4-20mA (Sensor Drive Module required)
- Supply Voltage: 18V to 32V DC
- Power Consumption: 3.25W (4-20mA mode)
- Display: Backlit LCD with Bar Graph & Peak Reading
- Alarm Indicators: Red (A1, A2, A3), Yellow (Fault/Inhibit), Green (Power)
- Operating Temp: -5°C to +55°C
- Storage Temp: -25°C to +55°C
- Humidity: 20-90% RH (non-condensing)
- Dimensions: 3U High x 25mm Wide
- Weight: 165g
- Electronic Drift: <2% per 6 months
- Linearity: 1% FSD
Product Introduction
Gas detection isn’t a “set and forget” system. The 05701-A-0351 is the brain for one specific sensor in the Honeywell System 57 rack. It takes the raw 4-20mA signal, compares it against your configured alarm limits, and drives the front panel LEDs and relays. If this card dies, that specific gas point goes blind. No redundant path. Just a silent failure waiting to happen.
Why keep this in stock? It’s a dedicated hardware solution. Unlike a generic PLC analog input, this card has built-in gas-specific logic: STEL/TWA calculations, rate-of-change alarms, and sensor line resistance monitoring. Honest assessment: the 05701-A-0351 suffix typically denotes the 4-20mA variant (vs. catalytic bridge). Verify your sensor type before ordering. A catalytic card won’t read a 4-20mA transmitter, and vice versa.
Troubleshooting Quick Reference
- No Display / No Power LED: 80% chance it’s the backplane power. Measure 24VDC at the card edge connector. Check the rack power supply fuse.
- Yellow Fault LED Solid: Sensor open circuit or short. Measure loop resistance at the card terminals. Should be <40Ω total (including cable). Check for water in the sensor head.
- LCD Shows “—-” or Err: Sensor drive module not seated or failed. Reseat the plug-in module on the back of the card. Swap with a known good drive module.
- Alarm Won’t Reset: Inhibit input active or latched fault. Check remote inhibit wiring. Use the Engineering Card (05701-A-0361) to force reset if the front button fails.
- Drifting Readings: Condensation in the sensor or failing electronics. Check humidity levels. If ambient is fine, replace the card. Drift >2%/6 months = end of life.

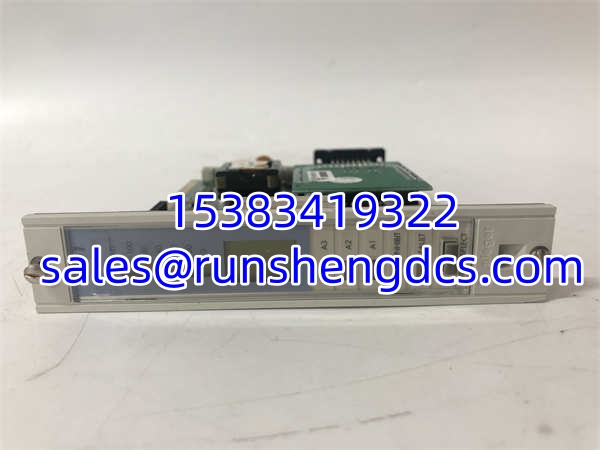

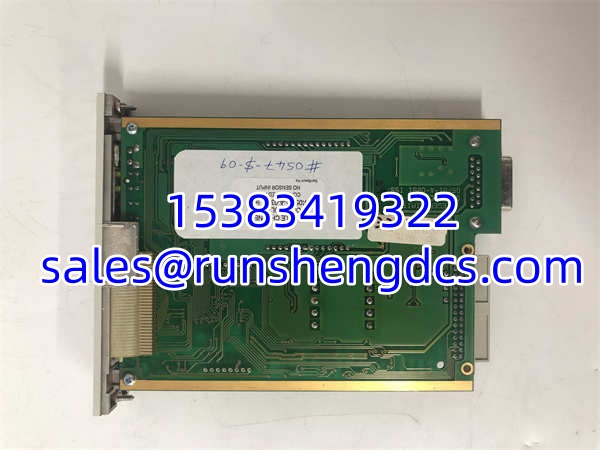

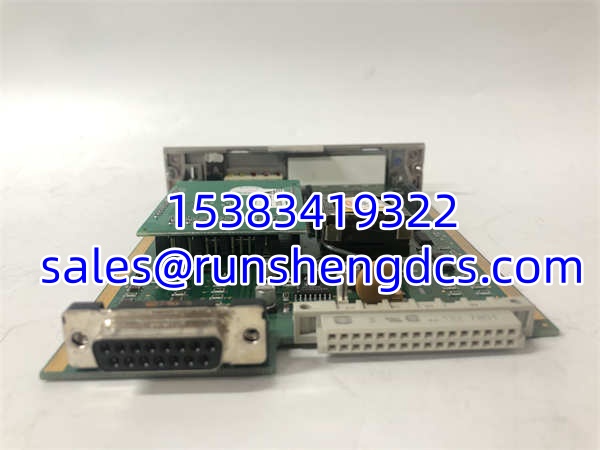

Honeywell 05701-A-0351
Application Scenarios & Pain Points
- Chemical Storage Tanks: Monitoring VOCs in explosive atmospheres. The 4-20mA input allows long cable runs to the sensor, but ground loops can kill the card. Isolate the shield at the rack end only.
- Wastewater Treatment Plants: H2S detection in wet wells. High humidity kills contacts. The 20-90% RH spec is a maximum, not a recommendation. If you’re at 85% RH, expect failures in 12 months, not 5 years.
- Pharma Cleanrooms: Ozone monitoring. Low-level detection requires stable electronics. The 1% linearity is critical here. If calibration fails repeatedly, the card’s internal reference is drifting.
Compatible Replacement Models
- ✅ Drop-in Replacement: 05701-A-0351 (Exact match). 05701-A-0301 is the base 4-20mA card; 0351 may include specific regional or firmware revisions. Functionally identical. No config changes.
- ⚠️ Software Compatible: 05701-A-0550. Newer revision of the single-channel card. Same form factor, same Engineering Card interface. May require firmware update via the Engineering Card. Budget 1 hour for validation.
- ❌ Hardware Incompatible: 05701-A-0302 (Catalytic Bridge). Different input circuitry. Will not read 4-20mA sensors. Do not buy this expecting a drop-in fix for a 4-20mA loop.
