Description
Key Technical Specifications
- Model Number: 05701-A-0301
- Manufacturer: Honeywell. Series: 57 System Gas Detection
- Module Type: Single-channel gas detection control card
- Supply Voltage: 18–32 VDC nominal 24 VDC
- Power Consumption: 3.75 W typical (catalytic sensor); 3.25 W typical (4–20mA mode)
- Sensor Types: Catalytic bead, electrochemical toxic gas sensors
- Analog Output: Isolated 0–20mA or 4–20mA monitor signal, configurable via engineering card
- Alarm Handling: A1/A2/A3 alarm levels, relay outputs with configurable on/off delay, remote inhibit/reset input

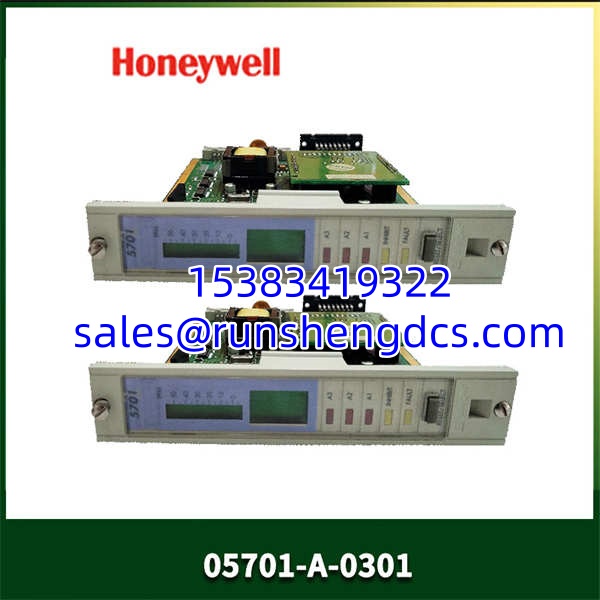

- Local Interface: Front-panel LED status for alarms, fault, inhibit; single reset/select button
- Communication: Modbus serial option when paired with dedicated engineering card
- Mounting: 3U card for 57-series 19-inch subrack, front/rear wiring options
- Drift Performance: Electronic drift less than ±2% full scale over six months
Functional Role & Application Analysis
The 05701-A-0301 is not a DCS I/O card. It is the dedicated channel controller inside Honeywell’s older 57 gas detection rack. It powers the sensor, measures the gas signal, runs alarm thresholds, and drives both local indication and the analog output to your control system. Many sites misdiagnose sensor drift as a card fault, or swap cards without matching the sensor calibration range. That wastes downtime and can leave the detector uncalibrated after replacement.
It operates one sensor per card. The rack can mix multiple cards to build multi-point gas coverage, but each channel remains independent. That isolation helps limit fault propagation, but it also means every spare must be validated against the specific gas type and range it will run. The analog output is isolated, which helps avoid ground loops in hazardous-area wiring, but incorrect jumpers can disable that isolation.
Typical use cases:
- Flammable and toxic gas monitoring in refineries, chemical plants and compressor buildings
- Legacy 57 rack maintenance where original cards show intermittent fault codes or unresponsive channels
- Spare pool build for sites still running 57-series before migrating to modern Honeywell Analytics systems
- Safety verification upgrades where existing channel cards need replacement during turnarounds
Our Quality Standard & Testing Process
We understand that a gas detection card with hidden drift or broken fault detection does not just generate nuisance alarms. It can fail to report a hazardous concentration. Every 05701-A-0301 we ship follows a gas-detection-specific checkout, not only basic power-up.
- Visual & Component Inspection: We inspect edge connector pins, front-panel LEDs, jumper settings and trace condition. Bent pins, corrosion or burned components reject the unit immediately.
- Power Rail Stability Test: We apply 18 VDC and 32 VDC supply extremes, check current draw against published limits and watch for warm spots.
- Input and Output Calibration Bench: We simulate sensor signals across the operating range and verify 4–20mA output linearity, alarm trip points and fault flagging.
- Relay and Inhibit Logic Check: We trigger remote inhibit and reset inputs to confirm relay timing and LED behavior match published logic.
- Warranty Backing: Only cards passing all channel diagnostics ship with our 12-month warranty. We retain test records for traceability.

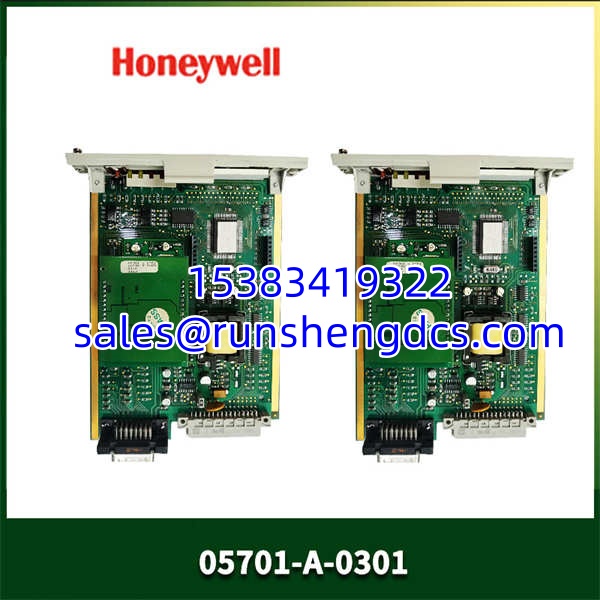

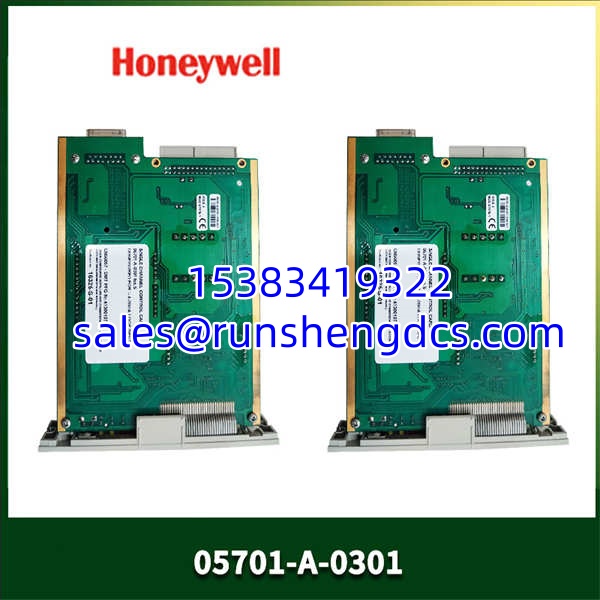

Honeywell 05701-A-0301
Compatibility & Migration Paths
To avoid a site shutdown or blind gas channel, you must confirm rack, sensor and configuration before ordering. Physical fit does not guarantee correct operation.
- Rack Backplane Family: This card belongs to the 57 system. It will not plug-and-play with newer Honeywell Analytics racks or Experion I/O. Confirm your subrack model and wiring scheme.
- Sensor Matching: Catalytic versus electrochemical sensors require different jumper settings and calibration. A card calibrated for LEL will not read toxic gas correctly without rework and calibration.
- Engineering Card Dependency: Modbus communication and some configuration options need the matching engineering card. Without it, you may not be able to adjust alarm delays or output mode.
- Replacement & Alternatives: 05701-A-0301 is a legacy single-channel card. If you are replacing multiple channels or adding new points, evaluate current gas detection transmitters instead of expanding the 57 rack.
- Get Expert Help: Send your rack model, sensor gas type/range and whether you need Modbus. Our team can flag jumper, calibration and wiring risks before you order.If you need the same template for another Honeywell Analytics or 57-series part, drop the full part number and I will produce the matching document.
