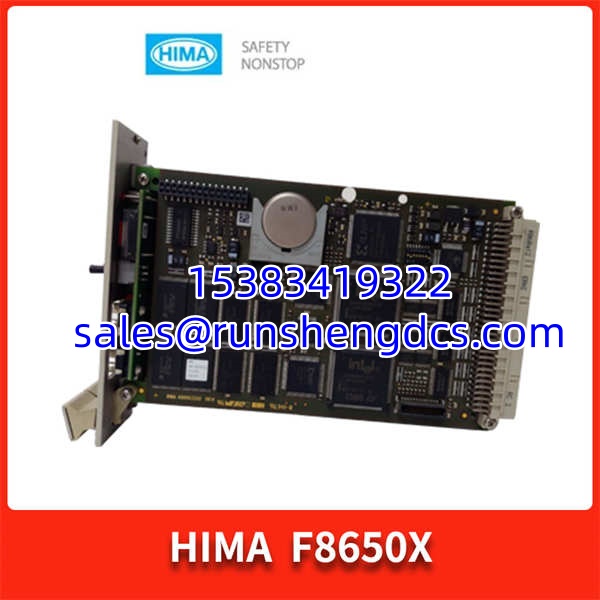

HIMA F8650X | TMR Safety Central CPU Module

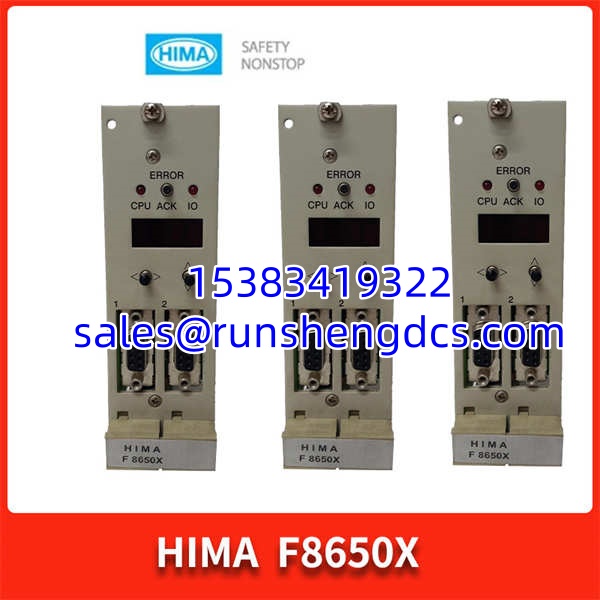

HIMA F8650X | TMR Safety Central CPU Module - Image 2
HIMA F8650X | TMR Safety Central CPU Module - Image 3
HIMA F8650X | TMR Safety Central CPU Module - Image 4

HIMA F8650X | TMR Safety Central CPU Module

  • Model: F8650X
  • Brand: HIMA (Paul Hildebrandt GmbH)
  • Series: HIMax / H41q / H51q PES
  • Core Function: Executes safety logic via TMR architecture
  • Type: Central Processing Unit (CPU) Module
  • Key Specs: Intel 386EX 25MHz, 1MB SRAM, SIL 3
  • Condition Note: Verify OS version (BS41q/51q V7.0-8+) before installation.
Get a Quote
Category: SKU: HIMA F8650X
Phone: +86 15383419322
Email: [email protected]
WhatsApp: +86 15383419322
WhatsApp QR Code
Brand:

Description

Key Technical Specifications

  • Processor: Intel 386EX, 32-bit, 25 MHz
  • Architecture: TMR (Triple Modular Redundancy)
  • Safety Level: SIL 3 (IEC 61508 / IEC 61511)
  • OS Memory: 1 MB Flash-EPROM
  • User Program Memory: 1 MB Flash-EPROM
  • Data Storage: 1 MB SRAM
  • Communication: 2x Electrically Isolated RS-485
  • Power Supply: 5V DC / 2A
  • Diagnostics: 4-Digit Matrix Display
  • Hot-Swap: Supported (maintains process safety)
  • Space Requirement: 8 SU (Standard Units)



Product Introduction

Process safety demands zero tolerance for single-point failures. The HIMA F8650X serves as the central brain of the HIMax PES, running three independent CPU channels in parallel. It continuously votes on outputs, ensuring that a single hardware fault never compromises plant safety or triggers an unnecessary trip.

This module handles critical logic for ESD, fire and gas, and burner management systems. With 1 MB of SRAM and dual isolated RS-485 ports, it processes data fast while maintaining secure bus communication. Bottom line—it delivers the fault tolerance required for high-risk environments without halting production during maintenance.

Troubleshooting Quick Reference

  • Symptom: “BATE” error on display. Probable Cause: Backup battery failure. Relevancy: 60%. Quick Check: Read 4-digit matrix display. Fix: Replace CR2477N battery (solder negative first).
  • Symptom: Module fails to boot. Probable Cause: Firmware/OS mismatch. Relevancy: 20%. Quick Check: Verify DIP switch settings and OS revision. Fix: Load compatible OS (V7.0-8 minimum).
  • Symptom: Comm loss on RS-485. Probable Cause: Baud rate misconfiguration. Relevancy: 15%. Quick Check: Check S1-8 switch position. Fix: ON = 9600 bps, OFF = 57600 bps.
  • Symptom: System trips unexpectedly. Probable Cause: TMR channel disagreement. Relevancy: 5%. Quick Check: Review diagnostic logs. Fix: Isolate and replace the failing redundant channel.



Application Scenarios & Pain Points

  • Offshore Oil & Gas Platforms: Space and weight are premium. The 8 SU footprint and TMR architecture provide SIL 3 protection without requiring massive, redundant dual-rack setups.
  • Petrochemical Refineries: Unplanned shutdowns cost millions. Hot-swap capability allows maintenance teams to replace a failing CPU while the refinery continues operating safely.
  • Power Generation Turbines: High electrical noise from generators can corrupt data. The dual electrically isolated RS-485 ports prevent ground loops from taking down the safety network.

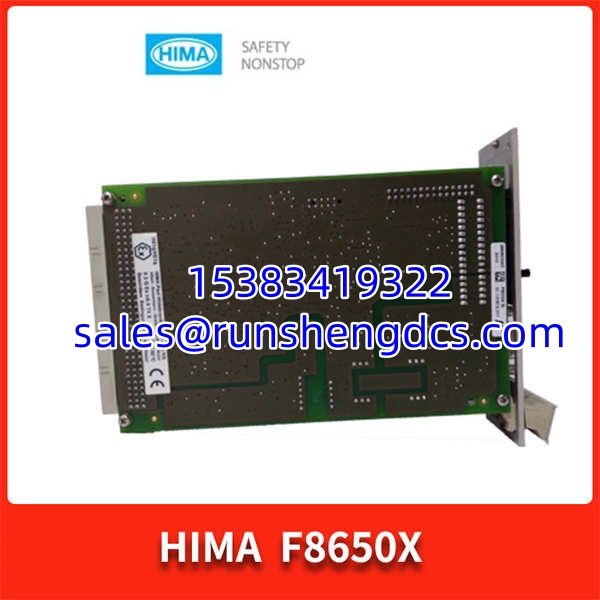

HIMA F8650X

HIMA F8650X

Compatible Replacement Models

  • ✅ Drop-in Replacement: F8650X (exact match). No logic changes needed. Verify hardware revision and OS compatibility.
  • ⚠️ Software Compatible: F8652E / F8652X. Same H41q/H51q family, but requires SILworX recompile and download. Budget 4-8 hours for engineering and validation.
  • ❌ Hardware Incompatible: F8621A (Co-processor). Different function entirely. Do not attempt to use as a CPU replacement. Requires entirely different backplane slot.
