HIMA F8627X | H51q Ethernet Communication Module, Modbus TCP

Description

Key Technical Specifications

Product Introduction

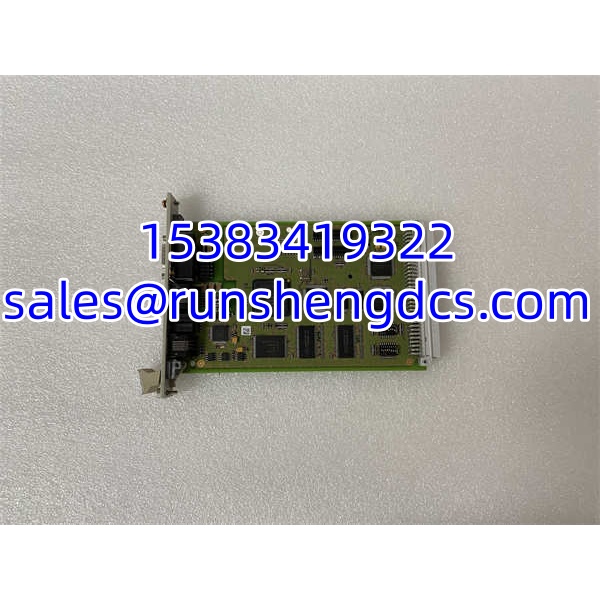

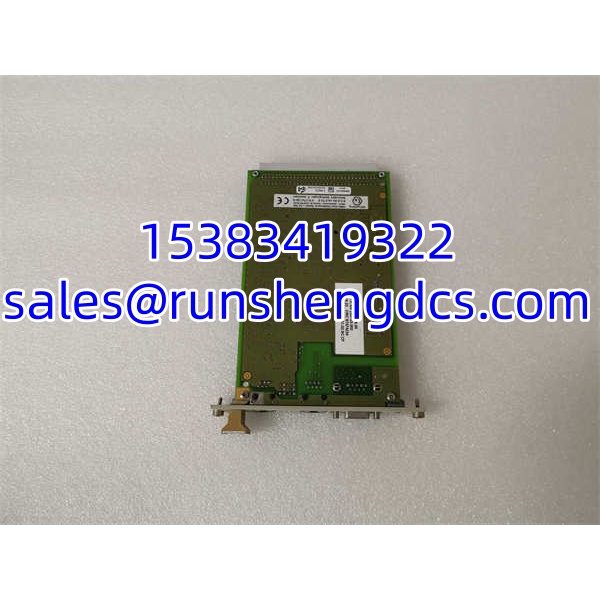

The HIMA F8627X is an Ethernet communication module for HIMA H41q/H51q safety instrumented systems. It does not execute safety logic by itself. Instead, it provides the H51q/H41q rack with Ethernet connectivity through the backplane, allowing the central processor such as the F8650X to communicate with external systems using SafeEthernet, Modbus TCP, or ELOP II TCP.

In practice, this module is how a legacy H51q SIS talks to DCS, historians, HMIs, or engineering workstations over Ethernet while keeping safety execution inside the certified central processor. It is a common companion to the F8650X, which only carries RS-485 ports and relies on F8627X for Ethernet access.

HIMA F8627X

QA/QC Transparency SOP

1. Intake & Origin Verification
   Confirm model F8627X and part number 984862765 or equivalent. Inspect RJ45 port, backplane connector, label revision, and PCB condition. Reject units with bent pins, corrosion, or mismatched labeling.
2. Live Functional Testing
   Install in a compatible H51q/H41q rack with a known-good F8650X or compatible central module. Power up and verify module recognition by the system.
3. Ethernet Communication Check
   Verify link status on the RJ45 port. Test Modbus TCP or ELOP II TCP communication with a PADT/engineering workstation or test client. Confirm stable frame transmission without CRC errors.
4. Backplane & Diagnostic Verification
   Check backplane communication between F8627X and the central module. Review system diagnostics for communication faults, firmware mismatches, or OS incompatibility.
5. Final QC & Anti-Static Packaging
   Package in ESD bag with foam protection. Include tested status, confirmed protocol support, OS version dependency, and a compatibility warning for H51q/H41q racks.

Field Engineer Gotchas

• Misidentified as CPU or I/O module
  Risk: Some listings call a processor, TMR controller, or analog card.
  Solution: Treat it strictly as an Ethernet communication/coprocessor module.
  Blunt warning: If the listing mentions ARM Cortex-A9, 1.2 GHz, or TMR processing inside , verify against the HIMA label and manual before proceeding.
• OS version dependency
  Risk: SafeEthernet, ELOP II TCP, and advanced station addressing may require BS41q/51q V7.0-8 or later.
  Solution: Confirm the central module OS version before commissioning Ethernet functions.
  War story: An linked physically, but ELOP II TCP would not connect because the F8650X OS predated the required release.
• F8650X vs F8627X confusion
  Risk: provides RS-485; provides Ethernet.
  Solution: Use when Ethernet is required; do not expect RJ45 ports on .
  Quick check: No RJ45 on means you still need for Ethernet.
• Wrong rack or slot assignment
  Risk: must be recognized in the correct H51q/H41q slot.
  Solution: Verify slot configuration and system database before replacing the module.
  Field note: A replacement module powered up but remained invisible because the hardware configuration did not include it.
• Network security assumptions
  Risk: Connecting a legacy SIS Ethernet port to a modern plant network can expose unintended services.
  Solution: Segment the SIS network, restrict Modbus TCP access, and follow site cybersecurity procedures.

HIMA F8627X

Application Scenarios

• DCS-to-SIS Ethernet integration
  Provides Modbus TCP communication between a H51q SIS and a host DCS or PLC for status monitoring and setpoint exchange.
• ELOP II TCP engineering access
  Enables PADT/ELOP II connectivity over Ethernet instead of direct RS-485 access to the .
• Historian and alarm data collection
  Allows non-safety systems to read SIS status data through SafeEthernet or Modbus TCP under controlled access.
• Brownfield H51q communication upgrade
  Restores Ethernet connectivity when an existing fails or when migrating from serial-only access.

FAQ

No. It is an Ethernet communication/coprocessor module for HIMA H41q/H51q systems.

What protocols does it support?
SafeEthernet, Modbus TCP, and ELOP II TCP are commonly supported, depending on the installed OS version.

Yes. typically connects to the H51q backplane and communicates with the central module.

Does it have RS-485 ports?
No. RS-485 is provided by the central module. provides Ethernet via RJ45.

Can it execute safety logic?
No. Safety logic execution remains in the central processor. handles Ethernet communication.

Is it still available new from HIMA?
H41q/H51q and are legacy products. Most units are now sourced as surplus or refurbished stock.

What should I check before buying?
Confirm the exact part number, rack type, OS version, slot configuration, and protocol requirements.
