Description
Key Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | HIMA Paul Hildebrandt GmbH |
| Product type | 8-channel safety analog input module |
| Model | F6217 |
| Safety certification | SIL 3 per IEC 61508 / AK6 |
| Input signals | 0/4–20 mA current; 0–5/10 V voltage |
| Resolution | 12-bit (0–4095) |
| Voltage input range | 0–5.5 V typical; max 7.5 V |
| Current input range | 0–22 mA via shunt; max 30 mA |
| Input resistance | 100 kΩ typical |
| Measurement/update time | 50 ms typical |
| Safety time | <450 ms typical |
| Isolation | Safe galvanic isolation between channels and system side |
| Compatible systems | HIMA HIQuad / HIMax safety controllers |
| Product status | Legacy / installed-base spare |
Product Introduction
Replacing an analog input in a safety loop is not like swapping a standard PLC card. The HIMA F6217 is an 8-channel safety analog input module used in HIMA HIQuad / HIMax systems to acquire 0/4–20 mA and 0–5/10 V signals from pressure, temperature, level, and flow transmitters. It does not sit on a generic backplane; it belongs inside a HIMA safety architecture where channel diagnostics, isolation, and failure mode behavior matter as much as raw accuracy.
For procurement, the F6217 is an installed-base spare. It is not a universal HIMA I/O card and should not be treated as interchangeable with digital I/O or communication modules. The module supports 12-bit resolution, safe galvanic isolation, and SIL 3 capability under IEC 61508. Bottom line — confirm the system family, firmware revision, and connector kit before buying surplus stock.
QA/QC Transparency SOP
- Intake & Origin Verification — Record model F6217, serial number, hardware revision, and previous system. Reject units with damaged connectors, corrosion, or missing labels.
- Live Functional Testing — Install in a compatible HIMA test rack. Apply 4 mA, 12 mA, 20 mA, 0 V, 5 V, and 10 V references. Verify channel readings, LED status, and diagnostic reporting.
- Electrical Parameter Tests — Check input impedance, channel isolation, insulation resistance, and shunt resistor integrity for current inputs. Look for drift or channel crosstalk.
- Firmware/Config Verification — Read module identity and firmware revision. Compare against the target HIMA system build. Back up configuration before inserting into a live rack.
- Final QC & Anti-Static Packaging — Confirm stable zero, correct scaling, and clean diagnostics. Pack in ESD-safe bags with a test report, revision label, and photo record.
Field Engineer Gotchas
- Firmware revision mismatch. HIMA safety modules may reject or fault if the OS/firmware revision does not match the existing system. Always check the revision before inserting the module into a live HIQuad/HIMax rack.
- Unused channel termination. Open voltage inputs can produce unstable readings. Verify whether unused channels require defined termination per the HIMA project configuration.
- Current shunt confusion. The 0/4–20 mA path typically uses internal or external shunt conversion. Do not apply current signals to a voltage-configured channel without confirming the wiring and project setup.
- Wrong module family. The F6217 is an analog input module. It cannot replace digital I/O, communication, or CPU modules. Surplus listings sometimes mislabel HIMA cards.
- Hot-swap is conditional. HIMA modules may support replacement during operation, but only when redundancy, diagnostics, and maintenance procedures allow. Never pull a module from a degraded safety group without approval.

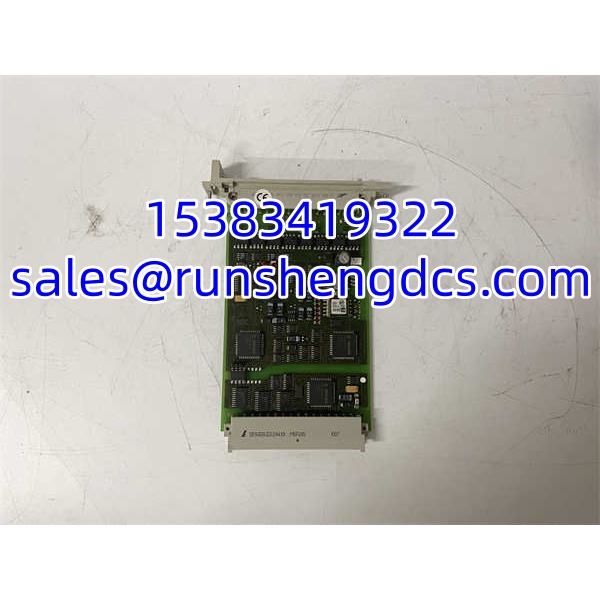

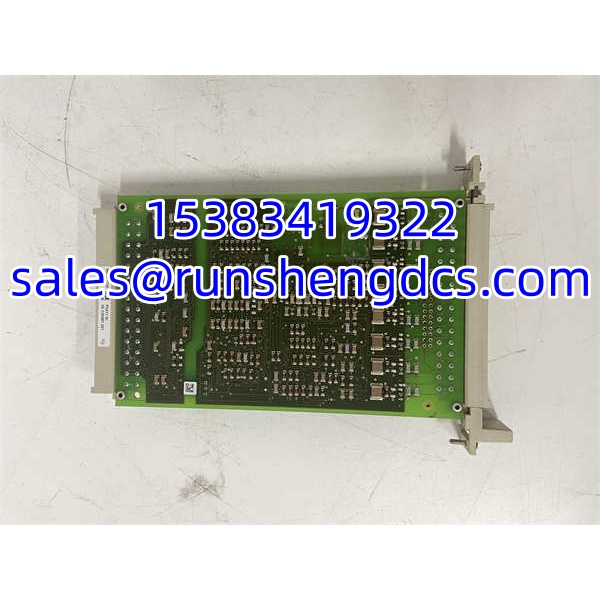

HIMA F6217
Application Scenarios
- ESD systems in refineries: Monitoring reactor pressure and temperature transmitters that feed safety trip logic.
- Pipeline HIPPS applications: Acquiring pressure signals where SIL 3 integrity and diagnostic coverage are required.
- Boiler and furnace protection: Reading temperature and differential pressure inputs for safe shutdown functions.
- Gas detection systems: Processing analog gas detector outputs into a HIMA safety controller.
FAQ
It is an 8-channel safety analog input module supporting 0/4–20 mA and 0–5/10 V signals.
What safety level does it support?
It is designed for SIL 3 applications under IEC 61508 / AK6.
Can I use it in any HIMA system?
No. It belongs to the HIQuad / HIMax family. Verify compatibility with the specific controller and backplane before procurement.
Does it output 4–20 mA?
No. It is an input module. It reads analog signals from field instruments; it does not drive analog outputs.
Is it still in production?
Availability is limited. Most units circulate as surplus, used, or refurbished. Confirm revision and test status before purchase.
What should I check before installing it?
Confirm the model, firmware revision, connector type, channel configuration, and the target HIMA system build. Do not install based on part number alone.
