Description
Key Technical Specifications
- Processor: Intel Pentium M (Typically 1.1 – 1.8 GHz)
- Cache: Up to 2 MB L2 Cache
- Memory: Up to 1.5 GB DDR SDRAM
- VME Interface: Tundra Universe II Bridge (Full Master/Slave functionality)
- Network: Dual Gigabit Ethernet (10/100/1000)
- Serial I/O: Multiple RS-232/422/485 ports
- Storage: IDE / CompactFlash options
- Power: +5 VDC primary from VME backplane
- Power Consumption: ~15–25 W (Dependent on processor/load)
- Form Factor: Standard 6U VME64 Single Slot
- OS Support: VxWorks, Linux, PC-compatible OS (MS-DOS, Windows NT)
Product Introduction
Engineers maintaining 21st-century VME64 backplanes frequently hit a wall when legacy 386/486 processors can no longer handle complex algorithms or modern Ethernet networking. The GE VMIVME-7740-841 solves this bottleneck without forcing a complete system teardown. Plugging directly into a standard 6U VME64 slot, this single board computer acts as a system controller or slave, bridging modern x86 performance with strict real-time VME compatibility.
This SBC leverages the Intel Pentium M architecture to deliver low-latency execution for demanding applications like motion control and SCADA data exchange. By utilizing the Tundra Universe II interface, it maintains full VMEbus interrupt and DMA capabilities while offering integrated dual Gigabit Ethernet ports. This eliminates the need for expensive external coprocessors or extra panel space for network modules, keeping critical control loops tight and reliable.

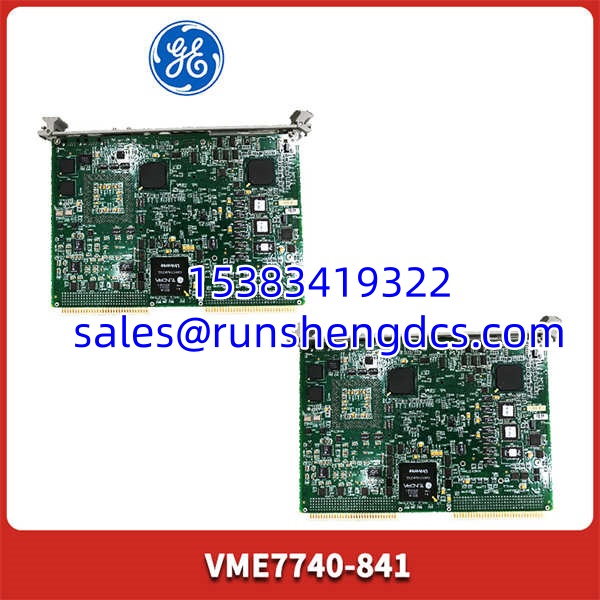

GE VME7740-841
QA/QC Transparency SOP
- Intake & Origin Verification: We verify the VMIVME-7740-841 part number and inspect the Tundra Universe II bridge chip for authenticity. Counterfeit SBCs often use inferior re-balled BGA components that fail under thermal load.
- Live Functional Testing: Boards are seated in a VME64 test chassis. We boot the module via serial console or CompactFlash, verify POST completion, and test VMEbus master/slave read/write cycles against a known good backplane.
- Electrical Parameter Tests: Using precision multimeters, we verify the +5 VDC draw stays within the 15-25W spec and check for proper DDR SDRAM voltage regulation under memory stress.
- Firmware/Config Verification: We read the BIOS/firmware revision and verify system controller jumper settings. Mismatched firmware is a common cause of VMEbus timing failures.
- Final QC & Anti-Static Packaging: Test logs are attached to the shipment. The SBC is placed in a static-shielding bag with desiccant and packed with edge protectors to prevent VME connector pin damage.
Field Engineer Gotchas
- System Controller Jumper: This board can act as a system controller or a slave. If your backplane requires a system controller and the jumpers are set to slave mode, the entire VMEbus will hang. Always verify jumper settings against the manual before powering up.
- Backplane Compatibility: While it supports VME64, older VME32 backplanes may have timing issues with the Pentium M’s faster bus speeds. Verify your backplane spec sheet before installation.
- Power Supply Headroom: Drawing up to 25W on the +5V rail is significant for older VME chassis. Calculate your total backplane load. I’ve seen aging power supplies sag and cause random VMEbus parity errors when a new Pentium M SBC was added.
- Shielded Cabling: With dual Gigabit Ethernet and high-speed VME bridging, EMI is a real threat. Always use shielded cables for serial and Ethernet connections. Unshielded cables in a noisy industrial rack will cause intermittent network drops.

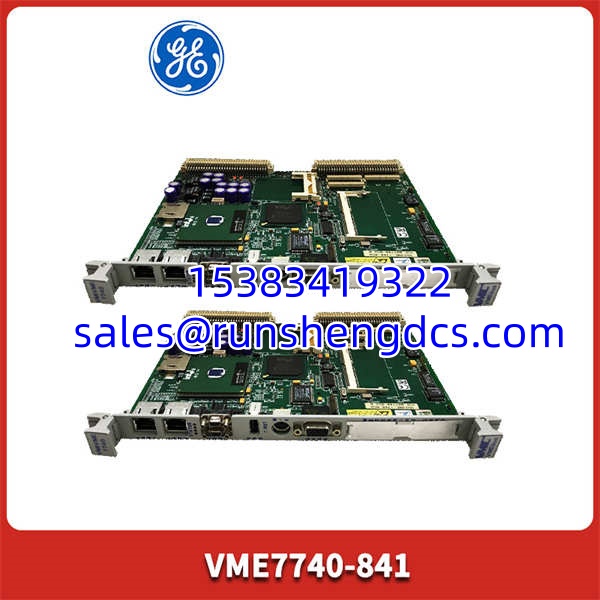

GE VME7740-841
Application Scenarios
- Legacy SCADA Upgrades: Replaces aging 486 controllers in water treatment plants to enable modern TCP/IP networking without rewriting core VME I/O logic.
- Motion Control Systems: Provides the floating-point calculation speed needed for complex kinematic algorithms on 20-year-old manufacturing lines.
- Process Control Data Acquisition: Acts as a high-speed data concentrator, pulling sensor data via VME and pushing it to modern HMI systems over Gigabit Ethernet.
FAQ
Q: Is the VMIVME-7740-841 compatible with VME32 backplanes?
It is generally backward compatible, but you must verify the backplane’s P1/P2 connector keying and timing specs. Some very old VME32 boards struggle with the faster edge rates of the Pentium M processor.
Q: Can this run VxWorks?
Yes. The VMIVME-7740 series was specifically designed with VxWorks and Linux in mind. It also supports PC-compatible operating systems like Windows NT or MS-DOS for legacy software retention.
Q: What is the Tundra Universe II chip used for?
It is the PCI-to-VMEbus bridge. It translates modern PCI bus signals into VMEbus signals, allowing the Pentium M processor to act as a full VME master or slave without custom hardware design.
Q: Does it support CompactFlash booting?
Yes. It includes IDE/CompactFlash storage options. CF is highly recommended over spinning IDE drives for industrial environments due to vibration resistance.
Q: How do I configure it as a system controller?
You must set the specific hardware jumpers on the SBC as defined in the VMIC product manual (document 500-007740-001). Incorrect jumper settings will prevent the board from asserting the SYSFAIL or SYSCLK lines.
Q: Are VMIVME-7780-841 and VMIVME-7740-841 interchangeable?
They belong to the same family and share the same form factor, but the 7780 variant may have different processor speeds, cache sizes, or I/O configurations. Always verify the exact suffix requirements for your application.
