Description
Key Technical Specifications
| Parameter | Detail |
|---|---|
| Manufacturer | GE Fanuc Intelligent Platforms / VMIC |
| Model | VMIVME-7455 |
| Product Type | VMEbus IDE CD-ROM drive module |
| Form Factor | 6U VME, single-slot module |
| Drive Interface | IDE / ATAPI |
| Drive Speed | 24X CD-ROM or faster, depending on installed drive |
| Backplane Connection | VMEbus P2 connector to SBC |
| Supported Media | Multi-session CD, CD-I, Video CD, Enhanced CD, CD PLUS |
| Typical Host | VMIC/GE Fanuc VME SBCs with IDE/P2 support |
| Primary Use | Software loading, documentation access, legacy application media |
| Platform Status | Legacy; verify OEM support and migration path |
Product Introduction
The VMIVME-7455 is a specialized VMEbus module that adds CD-ROM capability to GE Fanuc / VMIC embedded VME systems. It occupies one 6U VME slot and connects to the host SBC through the VME P2 interface, allowing the system to read optical media without external drives.
This module was most useful in legacy test systems, simulation racks, and industrial control cabinets where application software, configuration discs, or technical documentation were distributed on CD-ROM. It is not a high-throughput storage device by modern standards, and it should not be confused with hard-disk modules, floppy modules, or digital I/O cards. In brownfield systems, it is typically retained for media access, software recovery, or documentation retrieval rather than active process control.
QA/QC Transparency SOP
- Intake & Origin Verification — Confirm model VMIVME-7455, manufacturer marking, serial/asset tags, and physical condition. Reject units with damaged front bezels, bent VME pins, or missing drive mechanisms.
- Mechanical Inspection — Check CD tray or caddy mechanism, eject function, drive mounting, and front-panel alignment. Verify the drive is securely mounted to the VME carrier.
- Electrical & Interface Verification — Inspect VME P1/P2 connectors, IDE ribbon cable integrity, and power connections. Confirm no corrosion, cracked connectors, or loose headers.
- Live Functional Testing — Install in a compatible VME chassis with a supported SBC. Verify BIOS/driver detection, media recognition, read stability, and error-free access across multiple discs where possible.
- Final QC & Packaging — Document drive speed, firmware, media test results, and cosmetic condition. Pack in anti-static materials with photos, test notes, and connector protection.
Field Engineer Gotchas
- Not a digital I/O module. Some online listings incorrectly describe VMIVME-7455 as a digital I/O board. It is a CD-ROM drive module.
- Not an Ethernet-APL or PROFINET device. References associating VMIVME-7455 with Ethernet-APL, commModule-APL, or PROFINET stacks are unrelated to this product.
- Drive speed varies. “24X or faster” means the installed drive may differ across revisions. Do not assume identical performance between units.
- P2 connection is critical. The module relies on the VME P2 interface for IDE signals. If the backplane or SBC does not support the required P2 pinout, the drive will not enumerate.
- Media compatibility is limited. It supports CD-family formats, not DVD, Blu-ray, or modern USB-based installation media.
- Legacy relevance only. Most current VME migrations replace optical media with CompactFlash, SATA SSD, or network-based deployment. Keep this module only if the application genuinely requires CD access.

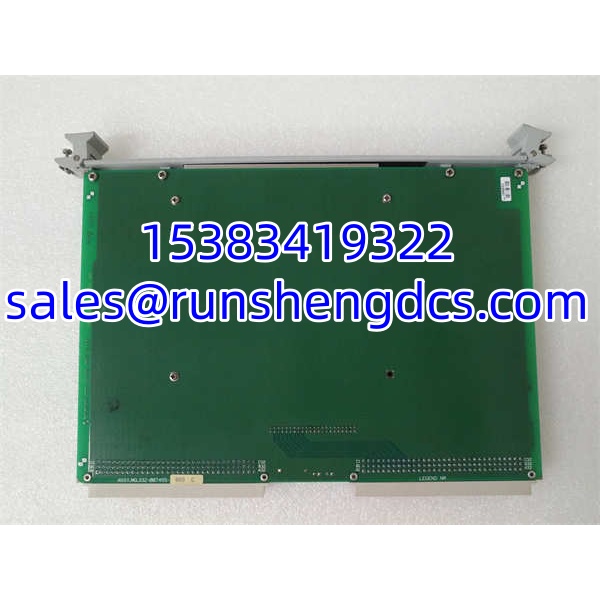

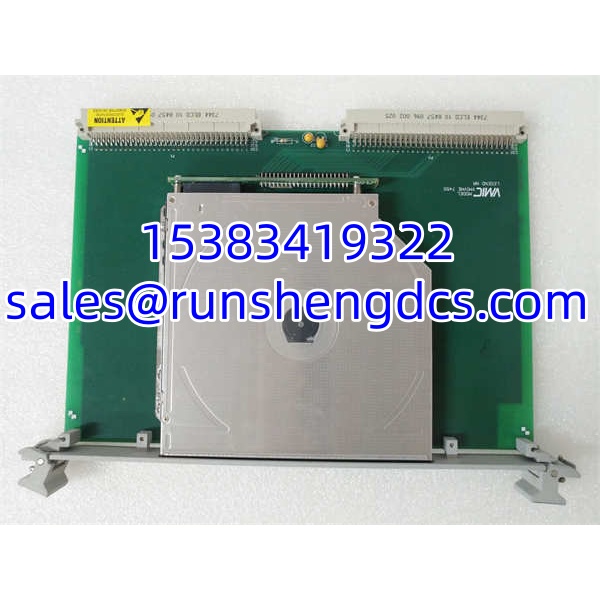

GE VMIVME-7455
Application Scenarios
- Legacy VME SBC software recovery. A test system SBC no longer boots from its original image. A VMIVME-7455 allows recovery from the original installation CD when no network or USB boot path exists.
- Documentation and configuration access. A maintenance team needs to read legacy configuration discs stored on CD for an older GE/VMIC VME cabinet. The module provides direct optical access without adapting external drives.
- Brownfield spare retention. A site keeps one verified as a spare because the original SBC depends on IDE/P2 CD-ROM access for diagnostics or firmware restoration.
FAQ
It is a 6U single-slot VMEbus IDE CD-ROM drive module for GE Fanuc / VMIC embedded systems.
Is it a digital I/O card?
No. It is an optical drive module, not a digital I/O board.
Does it support DVD or USB?
No. It is designed for CD-family media through an IDE interface.
How does it connect to the SBC?
Through the VMEbus P2 connector, which carries the IDE signals to the host SBC.
Is it still supported by the OEM?
GE Fanuc Intelligent Platforms / VMIC VME products are legacy. Confirm current support, spare availability, and migration options before specifying it for long-term use.
Do you provide driver or OS support?
No. Driver availability, BIOS settings, and OS compatibility depend on the host SBC and installed software. We provide hardware identification, inspection, and functional testing support only.
