Description
Key Technical Specifications
- Memory Capacity: 128 Mbyte SDRAM (Option ‘1’)
- Network Speed: 2.125 Gbaud Serial Link
- Transfer Rate: Up to 174 MByte/s (64-byte packets)
- Latency: <400ns Node-to-Node
- Bus Interface: VMEbus (64-bit, 33/66 MHz)
- FIFO Buffer: 4K x 32-bit (Option ‘1’)
- Fiber Type: Multi-mode (300m) or Single-mode (10km)
- Max Nodes: 256 per Network
- Interrupts: Hardware-generated, Any-to-Any
- OS Support: VxWorks, Linux, Windows, RTOS
- DMA Channels: 2 Independent Channels
- Operating Temp: 0°C to +55°C (Commercial)
Product Introduction
Your simulation rig is only as fast as its slowest data link. The VMIVME-5565-110000 isn’t just a memory card; it’s a hardware-enforced real-time network that makes 256 separate computers look like one giant RAM array. When Node A writes to address 0x1000, Nodes B through Z see that data in under 400ns. No TCP/IP stack. No OS overhead. Just raw photons moving data at 2.125 Gbaud.
Why does this matter? Because in hardware-in-the-loop (HIL) testing, 1ms of jitter can crash your simulation. The VMIVME-5565-110000 guarantees deterministic latency that software networks simply can’t match. It’s the backbone of flight simulators, missile defense testbeds, and power grid protection systems where “eventually consistent” means “failed test.” Bottom line: It’s expensive, but so is a $50M aircraft program delayed by bad data.
Troubleshooting Quick Reference
| Fault | Cause | Relevancy | Quick Check | Fix |
|---|---|---|---|---|
| Link LED Off | Fiber break or wrong fiber type | ✅ High | Swap fiber; check TX/RX polarity | Clean connectors; verify MM vs SM |
| Data Corruption | FIFO Overflow or EMI | ⚠️ Med | Check packet size vs bus load | Reduce packet size; shield cables |
| No Interrupt | Interrupt Mask Register | ⚠️ Med | Read IMR via driver/debug tool | Reconfigure interrupt vector |
| Bus Timeout | VMEbus Termination | ✅ High | Measure termination resistors | Verify 100Ω diff at both ends |
| Partial Update | Node ID Conflict | ❌ Low | Check DIP switches/EEPROM | Reprogram unique Node ID |

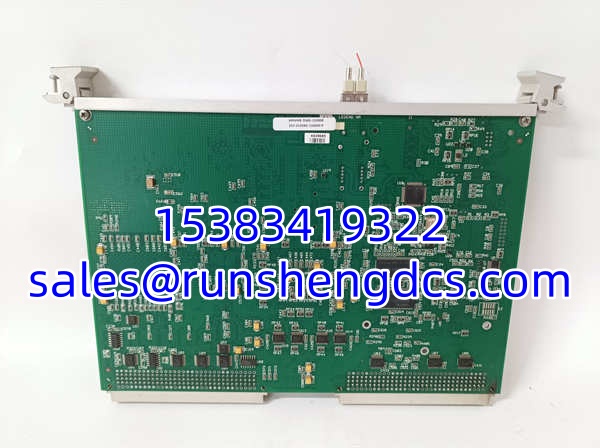

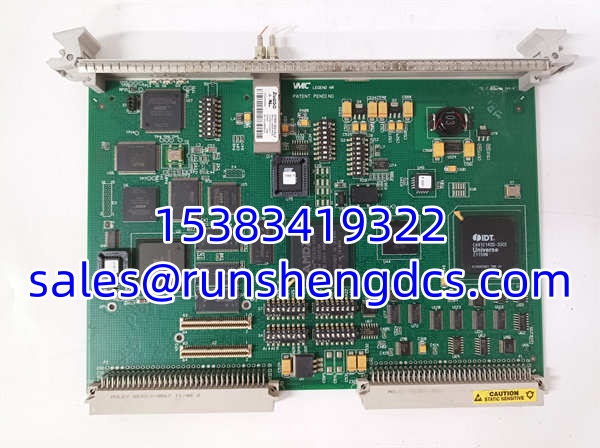

VMIC VMIVME-5565-110000332-015565-110000 P VME-5565
Application Scenarios & Pain Points
Flight Simulator Motion Platforms:
Six degrees of freedom need to move in perfect sync. If the visual system lags the motion base by 5ms, pilots get sick. The VMIVME-5565-110000 locks all nodes to the same data frame, ensuring motion and visuals update within the same 1ms cycle.
Power Grid Protection Testing:
Relay testing requires injecting fault currents across 50+ nodes simultaneously. Standard Ethernet introduces jitter that skews trip-time measurements. Reflective memory guarantees every relay sees the fault at the exact same microsecond, validating protection logic accurately.
Real-Time HIL for Automotive:
ECU validation needs deterministic I/O. The VMIVME-5565-110000 offloads data movement from the CPU, freeing up processing power for complex vehicle dynamics models while maintaining <100μs I/O response.
