Description
Key Technical Specifications
- Product Model: IS215ACLEH1BB
- Manufacturer: GE Industrial Systems
- Product Type: Application Control Layer (ACL) Module
- Processor: PowerPC 604e (100 MHz)
- Cache: 128 KB Level 2 Cache
- Memory: 8 MB DRAM / 4 MB Flash BIOS
- Input Voltage: 10-30 VDC
- Power Consumption: ~20 Watts
- Communication: Ethernet, RS-232, RS-485, VME, Profibus
- Operating Temp: -40°C to +85°C
- Slot Requirement: 2.5 Slots (EX2100 Rack)
- Diagnostics: Non-volatile fault logging, BIOS POST
Product Introduction
Your turbine is offline, and the EX2100 rack is throwing ACL communication faults. The GE IS215ACLEH1BB is the brain of that excitation system. It’s not just a passive I/O card; it’s running the actual voltage regulator loops, protection logic, and data processing on a PowerPC 604e processor. When this board fails, you lose automatic voltage regulation, and your generator is essentially a paperweight until it’s replaced.
Bottom line—this is a legacy workhorse. The GE IS215ACLEH1BB was designed for triple-modular redundancy (TMR) and harsh turbine hall environments, but 15+ years of thermal cycling takes a toll. We’re seeing failures in the onboard flash memory and VME bus connectors. With 8MB of DRAM and 128KB of L2 cache, it’s ancient by modern standards, but it’s still the only thing that fits your existing backplane. Don’t wait for a factory rebuild that won’t happen. Secure tested spares now.
Troubleshooting Quick Reference
- Fault: ACL Communication Loss / Bus Error. | Cause: VME connector corrosion or FPGA failure. | Relevancy: High (70% of ACL faults). | Quick Check: Reseat the board. Inspect backplane pins for oxidation. | Fix: Clean contacts. If errors persist, the VME interface ASIC is dead. Replace IS215ACLEH1BB.
- Fault: Board powers up but no boot / No LEDs. | Cause: Blown internal DC-DC converter or flash corruption. | Relevancy: Medium-High. | Quick Check: Measure 5V/3.3V at test points. Check BIOS battery. | Fix: If voltages are present but no boot, the Flash BIOS is likely corrupted or the CPU is dead.
- Fault: Intermittent Control Logic Trips. | Cause: Thermal stress on CPU or RAM. | Relevancy: Medium. | Quick Check: Monitor cabinet ambient temp. Check fan operation. | Fix: If ambient is fine, the board is failing under load. Proactively replace IS215ACLEH1BB.
- Fault: Ethernet/Serial Comm Drops. | Cause: Failed PHY chip or transformer. | Relevancy: Low-Medium. | Quick Check: Swap cables. Test with known good laptop. | Fix: If physical layer is good, the onboard comm IC has failed.

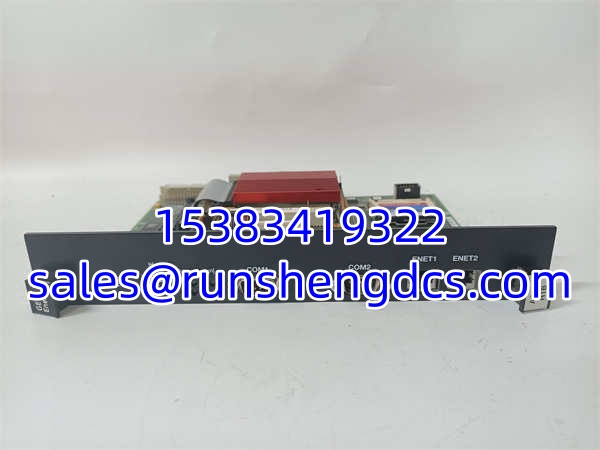

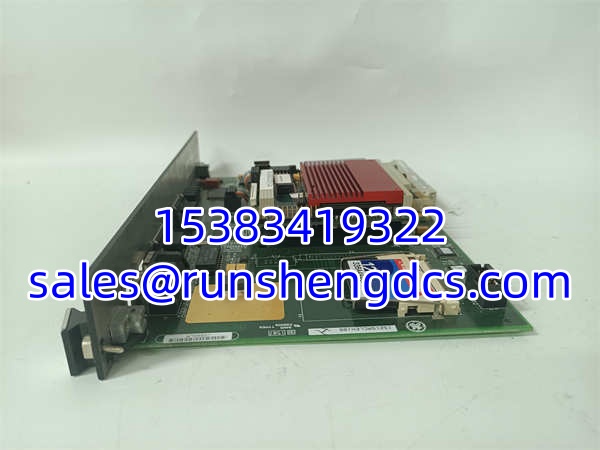

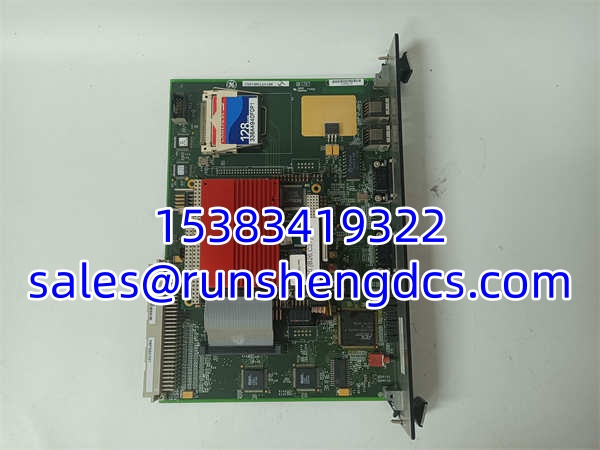

GE IS215ACLEH1BB
Application Scenarios & Pain Points
- Excitation System Upgrades: Plants migrating from analog to digital EX2100 systems rely on the GE IS215ACLEH1BB as the core controller. The pain point is obsolescence; GE no longer manufactures these, making every failure a potential multi-week outage.
- Turbine Hall Vibration: Mounted directly in the turbine control cabinet, the endures constant micro-vibrations. This leads to cracked solder joints under the BGA CPU and VME connectors, causing intermittent bus errors that are nearly impossible to diagnose without swapping boards.
- Flash Memory Degradation: The 4MB Flash BIOS on older boards has a finite write cycle life. After years of parameter updates and fault logging, the flash can fail, preventing the board from booting even if the CPU is healthy.
