Description
Key Technical Specifications
- Product Model: IS200JPDDG1AAA
- Manufacturer: GE Boards & Turbine Control
- Product Type: DC Power Distribution Board
- System Platform: Mark VI Speedtronic
- Input Voltage: 24V, 48V, or 125V DC
- Fusing: 12 Individual Fuses
- Switches: 6 Toggle Switches
- Indicators: 6 LED Power Status Lights
- Connectors: 7 Two-Position Plugs (JD1-JD6 + 1 additional)
- Sensors: 1 Conduction Sensor (TB1)
- Dimensions: Rectangular PCB (Standard Mark VI form factor)
- Certification: UL Listed / Industrial Grade
Product Introduction
Your turbine control rack is dead, and the power distribution board is fried. The IS200JPDDG1AAA is the electrical backbone of your Mark VI system. It takes a single high-voltage DC feed and splits it into 12 individually fused branches to power everything from I/O cards to solenoid valves. Without it, your turbine is just a very expensive paperweight.
Bottom line—this isn’t a generic DIN-rail power supply. It’s a custom-engineered distribution board with specific toggle switches and fuse ratings tied to your turbine’s safety logic. Sourcing the exact IS200JPDDG1AAA is non-negotiable; a mismatched fuse rating can leave critical protection circuits dead during an emergency. Get a tested unit with a 12-month warranty, not a “pulled” board from a scrap yard.
Troubleshooting Quick Reference
| Fault Symptom | Probable Cause | Relevancy | Quick Check | Fix |
|---|---|---|---|---|
| No Power to I/O | Blown Fuse | 90% | Check 12 fuses with multimeter | Replace fuse (verify rating!) |
| LED Off, Fuse Good | Toggle Switch Open | 80% | Check JD1-JD6 switch positions | Flip switch / Check wiring |
| Intermittent Power | Loose TB1 Connection | 70% | Inspect conduction sensor TB1 | Reseat / Clean contacts |
| Multiple Fuses Blown | Shorted Load | 95% | Megger downstream wiring | Find short BEFORE replacing fuse |
| No Output Voltage | Input Power Lost | 60% | Measure 24V/48V/125V at input | Check upstream breaker/fuse |

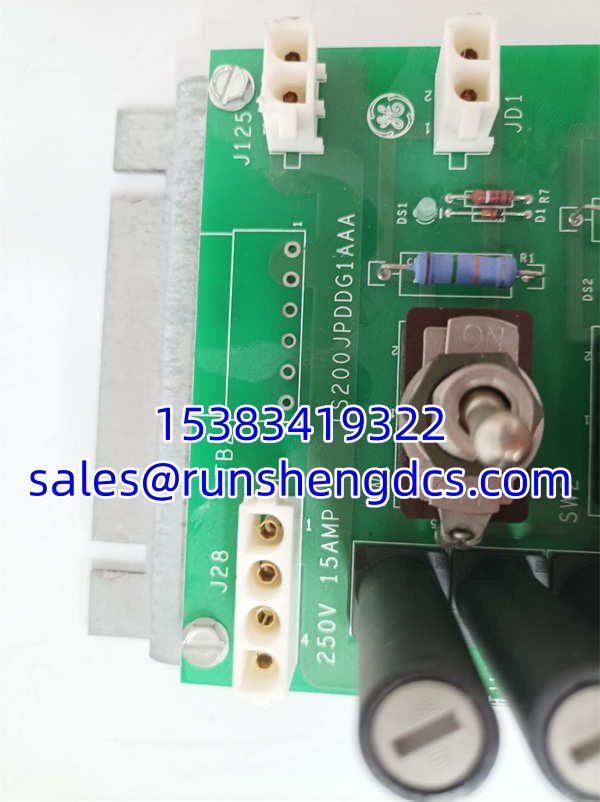

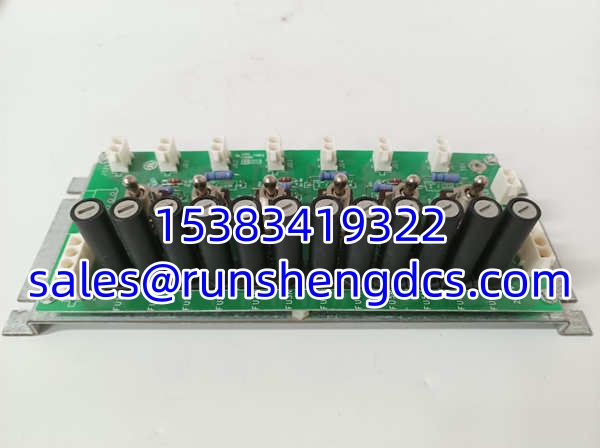

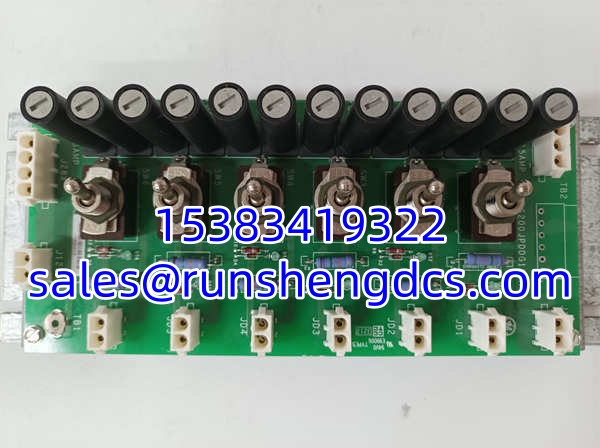

GE IS200JPDDG1AAA
Application Scenarios & Pain Points
- Gas Turbine Power Plants: 24/7 baseload. A power distribution failure means a unit trip and potential grid penalty. The IS200JPDDG1AAA must handle dirty plant power without flinching.
- Offshore Platforms: Salt spray and vibration. Toggle switches on the IS200JPDDG1AAA can corrode, causing intermittent power loss to critical safety valves.
- Combined Cycle Plants: Fast-start requirements. The board must deliver stable power instantly during black-start sequences. Aging capacitors in legacy units cause voltage droop.
- Industrial Cogeneration: Dirty harmonic-rich power. The IS200JPDDG1AAA internal traces take a beating from VFD noise on the same DC bus.
