Description
Key Technical Specifications
- Product Model: IS200ERDDH1ABA
- Manufacturer: GE Industrial Systems
- Product Type: Excitation Regulator Dynamic Discharge Board
- System Compatibility: GE EX2100 / EX2100e Generator Excitation Systems
- Relay Control: K3 Charge Relay (Single) / K41 De-magnetization Relay (Redundant)
- Monitoring Capabilities: Output Field, DC Link Voltage, Shunt Current, IGBT Gate Drive, Bridge Temp
- Operating Modes: Simplex (Single) or Duplex (Redundant)
- Backplane Interface: ERBP (Simplex) or ERRB (Redundant)
- Operating Temperature: 0°C to 60°C
- Power Supply: 24V DC (System derived)
- Weight: 0.35 kg
Product Introduction
When a generator trips, you need the field energy dumped immediately to prevent catastrophic damage. The GE IS200ERDDH1ABA is the EX2100 excitation system’s dynamic discharge board, acting as the critical fail-safe that safely bleeds off stored magnetic energy. It doesn’t just sit there; it actively manages the K3 charge relay in simplex setups or the K41 de-magnetization relay in redundant configurations. Without this board functioning perfectly, your generator’s protection scheme is fundamentally compromised.
Beyond safety, this board serves as the eyes and ears for the power bridge. The GE IS200ERDDH1ABA continuously samples DC link voltage, output shunt current, IGBT gate drive states, and bridge temperatures. It feeds this real-time data back to the main excitation controller to ensure the generator maintains precise voltage stability. Bottom line—this is a high-stakes component. If it fails, your exciter can’t regulate voltage or safely shut down, making a verified replacement absolutely mandatory.
Troubleshooting Quick Reference
- Generator Won’t Build Voltage: 70% chance the K3 charge relay isn’t closing. Check the IS200ERDDH1ABA output to the relay coil and verify 24V DC is present at the terminal block.
- Overvoltage Trip on Shutdown: The dynamic discharge path failed. Measure the K41 relay contacts for continuity while commanding a trip. If the board is outputting but the relay doesn’t pull in, check the relay; if no output, the board is likely dead.
- Bridge Overtemp Fault: Verify the thermistor wiring from the IGBT bridge to the IS200ERDDH1ABA. A broken wire reads as an open circuit, triggering a false overtemp.
- Redundancy Sync Failure: If running duplex, ensure both ERDD boards are seated correctly in the ERRB backplane. Check the sync link between the two boards for physical damage.
- Erratic DC Link Readings: Noise on the feedback lines. Inspect the shielded cables between the power bridge and the IS200ERDDH1ABA for ground loops or broken shields.

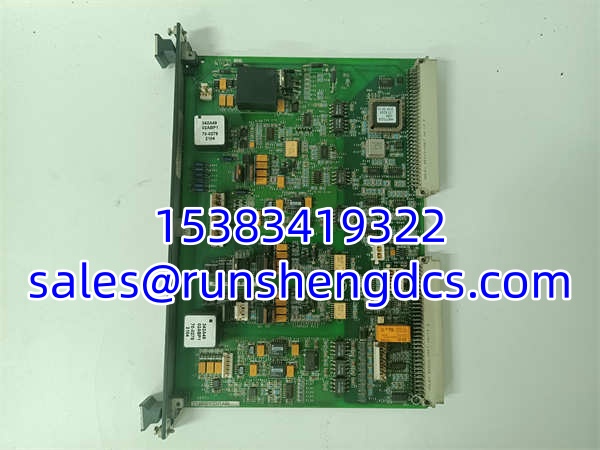

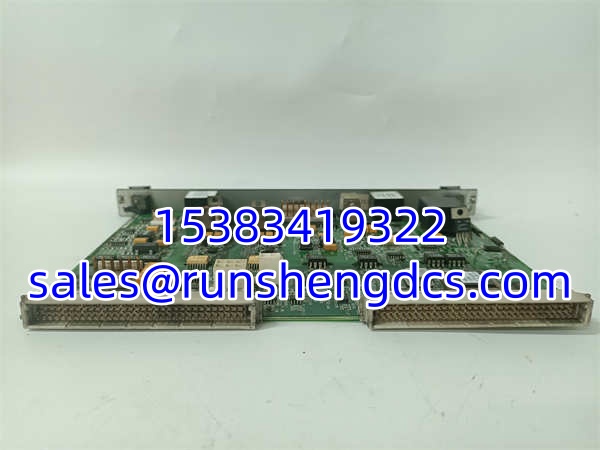

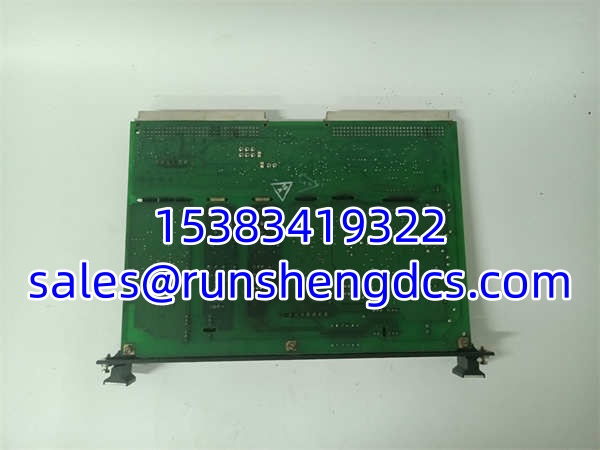

GE IS200ERDDH1ABA
Application Scenarios & Pain Points
- Thermal Power Plants: Steam turbine generators require precise field current control. A failing discharge board causes voltage fluctuations that can destabilize the entire plant grid.
- Hydroelectric Dams: Water turbines face massive mechanical stress during load rejection. Fast, reliable field discharge is the only thing preventing mechanical overspeed.
- Marine Power Generation: Shipboard generators operate in high-vibration, high-salt environments. Vibration-induced solder cracks on this board cause intermittent faults that are a nightmare to diagnose at sea.
- Industrial Cogeneration: Gas turbines and steam turbines in refineries. Unplanned trips here mean shutting down the entire production facility.
