Description
Key Technical Specifications
- Product Model: GE IS200EPSMG2AEC
- Manufacturer: General Electric (GE Industrial Systems)
- Product Type: Excitation Power Supply Module (EPSM)
- Compatible Systems: GE Mark VI, Mark VIe (Software v6.5+ / v7.0+)
- Output Voltage 1: 24 VDC (to EGDM, EDCF, EDEX modules)
- Output Voltage 2: 70 VDC isolated (for EXTB/ECTB contact wetting)
- Paired Module: Requires EPDM module (provides 125 VDC)
- Processor: 32-bit RISC processor
- Diagnostics: Front panel LED fault indicators
- Protection: Overload, short circuit, and thermal protection
- Controller Power: Three self-contained supplies for C, M1, M2 controllers

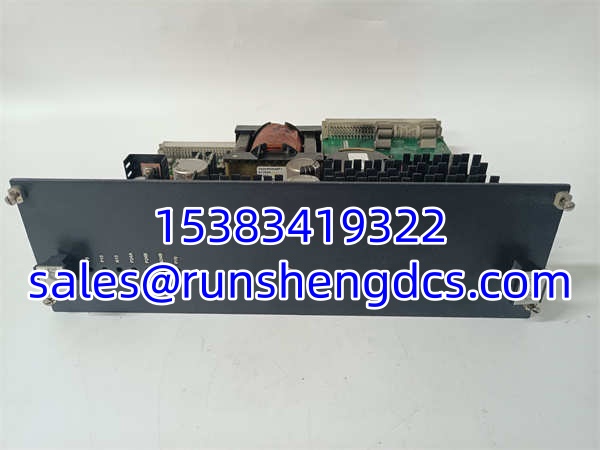

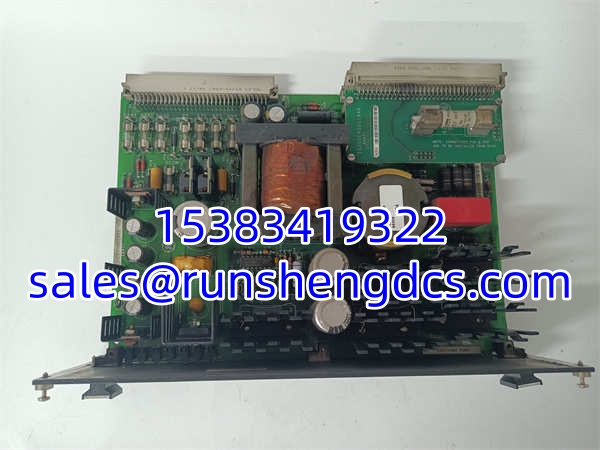

GE IS200EPSMG2AEC
Product Introduction
Excitation systems don’t fail gracefully. When the power supply board dies, your generator loses field control and trips offline. The GE IS200EPSMG2AEC is the EPSM Group 2 power supply module that sits at the heart of the EX2100 excitation system. It takes incoming power and converts it into the specific DC rails that every other board in the rack depends on. Without it, the EGDM, EDCF, and EDEX boards are just expensive paperweights.
This module does more than just convert voltage. It provides three independent self-contained power supplies for the C, M1, and M2 controllers, plus an isolated 70 VDC rail specifically for contact wetting on the EXTB and ECTB terminal boards. The 32-bit RISC processor handles fault diagnostics and reports status through front panel LEDs. Bottom line—when you’re sourcing a replacement for the GE IS200EPSMG2AEC, you need to verify the exact “2A” revision suffix. This version is not backward compatible with earlier EPSM variants.
Troubleshooting Quick Reference
- No Output Voltage: 85% chance the paired EPDM module has failed first. The IS200EPSMG2AEC depends on the EPDM for input power. Check EPDM status LEDs before condemning this board.
- Fault LED Illuminated: 70% probability of downstream short. Disconnect EGDM, EDCF, and EDEX boards one at a time while monitoring. A dead short on any load board will trigger protection.
- 24VDC Output Low: Check input voltage at the terminal block. The module requires stable input within spec. Measure with a true-RMS meter, not just a digital multimeter.
- Intermittent Trips: Inspect the DIN rail grounding and terminal torque. Vibration on turbine platforms loosens connections over time. Re-torque to OEM spec.
- 70VDC Wetting Supply Dead: This rail is isolated. Test continuity on the EXTB/ECTB wiring. A grounded contactor coil will pull this rail down.

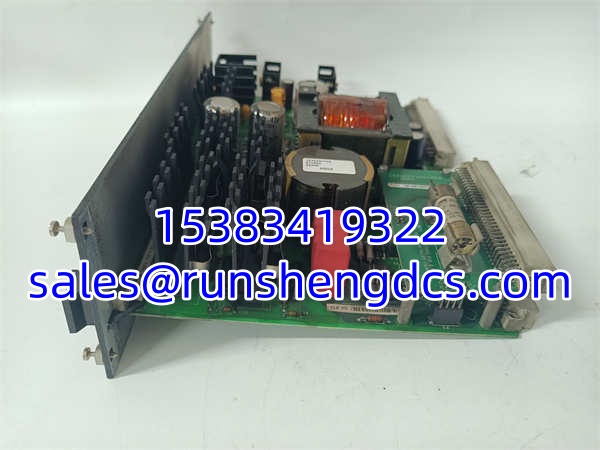

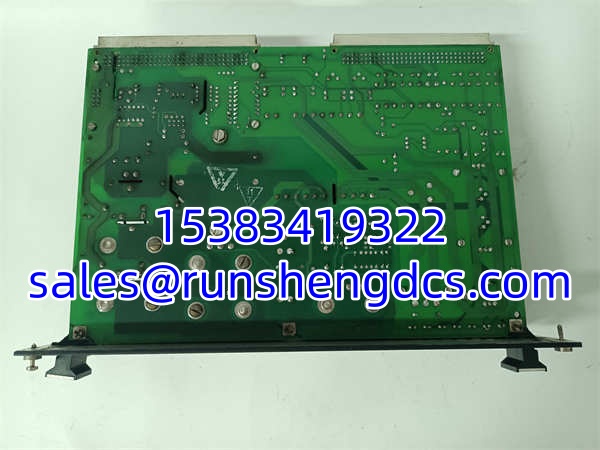

GE IS200EPSMG2AEC
Application Scenarios & Pain Points
- Gas Turbine Generator Sets: Mark VI control systems in combined-cycle plants run hot and vibrate constantly. Power supply capacitors degrade faster in these conditions. The IS200EPSMG2AEC must handle thermal cycling without drifting out of regulation.
- Steam Turbine Excitation: Large steam turbines require precise field current control. Any ripple or dropout in the 24VDC rail to the EGDM board causes excitation instability and potential generator protection trips.
- Petrochemical Cogeneration: Refineries with captive power generation can’t tolerate unplanned outages. When the EPSM fails at 2 AM, having a pre-tested replacement on the shelf beats waiting 3 weeks for a rebuild.
