Description
Key Technical Specifications
| Specification | Details |
|---|---|
| Part Number | IC693PWR322F (suffix “F” denotes a specific firmware/hardware revision of the base IC693PWR322; functionally identical to standard IC693PWR322) |
| Manufacturer | GE Fanuc / General Electric (GE automation business now part of Emerson) |
| Product Type | Standard-Capacity DC-Input Power Supply Module |
| Compatible Platform | GE Fanuc Series 90-30 PLC (IC693 chassis/rack system) |
| Nominal Input Voltage | 24 VDC or 48 VDC |
| Input Voltage Range | 8 VDC to 56 VDC (operating); will not start with initial input below 2 VDC |
| Maximum Input Power | 50 watts at full load |
| Inrush Current | 4 A peak, 250 ms maximum |
| +5 VDC Output | 5 watts maximum (5.0–5.2 VDC, 4 A max) — powers CPU backplane logic and I/O module logic circuits |
| +24 VDC Relay Output | 5 watts maximum (24–28 VDC) — powers relay coils on Series 90-30 output relay modules |
| Isolated +24 VDC Output | 20 watts maximum (24.5–28 VDC) — used internally by some modules; can also power external 24 VDC input modules or field sensors |
| Total Output Power | 30 watts maximum across all three outputs combined |
| Holdup Time | 4 ms minimum (at full load) |
| Protective Limits | Overvoltage shutdown on +5 VDC output (6.4–7 V trip); overcurrent shutdown; short-circuit protection with auto-recovery |
| Front-Panel Indicators | PWR (power OK), OK (CPU status), RUN (CPU running), BATT (low backup battery) |
| Serial Port | Built-in RS-485 port accessible via front-panel connector (used for programming terminal or operator interface communication) |
| Configuration | No DIP switches — all configuration handled via PLC programming software (Logicmaster 90-30 or VersaPro) |
| Backup Battery | Lithium battery supported (note: in later revisions, battery is included in the CPU backplane box, not on the power supply itself) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) — per GE 90-30 hardware manual |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Installation | Installs in leftmost slot (Slot 0) of Series 90-30 rack; occupies one slot width |
| Standards | UL 508, CSA C22.2 No. 142, CE (EN 61131-2); Class I Division 2 available on select variants (IC693PWR322RR) |
Product Introduction
You’re standing in front of a Series 90-30 rack in a water treatment plant, a packaging line, or a small turbine control panel — and the PWR LED on the power supply is dark. The CPU is dead, all I/O is dark, and the process is stopped. The IC693PWR322F is the module that keeps that entire rack alive. It’s a standard-capacity, DC-input-only power supply designed specifically for the GE Fanuc Series 90-30 PLC platform, accepting a wide-range 24/48 VDC input and producing three isolated output rails that feed every module in the rack.
The “322” in the part number tells you this is the 24/48 VDC standard-capacity variant. Unlike the -321 (120/240 VAC input) or the -330 (high-capacity AC/DC universal input), the 322 is DC-only. Its input range is remarkably wide — 8 to 56 VDC — which means it can ride through significant voltage sags without dropping out. It won’t start up cold below 2 VDC, but once running, it’ll stay alive down to 8 VDC. That’s a critical feature in applications powered by 24 VDC UPS systems or 48 VDC telecom-style battery plants, where the battery voltage can sag considerably under load.
The 30-watt total output budget is split three ways. The +5 VDC rail (5W max, 4A) is the lifeblood — it powers the CPU’s logic, the backplane, and every I/O module’s internal circuitry. The +24 VDC relay output (5W max) is dedicated to energizing the relay coils on GE’s relay output modules (like the IC693MDR390). The isolated +24 VDC output (20W max) is the most interesting — it’s galvanically isolated from the other rails, which means you can use it to power external field devices (24 VDC input modules, proximity sensors, small solenoids) without creating ground loops. The isolation barrier is a real engineering feature, not a marketing bullet point.
One thing the 322 does NOT have: redundancy. This is a single power supply module. If you need redundant power for a critical application, GE offered the IC693PWR322RR (redundant-ready variant) and separate redundant power supply configurations. The standard 322 is a single point of failure — if it dies, the rack dies. That’s why plants running critical processes on a single 322 should keep a tested spare on the shelf.

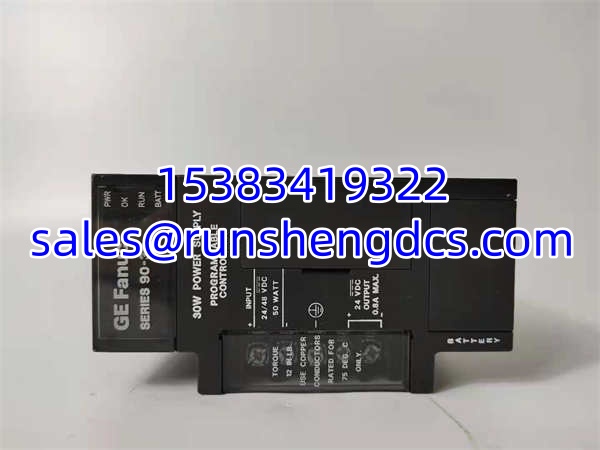

The front panel gives you four LEDs (PWR, OK, RUN, BATT) and an RS-485 serial port connector. That serial port is how you connect a programming terminal or an operator interface (like a GE View or a third-party HMI) directly to the CPU without needing a separate communication module. No DIP switches, no jumpers — everything is configured in software via Logicmaster 90-30 or VersaPro. The backup battery (lithium, for RAM retention during power loss) was originally mounted on the power supply in early revisions, but GE later moved it to the CPU backplane box — so depending on your revision, the battery location may differ.
Bottom line — the Series 90-30 platform is legacy. GE’s automation business was acquired by Emerson in 2019, and the 90-30 line has been superseded by the RX3i (PACSystems) platform. But there are tens of thousands of 90-30 racks still running in the field — in water/wastewater, food & beverage, material handling, and small turbine control applications. The IC693PWR322F is a mature, proven design with a simple topology that makes it highly reliable. Refurbished units are widely available through independent surplus dealers. When replacing one, verify your input voltage (24 vs. 48 VDC), confirm the total rack power budget doesn’t exceed 30W (add up the current draw of all modules from the GE power budget tables), and always test the replacement on a bench before installing it in a live rack. If your application is critical, consider upgrading to a redundant power configuration or migrating to RX3i — but for straightforward replacements, the 322F is a drop-in fix.
Troubleshooting Quick Reference
| Fault | Likely Cause | Relevancy | Quick Check | Fix |
|---|---|---|---|---|
| PWR LED off, rack completely dead | No input power, blown input fuse, or failed power supply | ~40% | Measure DC voltage at power supply input terminals; check external fuse/breaker | Restore input power; replace external fuse; if input is good and PWR is still off, replace power supply |
| PWR LED on, OK LED off | CPU not seated properly, backplane fault, or CPU failure | ~20% | Reseat CPU module; check CPU RUN/OK LEDs; verify rack terminator plug is installed | Reseat CPU; replace CPU if faulty; ensure I/O bus terminator is in last rack slot |
| BATT LED on | Backup battery voltage low or missing | ~15% | Check battery voltage (should be ~3.0 VDC for lithium); verify battery connector is seated | Replace lithium battery (CR2032 or equivalent, depending on revision); clear BATT fault in software |
| Rack intermittently resets | Input voltage sagging below 8 VDC or loose terminal connection | ~10% | Monitor input voltage with multimeter during operation; check terminal screw torque | Tighten input terminals; verify DC power source can maintain ≥8 VDC under full load; add UPS if needed |
| +24V isolated output missing | Isolated output overloaded (>20W) or shorted external wiring | ~10% | Disconnect all external devices from isolated +24V; measure output voltage | Remove short; reduce load to ≤20W; check external wiring for ground faults |
| Power supply hot to touch | Overloaded output (total >30W) or poor rack ventilation | ~5% | Calculate total rack power budget; check rack airflow | Reduce I/O module count or upgrade to high-capacity supply (IC693PWR330/331); improve ventilation |
| RS-485 communication failure | Wrong wiring polarity, missing terminator, or baud rate mismatch | ~5% | Verify RS-485 A/B wiring; check for 120Ω terminator at last node; confirm baud rate in software | Correct wiring; add terminator; match baud rate in PLC config and HMI |

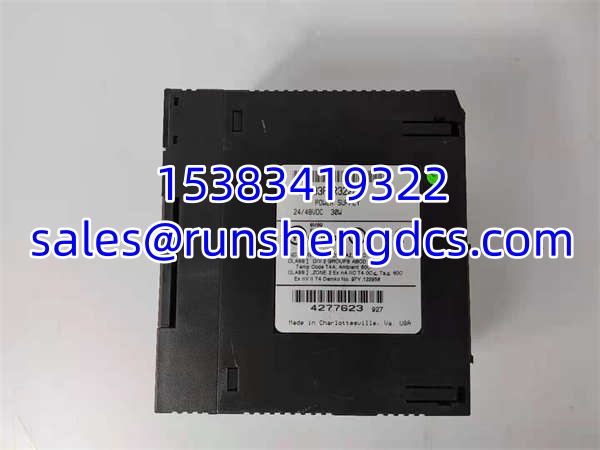

GE IC693PWR322F
Application Scenarios & Pain Points
- Water/wastewater treatment plants: Many municipal water facilities standardized on Series 90-30 in the 1990s and 2000s for lift station controls, chemical dosing, and filter backwash sequencing. The IC693PWR322F is common here because 24 VDC is the standard control voltage in water infrastructure (powered by station battery or 24 VDC UPS). The pain point: after 20+ years of service, the power supply’s electrolytic capacitors degrade, leading to output ripple and intermittent resets. Plants are scrambling to source replacements as the original stock dwindles.
- Packaging and material handling lines: OEMs building packaging machines, conveyors, and sortation systems frequently chose the 90-30 for its compact rack size and modular I/O. The 322’s 24 VDC input matched the machine’s 24 VDC control power distribution. The pain point: vibration on packaging lines can loosen the power supply’s input terminal screws over time, causing intermittent power loss. A simple fix (retightening terminals) is often overlooked in favor of replacing the entire supply.
- Small turbine and compressor control panels: While large turbines use the 3500/90-70/RX7i platforms, smaller industrial gas turbines and centrifugal compressors sometimes use a 90-30 rack for auxiliary control (lube oil sequencing, cooling fan control, valve positioning). The 322’s DC input is attractive here because turbine panels often have a 24/48 VDC station battery. The pain point: a single 322 is a single point of failure for the entire control system. Best practice is redundant power supplies, but many installations were built with a single supply to save cost.
- Food & beverage processing: Bottling lines, pasteurizers, and CIP (clean-in-place) systems in food plants often run on 90-30 PLCs. The isolated +24 VDC output is used to power proximity sensors on conveyor lines and flow meters on CIP systems. The pain point: washdown environments can cause corrosion on the power supply’s terminal block, leading to high-resistance connections and voltage drop. Conformal-coated variants (IC693PWR322CA) were offered for these environments but are harder to find today.
