Description
Key Technical Specifications
- Model Number: IC693DNM200
- Manufacturer: GE Fanuc
- Series: GE Series 90-30 PLC
- Function: DeviceNet Scanner (Master) Module
- Max Nodes: Supports up to 63 DeviceNet slave devices
- Baud Rates: 125K, 250K, and 500K
- Power Requirement: 12-24V DC
- Data Capacity: 50000 bytes
- Operating Temp: -40°C to 85°C
- Hot Swap: Supports hot-swappable installation
Functional Role & Application Analysis
The GE IC693DNM200 is the primary communication gateway for integrating DeviceNet field devices into a GE Series 90-30 PLC architecture. Its core role is to act as the network Scanner (Master), actively polling and managing data exchange with up to 63 DeviceNet slave devices. This module solves the critical challenge of distributed I/O integration, allowing engineers to place sensors and actuators directly on the DeviceNet bus near the process, which drastically reduces hardwiring costs and simplifies panel layouts.
It is the standard component for building scalable and modular control systems in GE 90-30 platforms.
- Use Case 1: Connecting distributed motor starters, VFDs, and valve manifolds directly to the 90-30 PLC without running individual discrete wires back to the main controller.
- Use Case 2: Expanding I/O capacity in legacy 90-30 systems by adding remote DeviceNet I/O racks in field marshalling cabinets.
- Use Case 3: Integrating third-party DeviceNet-compatible devices (like barcode scanners or scales) into an existing GE manufacturing control network.
Our Quality Standard & Testing Process
We understand that a failed communication module can halt an entire production line. The cost of an unreliable part is far greater than its purchase price. To mitigate this risk, we have established a rigorous, multi-stage testing process to ensure every IC693DNM200 we ship is 100% functional and ready for installation.
- Visual & Component Inspection: All parts undergo professional cleaning and a detailed visual inspection to ensure there is no physical damage, corrosion, or compromised components.
- Live System Test: The module is installed in a live GE 90-30 controller test rack and run for a 24-hour burn-in period to verify continuous operation and stable backplane communication.
- Full-Function Diagnostics: We simulate a DeviceNet network to test the module’s ability to scan slave devices, verifying tag mapping, baud rate configuration, and checking for communication timeouts.
- Warranty Backing: Only parts that pass all diagnostic tests are approved for shipment and backed by our full 12-month warranty.

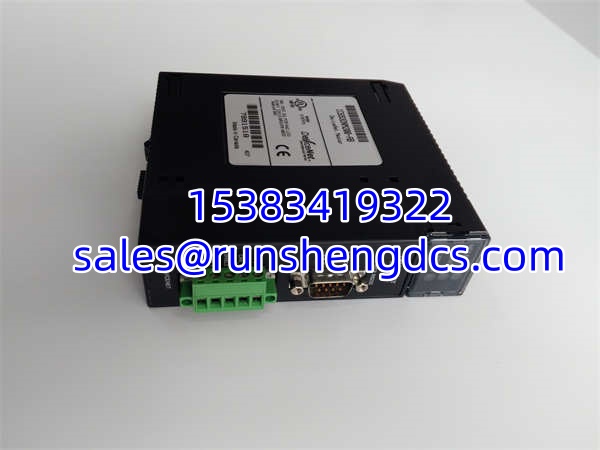

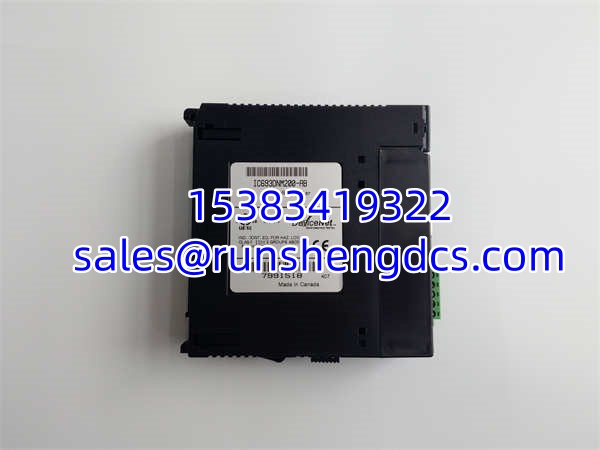

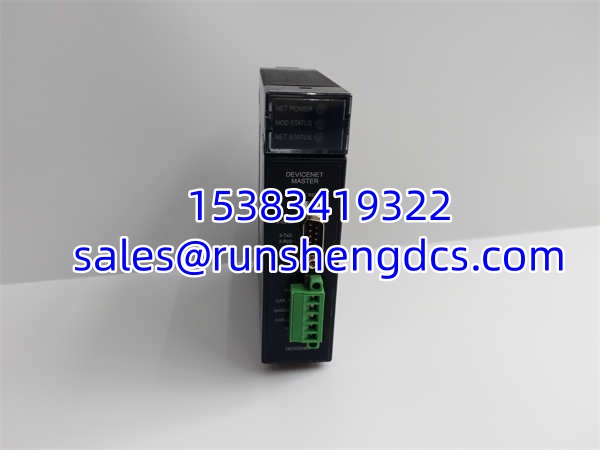

GE IC693DNM200
Compatibility & Migration Paths
To ensure this IC693DNM200 is 100% compatible with your system, you must check a few key configuration points. Failure to verify this is a common project risk that leads to costly downtime.
- Controller Compatibility: This module is designed exclusively for the GE Series 90-30 PLC platform. It requires a compatible 90-30 CPU and must be installed in a valid slot in the 90-30 base rack.
- Software Configuration: You must use GE’s LogicMaster 90-30 or Machine Edition software to configure the DeviceNet network, assign MAC IDs to slaves, and map I/O data to PLC memory.
- Network Topology: Ensure your DeviceNet trunk line and drop lines are properly terminated with 121-ohm resistors at both ends of the network to prevent signal reflection.
- Get Expert Help: Unsure about your DeviceNet network setup or 90-30 compatibility? Contact our technical team today for a free compatibility check before you order.
