Description
Key Technical Specifications
- Model Number: HYDRAN M2
- Manufacturer: GE Grid Solutions
- Measurement: Dissolved Gas Analysis (DGA) & Moisture
- Gas Range: 25 – 2,000 ppm (H2 equivalent)
- Moisture Range: 0 – 100% RH
- Gas Accuracy: ±10% of reading ± 25 ppm
- Moisture Accuracy: ±2% RH
- Installation: Single valve mount, no pump required
- Enclosure: NEMA 4X (IP66)
- Communication: RS-485 standard, Ethernet/Fiber optional
Functional Role & Application Analysis
The GE HYDRAN M2 is a permanent on-line monitoring device for power transformers. It continuously measures dissolved fault gases and moisture levels in transformer oil. This device solves the critical problem of undetected incipient faults. Traditional manual oil sampling only provides a snapshot in time. The HYDRAN M2 provides 24/7 visibility into transformer health. It detects hydrogen and composite fault gases that indicate arcing, partial discharge, or thermal degradation.
Typical applications include:
- Transmission Transformers: Continuous monitoring of high-voltage grid transformers to prevent catastrophic failures and unplanned outages.
- Substation Assets: Providing real-time DGA and moisture data for critical substation transformers to extend equipment life.
- Industrial Power Plants: Monitoring large step-down transformers in manufacturing facilities to ensure continuous power supply.
- Asset Management: Integrating with SCADA systems to enable predictive maintenance based on actual fault gas trends rather than fixed time intervals.
Our Quality Standard & Testing Process
We understand that a failed transformer monitor can leave critical assets unprotected. We have established a rigorous testing protocol to ensure every HYDRAN M2 unit we ship performs to specification.
- Visual & Component Inspection: Every unit undergoes professional cleaning and inspection. We check the gas-permeable membrane, sensor housing, enclosure seals, and connector integrity.
- Live System Test: The monitor is installed in a test setup with simulated transformer oil conditions. We verify boot sequence, self-diagnostics, and sensor initialization.
- Full-Function Diagnostics: We verify gas measurement accuracy against calibrated reference standards. We confirm moisture sensor response and alarm relay functionality.
- Warranty Backing: Only units that pass all diagnostic tests are approved for shipment. Every unit is backed by our full 12-month warranty against manufacturing defects.

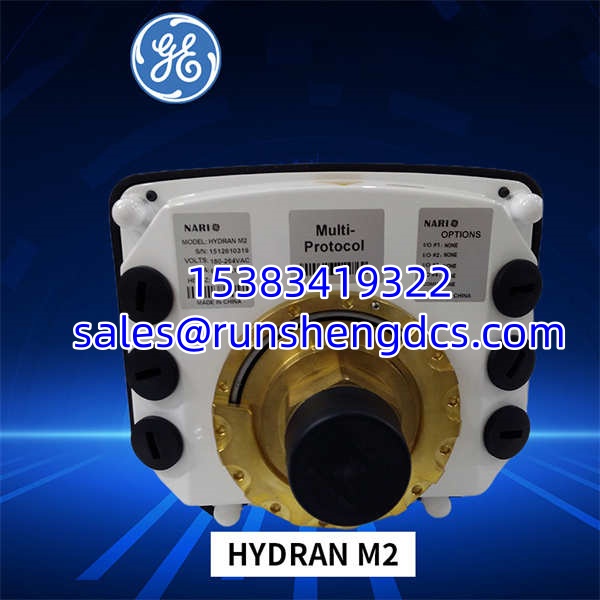

GE HYDRAN M2
Compatibility & Migration Paths
To ensure this HYDRAN M2 is 100% compatible with your transformer and monitoring infrastructure, you must verify these key points. Incorrect installation or configuration can lead to false alarms or missed fault detection.
- Sensor Configuration: Confirm whether your application requires the hydrogen-only sensor or the composite gas sensor. The composite sensor responds to H2, CO, C2H2, and C2H4. Check your existing unit’s sensor type before ordering.
- Communication Protocol: Verify your SCADA or DCS system supports the required protocol. RS-485 is standard. Ethernet TCP/IP or fiber optic options must be specified at order time.
- Replacement & Alternatives: The HYDRAN M2 replaces older HYDRAN 201i models with added moisture monitoring capability. If you are upgrading from a 201i, confirm your mounting valve is compatible with the M2’s single-valve installation.
- Get Expert Help: Unsure about sensor type or communication requirements? Contact our technical team today for a free compatibility check. Send us a photo of your existing HYDRAN unit label and we will confirm the exact match before you buy.
