Description
Key Technical Specifications
- Product Model: EX2100 / EX2100e
- Manufacturer: GE Vernova
- Product Type: Digital Static Excitation Control System
- Controller Family: Mark VIe (UCSB/UCVE processors)
- Input Voltage: 38-115 VAC (Control Power), Generator Terminal/Bus (Power)
- Output Capacity: 1000A to 2000A DC (per Power Conversion Module)
- Communication: 10/100 Mbps Ethernet (Unit Data Highway), Modbus TCP
- Redundancy: Hot Standby Regulator, Multi-Bridge Power Rectifiers
- Protection: Loss of Excitation (40EX), Overvoltage (59EX), V/Hz Limiter
- Software: ControlST, ToolboxST, CIMPLICITY HMI
- Cooling: Forced Air (Redundant Fans)
- Compliance: IEEE 421.5, IEC 61131-3
Product Introduction
You’re standing in front of a generator that’s suddenly refusing to build voltage, or the HMI is screaming about a “Regulator A Fault.” The GE EX2100 is the brain behind that magnetic field, taking raw AC and converting it to precise DC field current. It’s not just an AVR; it’s a full static excitation system that talks directly to your Mark VIe turbine control over Ethernet. No gateways. No third-party translators. Just peer-to-peer data on the Unit Data Highway.
Why does this matter for your spare parts strategy? Because the GE EX2100 uses modular Power Conversion Modules (PCMs). If one bridge fails, the system can often limp along on the remaining bridges while you hot-swap the bad PCM. That’s the difference between a 4-hour outage and a 4-day generator tear-down. The GE EX2100 was designed for continuous operation in gas, steam, and hydro plants, with redundant control power supplies and fans that can be replaced while the unit is online.
Troubleshooting Quick Reference
- Regulator A/B Fault Alarm:
- Cause: Controller mismatch, comms loss, or failed UCSB board.
- Relevancy: 85% chance it’s a communication or config issue.
- Quick Check: Verify Ethernet link lights on UCSB. Check ControlST for “Sync Lost.”
- Fix: Reseat UCSB. Verify firmware matches between A/B regulators.
- PCM Over-Temperature:
- Cause: Fan failure, clogged filters, or high ambient temp.
- Relevancy: 90% chance it’s cooling-related.
- Quick Check: Listen for fan noise. Check differential pressure across filters.
- Fix: Replace fan assembly (can be done online). Clean/replace air filters.
- Loss of Excitation (40EX) Trip:
- Cause: Field breaker open, PCM failure, or sensor drift.
- Relevancy: Critical safety function. Verify before reset.
- Quick Check: Measure DC field voltage at generator terminals. Check 41A/41B contactor status.
- Fix: Inspect field breaker contacts. Test PCM gate pulse amplifiers.
- V/Hz Limiter Active:
- Cause: Generator overspeed or voltage regulator runaway.
- Relevancy: Protective function. Do not bypass.
- Quick Check: Compare actual frequency vs. voltage ratio.
- Fix: Investigate turbine governor. Check PT/CT wiring for open circuits.
Application Scenarios & Pain Points
- Gas Turbine Combined Cycle: Demands fast response to grid frequency changes. The GE EX2100’s Power System Stabilizer (PSS) is tuned to damp rotor oscillations during load rejects. Pain point: Tuning drift over years. Requires periodic field testing.
- Hydro Peaking Plants: Frequent starts/stops cause thermal cycling on PCMs. The GE EX2100’s modular design lets you swap individual bridges without pulling the whole cabinet. Bottom line—redundancy saves money here.
- Steam Turbine Base Load: Runs for 18 months straight. Cooling fan bearings are the #1 failure mode. The has redundant fans, but if both fail, you’re tripping. Preventive replacement at 50k hours is cheap insurance.
- Real-World Case: A plant engineer faced repeated “PCM Gate Pulse Fault” alarms on a 9FA gas turbine. They replaced two PCMs and the gate pulse amplifier board. Still tripping. Finally, they found a loose ground strap on the exciter transformer neutral. The was seeing noise on the feedback loop and interpreting it as a gate failure. Tightening the ground connection and re-running the self-test cleared the fault permanently. Always check grounding first.

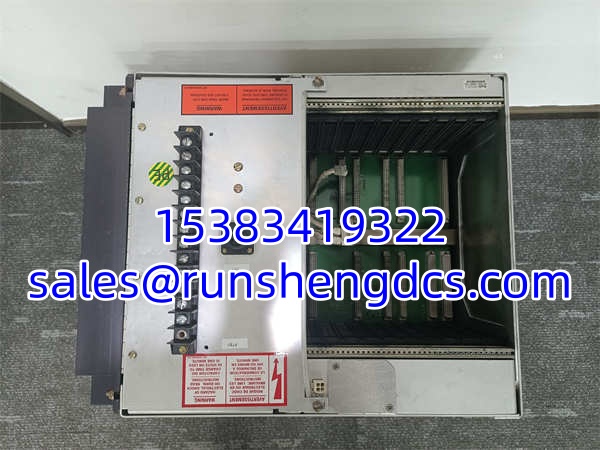

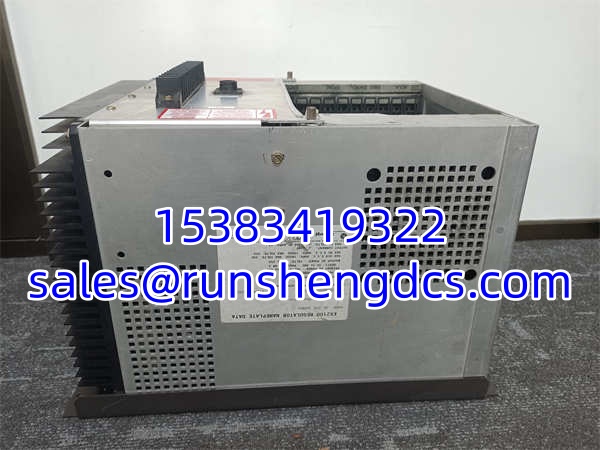

GE EX2100
Compatible Replacement Models
- ✅ Drop-in Replacement: EX2100e (Enhanced). Same footprint, same wiring, same PCM modules. Uses Mark VIe UCSB controllers. Requires ControlST software update. Cost is higher, but you get 2x processing power and web-based diagnostics.
- ⚠️ Software Compatible: (Legacy). Will run existing configuration files, but may lack newer PSS algorithms. Check firmware version in ToolboxST. If you’re below v12.0, plan a 4-hour recompile and download window.
- ❌ Hardware Incompatible: EX2000 or . Different backplane pinouts, different PCM form factor, incompatible gate pulse wiring. Swapping these requires a full cabinet retrofit and rewiring the exciter transformer secondaries. Do not attempt as a field swap.
