Description
Key Technical Specifications
- Processor: Dual-Core ARM Cortex-A9 with Real-Time OS (RTOS)
- Memory: 512MB RAM + 2GB Flash Storage
- Control Capacity: Up to 128 PID Control Loops
- I/O Capacity: Supports up to 1,000 I/O points via FBM expansion
- Cycle Time: Millisecond-level response (Minimum 1ms)
- Communication: 10/100/1000 Mbps Ethernet, Modbus TCP/RTU, OPC UA
- Redundancy: 1:1 Hot-Standby with <100ms Bumpless Transfer
- Power Supply: 24 VDC Input
- Power Consumption: Max 8.5 W per module
- Operating Temp: -40°C to +85°C (Harsh Environment G3 Rated)
- Security: IEC 62443 Compliant, TLS 1.2 Encryption
Product Introduction
When a distillation column needs 128 PID loops running at a 1ms cycle time without dropping a single packet, standard PLCs start to choke. The FOXBORO FCP270 is built specifically for this. It’s a dual-core ARM Cortex-A9 field control processor that sits at the edge of the Foxboro Evo (EcoStruxure) architecture. Instead of pushing all processing to a central server, the FCP270 handles continuous process control, discrete logic, and batch processing (S88) locally.
Bottom line—this module is about keeping the plant running when things go wrong. It supports 1:1 hot-standby redundancy with bumpless transfer in under 100ms, meaning a catastrophic CPU failure won’t trip your safety valves. It also integrates natively with OPC UA and MQTT for IIoT data extraction, bridging the gap between legacy OT control and modern IT analytics. G3 harsh-environment rating means it survives corrosive chemical plants and extreme temperature swings without needing a climate-controlled cabinet.
Troubleshooting Quick Reference
- Fault: Processor fails to sync with redundant pair | Cause: Firmware version mismatch or backplane comm failure | Relevancy: 85% chance | Quick Check: Verify both modules have identical firmware revs | Fix: Flash matching firmware; inspect backplane connectors for corrosion
- Fault: High CPU utilization / Missed scan cycles | Cause: Overloaded PID loops or runaway logic | Relevancy: 70% chance | Quick Check: Check system diagnostics via embedded web server | Fix: Audit control strategy; reduce loop count or optimize code
- Fault: Ethernet link drops intermittently | Cause: EMI on copper or bad fiber transceiver | Relevancy: 60% chance | Quick Check: Check link LEDs; swap fiber patch cable | Fix: Verify shield grounding; replace SFP module
- Fault: Module won’t boot / No status LEDs | Cause: 24VDC power supply failure or blown internal fuse | Relevancy: 90% chance | Quick Check: Measure terminal block for 24VDC ±10% | Fix: Replace power supply; if voltage is good, swap CPU module
Application Scenarios & Pain Points
- Oil & Gas Refining: Managing multi-variable control on fractionation towers where a 100ms delay causes off-spec product. The FCP270’s EXACT® self-tuning PID algorithms reduce manual tuning headaches.
- Chemical Batch Processing: S88-compliant batch management where recipe changes must happen without stopping the line. Local flash storage keeps batch history even if the network goes down.
- Power Generation: Boiler feedwater control with extreme pressure transients. The <100ms redundancy failover ensures turbine protection systems never lose visibility during a CPU switchover.
Real-World Case: Engineer at a Gulf Coast refinery had a legacy FCP270 running a compressor anti-surge control loop. The primary CPU started throwing intermittent watchdog faults. Diagnostics via the built-in HTTPS web server showed memory fragmentation from years of uptime. Swapped in a refurbished FCP270 during a 4-hour turnaround window. Bumpless transfer worked perfectly—zero process upset. The old board wasn’t dead, just exhausted from 8 years of continuous duty.

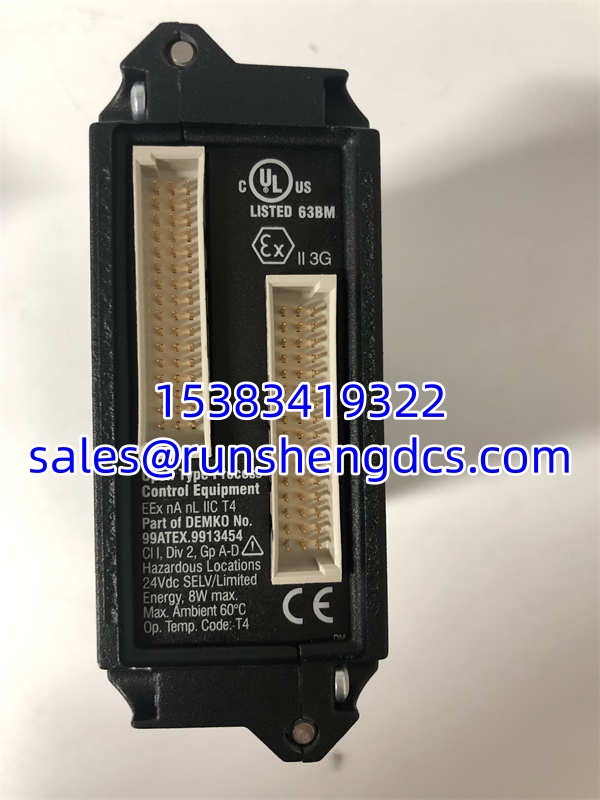

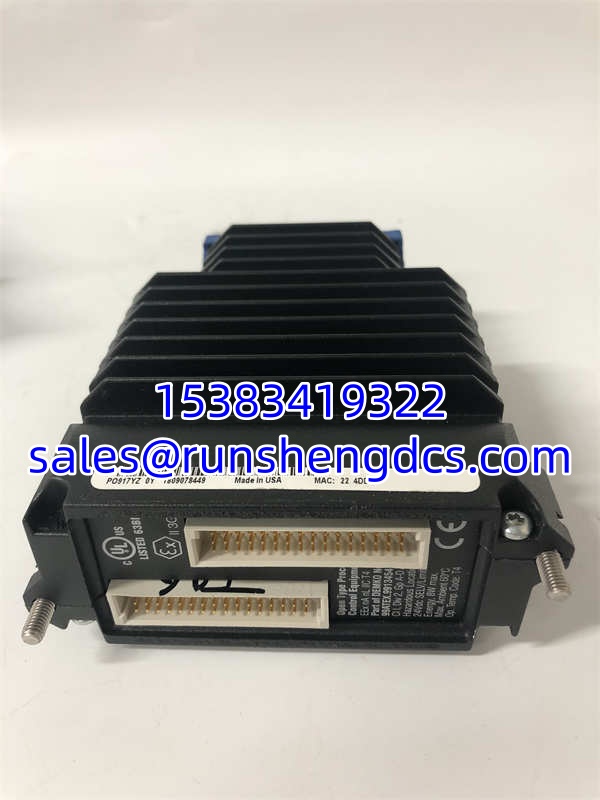

FOXBORO FCP270
Compatible Replacement Models
- ✅ Drop-in Replacement: FCP270 P0917YZ (Exact match. Verify the P0917YZ suffix matches your existing baseplate and firmware). Cost: 1,200-3,500 depending on supplier and condition.
- ⚠️ Software Compatible: FCP280 (RH924YA) — Same Foxboro Evo platform, same Control Builder software. Warning: May require hardware config update and I/O re-mapping. Labor: 4-8 hours for engineering + loop checkout.
- ❌ Hardware Incompatible: FCP250 / FCP260 — Older generation, different backplane pinout and firmware. Do NOT attempt to swap these into an slot. Also incompatible: Schneider Modicon PACs (completely different ecosystem).
