Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Channels | 8 analog outputs |
| Output range | 0 to 20.4 mA DC |
| Channel isolation | Yes, each channel isolated from others and ground |
| Resolution | 13-bit |
| Output load | Max 750 Ω per channel |
| Output processing delay | Max 30 ms |
| Redundancy | Single or redundant pair |
| Communication | Module fieldbus to associated FCM/FCP |
| Power supply | 24 V DC, +5% / -10% |
| Max power dissipation | ~7 W |
| Max heat dissipation | ~5 W |
| Operating temperature | -20 °C to +70 °C |
| Relative humidity | 5% to 95%, non-condensing |
| Environmental rating | Suitable for ISA S71.04 G3 (harsh) environments |
| Altitude | -300 m to +3,000 m |
| Vibration | 7.5 m/s², 5 to 500 Hz |
| Termination | Via compatible terminal assembly / output bypass station |
| HART compatibility | Electrically compatible with standard HART signals |
Product Introduction
Analog output cards fail quietly until a control valve sticks at the wrong position. The FBM237 is an 8-channel, channel-isolated 0–20 mA analog output module for Foxboro I/A Series systems. It does not run control strategy by itself. It converts controller output values into isolated current signals that drive I/P converters, positioners, and final control elements.
Its strongest point is isolation density. Eight independently isolated channels in one FBM reduces ground-loop risk and makes redundancy practical at the module level. With 13-bit resolution and a maximum 30 ms output processing delay, it is adequate for most process control loops. Redundant pairs use an AOUTR function block; when one module fails, its output is driven to 0 mA and the healthy module continues. Confirm terminal assembly type and bypass station compatibility before replacement.
QA/QC Transparency SOP
- Intake & Origin Verification: Record full model number, P-number, revision, and serial number. Reject units with burnt smell, corroded terminals, broken connectors, or mismatched labels.
- Live Functional Testing: Install the FBM237 in a compatible I/A Series test rack. Power with 24 V DC. Write output commands to each of the eight channels and measure current with a calibrated mA meter. Verify 0 mA, 4 mA, 12 mA, and 20 mA points.
- Electrical Parameter Tests: Measure supply current, channel insulation resistance, and output loop compliance. Confirm no cross-channel leakage and no short-to-ground faults.
- Firmware/Config Verification: Read module identity and health status over the module fieldbus. Confirm the module is recognized by the associated FCM/FCP and reports no internal faults.
- Final QC & Anti-Static Packaging: Tag with serial number, test results, and channel pass/fail status. Pack in anti-static material with desiccant. Do not release without a matched serial-to-report record.
Field Engineer Gotchas
- Wrong terminal assembly: The FBM237 requires a compatible terminal assembly. Using the wrong TA, or skipping the bypass station when required, can interrupt output during replacement. Solution: verify TA part number and bypass station configuration before removal.
- Redundancy wiring error: In redundant pairs, both modules must share the correct common termination. If wired as two independent outputs, the redundancy logic will not behave as expected. Solution: follow the redundant AO wiring diagram exactly.
- Load impedance too high: The module supports up to 750 Ω per channel. Adding long cable runs, isolators, or extra devices can push loop impedance beyond limit and cause output saturation. Solution: measure total loop resistance before commissioning.
- 0 mA fail-safe confusion: Redundant FBM237 pairs drive the failed channel to 0 mA. If the field device interprets 0 mA as “full open” or “trip,” the process response may be opposite of expectation. Solution: verify valve fail position and I/P behavior before enabling redundancy.
- Part number ambiguity: P0914XS, RH914XS, and P0917QZ appear in different listings. Do not assume they are interchangeable. Solution: match the exact P-number and revision to the existing I/A Series configuration.

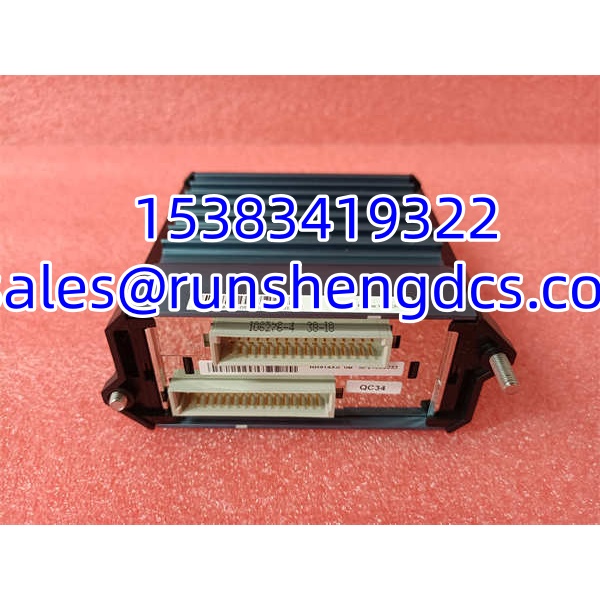

FOXBORO FBM237 RH914XS
Application Scenarios
- Refinery crude unit level control: Drives multiple control valve positioners from a single FBM while keeping each channel isolated to avoid ground loops across long cable runs.
- Chemical reactor temperature cascade: Provides isolated 4–20 mA outputs to cooling valve positioners where redundant output behavior must be predictable during module failure.
- Power plant feedwater control auxiliary: Supplies analog outputs to auxiliary dampers and bypass valves in an I/A Series system where legacy FBM replacement is required.
- Pulp and paper chemical dosing: Controls metering pump speed references via isolated 4–20 mA signals, reducing noise from variable-frequency drives.
FAQ
Is FBM237 an input or output module?
It is an analog output module. It provides eight isolated 0–20 mA DC outputs.
What does P0914XS mean versus RH914XS?
P0914XS is the common Foxboro part number for the analog output module. RH914XS appears in some listings as a related identifier. Treat them as potentially different revisions or vendor labels; verify against the OEM documentation before substitution.
Can it run in redundant mode?
Yes. Two modules can operate as a redundant pair. If one fails, its output is driven to 0 mA and the healthy module continues.
What is the maximum loop load?
750 Ω per channel. Exceeding this will prevent the output from reaching full scale.
Does it support HART devices?
It is electrically compatible with standard HART signals, but HART communication depends on the full loop design, isolators, and modem placement. Do not assume HART will work without verifying the loop.
Is this still available new?
Most market supply is surplus or refurbished. Verify serial number, revision, terminal assembly compatibility, and test history before purchase.
