Description
Key Technical Specifications
- Channel Count: 8 Individually Isolated Analog Inputs
- Signal Type: 4-20mA Analog + HART FSK Digital
- Redundancy: Module Pair (Master/Tracker) at FBM Level
- Isolation: Channel-to-Channel, Channel-to-Ground, Channel-to-Logic
- HART Support: Universal Commands, Device-Specific, No Burst Mode
- Update Rate: ~100ms per channel; ~2 HART msgs/sec/channel
- Accuracy: ±0.075% Full Scale (Typical)
- Resolution: 15-Bit ADC
- Power Supply: 24V DC (±5%), Internal Isolated per Channel
- Environment: ISA S71.04 Class G3 (Harsh)
- Temp Range: -20°C to +70°C
- Terminal Assembly: Requires TA (e.g., TB271 or similar)
Product Introduction

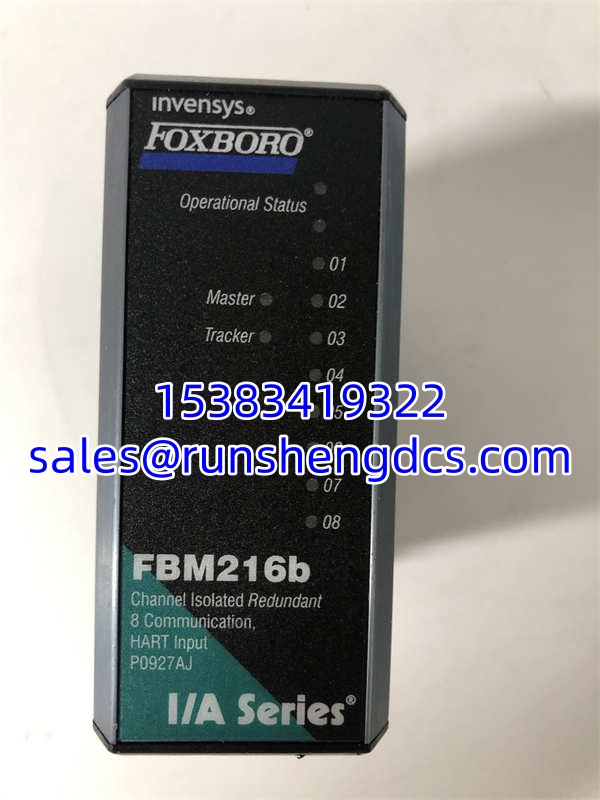

You’ve got a HART field device screaming for attention, but your old AI card only reads 4-20mA. The FOXBORO FBM216b is the fix. It’s an 8-channel redundant input module that doesn’t just measure current—it actively talks to your smart transmitters via dedicated FSK modems on every single channel. No shared modem bottleneck. Designed for the I/A Series, it runs in Master/Tracker pairs, so if one card dies, the other takes over without a hiccup. Honestly, if you’re running HART assets on Foxboro, this is the workhorse for critical loops.
Why keep it? Because ripping out HART wiring and re-commissioning 200+ devices costs 50x the card price. The FOXBORO FBM216b gives you ±0.075% accuracy and 15-bit resolution while pulling device diagnostics, calibration dates, and alarm flags directly into the DCS database. It handles G3 harsh environments (corrosive gas, high vibration) without flinching. Just make sure you’ve got the right Terminal Assembly (TA)—the card itself is useless without the matching wiring interface.
Troubleshooting Quick Reference
| Fault Symptom | Probable Cause | Relevancy | Quick Check | Fix |
|---|---|---|---|---|
| HART Comm Fail | Wrong TA / Wiring | High | Verify TA P/N; check FSK wiring | Confirm pinout; swap TA |
| Redundancy Loss | Tracker Not Synced | High | Check FBM pair status in DCS | Reseat both cards; verify config |
| Noisy 4-20mA | Ground Loop | Med | Measure channel-to-ground V | Isolate shield; check TA grounding |
| All Channels Dead | 24V Supply Loss | High | Measure TB terminal voltage | Check PSU; replace fuse |
| Intermittent HART | Cable Length / Noise | Med | Check <1500m; shield integrity | Shorten run; add balun if needed |
Application Scenarios & Pain Points
- Refinery Critical Loops: Pressure/Temp transmitters on reactors. The FOXBORO FBM216b provides redundant 4-20mA + real-time HART diagnostics for predictive maintenance. Pain point: Single-point failure on AI card causes trip; redundancy prevents it.
- Pharma Batch Processing: Clean-in-place (CIP) system monitoring. The FOXBORO FBM216b validates sensor calibration status via HART before batch start. Pain point: Manual calibration checks waste 2 hours; HART auto-verifies in seconds.
- Power Plant BOP: Cooling water pump monitoring. The FOXBORO FBM216b handles long cable runs with FSK signal integrity. Pain point: Analog-only cards miss early bearing wear; HART vibration data catches it.

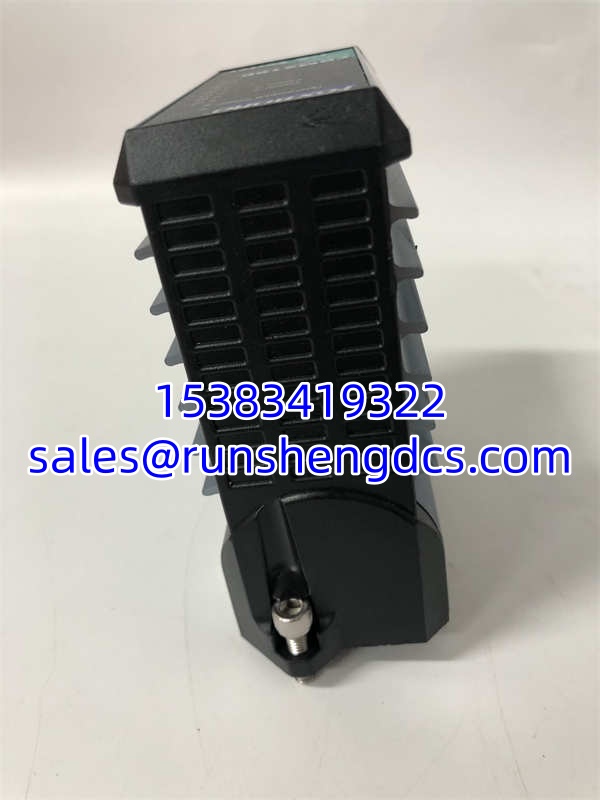

FOXBORO FBM216b
Compatible Replacement Models
- ✅ Drop-in Replacement: FOXBORO FBM216b (P0927AJ). Verify TA terminal assembly P/N matches your wiring. Cost: ~2k-7k refurbished (varies wildly by supplier).
- ⚠️ Software Compatible: FOXBORO FBM214b (Non-redundant HART). Same form factor, same HART support, but no redundancy. Requires config change; no recompile. Labor: ~1 hour (config + test).
- ❌ Hardware Incompatible: FOXBORO FBM201 (Standard 4-20mA, no HART). Same slot, same power, but zero HART capability. Do not buy unless you’re deleting all HART devices.
