Description
Key Technical Specifications
- Model Number: VE3008
- Part Number: 12P6381X022 / KJ2005X1-MQ1
- Manufacturer: Emerson
- Product Type: DeltaV MQ Controller Module
- Core Function: Field device integration & control network node
- Communication: DeltaV Control Network (Ethernet)
- Marshalling: Supports CHARM-based Electronic Marshalling
- Redundancy: Dual Redundant Controller Support
- Operating Temp: 0°C to +60°C
- Mounting: DeltaV S-Series / M-Series Carrier
Functional Role & Application Analysis
The Emerson VE3008 (KJ2005X1-MQ1) is the processing heart of the DeltaV MQ controller family. It is designed to solve the complexity of traditional hardwired marshalling by integrating field devices directly onto the control network. This module handles the heavy lifting of communication, control logic execution, and data synchronization for small to moderate process areas. By centralizing these functions, the VE3008 reduces cabinet footprint and wiring costs while maintaining deterministic control performance.
Typical use cases include:
- Distributed Process Control: Managing local control loops for skids, packages, or remote plant areas without a full-sized controller.
- Electronic Marshalling: Acting as the CHARM interface node, allowing flexible reassignment of I/O types without rewiring.
- Legacy System Maintenance: Replacing failed MQ controllers in existing DeltaV installations to restore critical process visibility and control.
Our Quality Standard & Testing Process
A failed controller in a DeltaV system can compromise an entire process area. We do not take chances. Every VE3008 undergoes a rigorous validation protocol to ensure it meets Emerson’s original performance standards before shipment.
- Visual & Component Inspection: PCBs are inspected under magnification for cold solder joints, capacitor bulging, or connector pin damage common in aged electronics.
- Live System Test: The VE3008 is installed in a live DeltaV test rack and commissioned to verify successful network registration and redundancy synchronization.
- Full-Function Diagnostics: We execute control logic and communication stress tests to confirm the module can handle full I/O load and network traffic without latency.
- Warranty Backing: Only units passing all diagnostic tests are approved for shipment and backed by our full 12-month warranty.

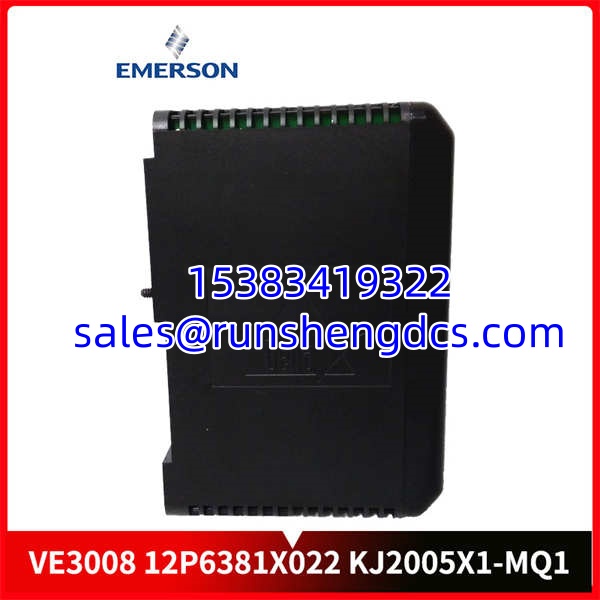

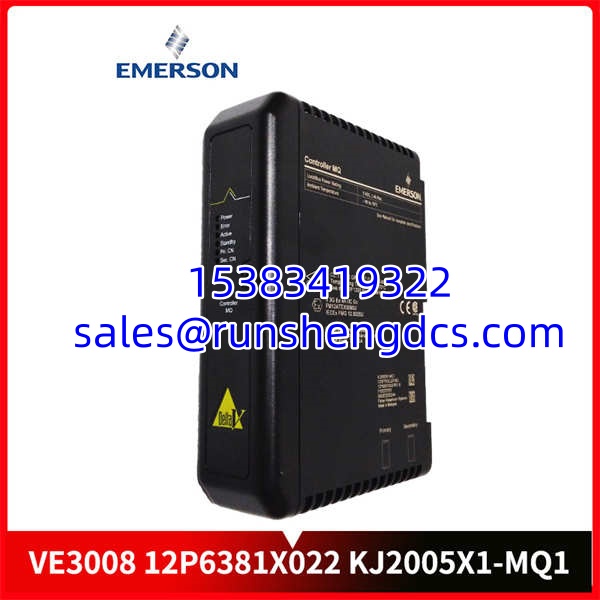

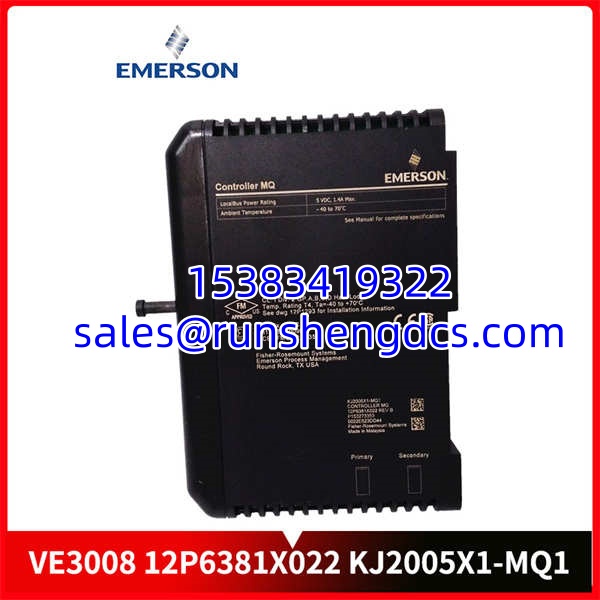

EMERSON VE3008-12P6381X022-KJ2005X1-MQ1
Compatibility & Migration Paths
To ensure this VE3008 (KJ2005X1-MQ1) integrates without issues, you must verify these critical parameters. Controller compatibility is not just about the part number; it’s about the system state.
- Firmware/Hardware Revisions: Confirm your DeltaV system version supports the 12P6381X022 hardware revision. Mixing incompatible revisions in a redundant pair will cause synchronization failures.
- Required Components: Verify you have the correct carrier and power supply. The requires specific backplane power and carrier keying to seat properly.
- Replacement & Alternatives: This model is part of the MQ family. If your application has outgrown MQ capacity, we can evaluate if an upgrade to a larger DeltaV controller is more cost-effective than replacing multiple units.
- Get Expert Help: Unsure about your system version or redundancy requirements? Contact our technical team today for a free compatibility check.
