EMERSON A6370D | Overspeed Protection Monitor In Stock

Description

Key Technical Specifications

Product Introduction

Turbine overspeed isn’t a maintenance issue; it’s a catastrophic event waiting to happen. The EMERSON A6370D is the dedicated safety brain for the AMS 6300 SIS, designed to monitor rotational speed and execute protective trips before mechanical failure occurs. Unlike generic PLC inputs, the EMERSON A6370D is engineered specifically for safety integrity, continuously comparing sensor signals against set limits and signaling alarms or trips within 50ms if thresholds are breached.

The engineering reality of this module is its versatility with sensor inputs. It accepts eddy current, Hall effect, and magnetic (VR) sensors, making it a universal fit for legacy and modern turbine installations. With an accuracy of ±0.5% and a robust -20°C to +60°C operating range, the EMERSON A6370D maintains precision in the harsh environments typical of power generation and petrochemical plants. Bottom line — it is a non-negotiable safety layer. Just ensure you have the correct A6371 backplane, as this module cannot function in isolation.

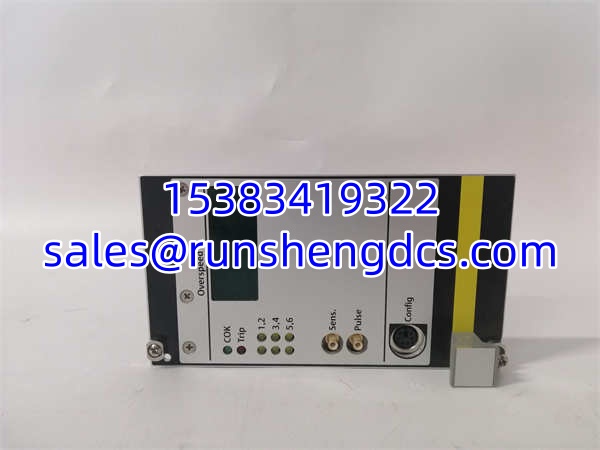

EMERSON A6370D

QA/QC Transparency SOP

1. Intake & Origin Verification: We verify the EMERSON A6370D serial number and inspect the A6371 backplane connector for bent pins or carbon tracking from previous arc events.
2. Live Functional Testing: Modules are mounted on an A6371 test backplane. We inject simulated RPM signals to verify trip setpoints trigger relays within the <50ms spec.
3. Electrical Parameter Tests: We verify the 24V sensor supply output is stable and check for short-circuit protection functionality. Input power tolerance is tested at both 12V DC and 240V AC.
4. Firmware/Config Verification: We read the configuration via RS-485 to ensure the module isn’t locked or set to an obsolete trip logic profile from a previous site.
5. Final QC & Anti-Static Packaging: Relay contacts are checked for continuity. The EMERSON A6370D is sealed in an ESD bag with a functional test certificate and connector caps.

Field Engineer Gotchas

• Backplane Mismatch: The requires the A6371 backplane. It will not fit or function in a standard PLC rack. I’ve seen procurement order the card but forget the backplane, leading to a week-long delay while the rack adapter was sourced.
• Sensor Type Confusion: This module handles Eddy Current, Hall, and VR sensors, but not simultaneously on the same channel without configuration. If you swap a VR sensor for an Eddy Current probe and the module faults, check the input configuration jumpers or software settings immediately.
• Trip Relay Wiring: The relay outputs are potential-free. Don’t assume they source 24V. If your shutdown solenoid isn’t energizing, verify you have external loop power. I’ve seen techs blame a “bad card” when it was just a blown fuse in the solenoid circuit.
• ESD Sensitivity: The sensor input stage is highly sensitive. Never plug in an eddy current probe while the is powered. A static discharge from the probe shield can fry the input op-amps instantly. Always ground yourself and the probe before connection.

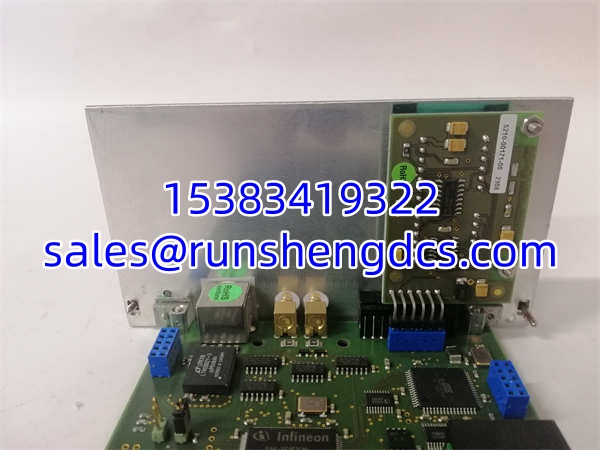

EMERSON A6370D

Application Scenarios

• Steam Turbine Protection: High-pressure steam turbines require immediate trip on overspeed. The monitors shaft RPM via eddy current probes and de-energizes the trip solenoid in <50ms if limits are exceeded, preventing blade liberation.
• Gas Compressor Drivers: Compressor surge and overspeed are linked risks. The integrates with the AMS 6300 system to provide redundant speed monitoring, ensuring SIL-rated protection even if the primary control system fails.
• Hydro Generator Guard: Hydro units have low inertia but high torque. The ‘s fast response time is critical here, as mechanical overspeed can occur in milliseconds during load rejection.

FAQ

• Can I use this with a standard PLC rack?
  No. The is designed exclusively for the AMS 6300 SIS architecture and requires the A6371 backplane. It is not a generic I/O card.
• Does this support hot-swapping?
  Generally, no. While the backplane may support it, replacing a safety monitor like the typically requires a controlled shutdown or bypass procedure to prevent a nuisance trip during the swap. Check your SIS manual.
• What sensors are compatible?
  The supports Eddy Current, Hall Effect, and Magnetic (VR) sensors. Verify the specific sensor model matches the module’s input impedance and voltage requirements.
• Is this SIL 3 rated?
  The is a component of a SIL 3 capable system (AMS 6300). The rating depends on the system architecture (e.g., 1oo2 vs 2oo3). Verify your specific safety integrity level calculation.
• Why is my LED flashing red?
  A flashing red LED typically indicates a sensor fault or a configuration mismatch. Check for open circuits, short circuits, or incorrect sensor type settings. A solid red usually means an active overspeed alarm.
• Can I configure this via RS-485?
  Yes. The has an RS-485 port for configuration and diagnostics. You’ll need the appropriate Emerson/AMS software and a USB-to-RS485 converter.
• What is the max RPM range?
  The covers 0 to 10,000 RPM. For applications exceeding this, verify if a high-speed variant or gear ratio adjustment is required.
