Description
Key Technical Specifications
- Output Voltage: 24V DC
- Output Current: 10A (Typical for this form factor)
- Output Power: 60W (Typical)
- Module Type: Ovation I/O Base Power Supply
- System Compatibility: Emerson Ovation DCS, Legacy Westinghouse Ovation
- Mounting Style: Base-mounted or DIN-Rail (Verify specific base requirement)
- Input Voltage: Wide Range AC Input (Typically 85-264V AC)
- Thermal Management: Convection cooled, requires adequate clearance
- Status Indicators: LED for Power OK / Fault
- Protection: Over-voltage, Over-current, Short-circuit protection
- Application: Chemical, Power Generation, Petrochemical DCS
- Warranty: Typically 1 Year from Surplus Suppliers
Product Introduction
You’re standing in front of an Ovation cabinet, and the “Base Power Fail” LED is glowing red. The 1X00781H01L isn’t just a brick; it’s the heart of that I/O base. When this 24VDC supply sags or dies, you don’t get a graceful shutdown. You get a cascade of I/O faults, controller handshakes failing, and potentially a unit trip if it’s a safety-critical base. This module takes raw AC and delivers clean, regulated 24VDC to the backplane. No margin for error.
Here’s the catch with Ovation power: they age. The electrolytic caps inside dry out after 15-20 years, and the output ripple creeps up before the voltage actually drops. You might see intermittent I/O errors that vanish when you wiggle the card, but the real culprit is a tired power supply. Bottom line—don’t wait for the red LED. If your Ovation system is over 15 years old and you’re seeing weird base faults, replace this proactively. A $2,000 power supply is cheaper than a turbine trip.
Troubleshooting Quick Reference
| Fault Symptom | Probable Cause | Relevancy | Quick Check | Fix |
|---|---|---|---|---|
| Base Power Fail LED On | Supply failure or backplane short | High (85%) | Measure 24VDC at base terminals | Check for shorted I/O card; replace PSU if isolated |
| Intermittent I/O Faults | Output ripple / Aging caps | High (70%) | Scope 24VDC output for ripple >100mV | Replace PSU; aging caps cause noise |
| Overcurrent Trip | Shorted I/O card or wiring | Medium (60%) | Isolate I/O cards one-by-one | Identify shorted card; replace PSU if no short |
| No Output / Dead | Input fuse blown or rectifier fail | Medium (50%) | Check AC input voltage and internal fuse | Verify AC source; replace PSU if fuse intact |
| Overtemp Shutdown | Blocked airflow / Fan failure | Low (30%) | Check cabinet cooling and PSU clearance | Clean filters; verify fan operation; improve ventilation |
Application Scenarios & Pain Points
- Coal-Fired Power Plants: Ovation systems running 24/7 for 20+ years. Pain point: Power supply capacitors fail during summer heatwaves. The 1X00781H01L’s convection cooling struggles when cabinet AC fails. Proactive replacement during outages is mandatory.
- Petrochemical Refineries: Harsh EMI environments with VFDs and large motors. Pain point: Electrical noise couples into aging power supplies, causing I/O corruption. Shielding degrades over time. The PSU becomes the weak link in signal integrity.
- Water Treatment Facilities: Remote stations with unstable grid power. Pain point: Voltage sags and surges stress the 1X00781H01L’s input stage. Brownouts cause repeated restart cycles that shorten lifespan. UPS backup is non-negotiable.
- Pulp & Paper Mills: High humidity and chemical corrosion. Pain point: Conformal coating on the PSU degrades, leading to tracking and failure. Cabinet sealing is critical. Visual inspection for corrosion is part of preventive maintenance.
Field Note: Engineer at a combined-cycle plant had a base throwing random I/O faults every 3-4 days. Swapped cards, checked wiring, re-terminated connections. Nothing. Scoped the 24VDC rail and found 250mV ripple at 120Hz. The 1X00781H01L’s filter caps were toast. Replaced the supply, faults vanished. Always scope before you swap cards.

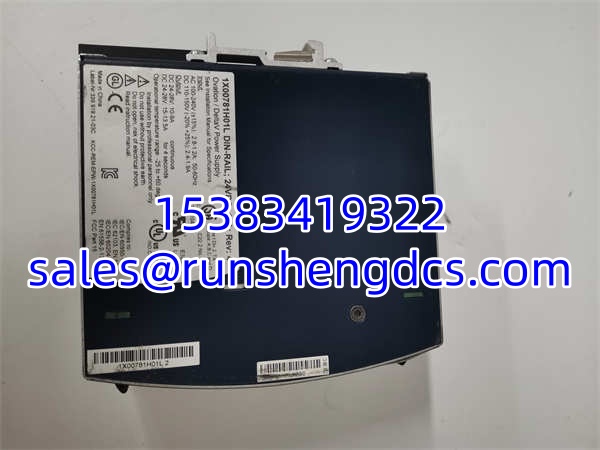

EMERSON 1X00781H01L
Compatible Replacement Models
- ✅ Drop-in Replacement: 1X00781H01L (Exact match). Note: Verify output current rating (10A vs. older 5A variants). Surplus prices range 2,750–6,600. Demand a test report at full load before purchase.
- ⚠️ Software Compatible: 1X00924H01L (Higher capacity 40A variant). Physically compatible in most Ovation bases, but verify base power distribution limits. May require configuration update. Labor: 1-2 hours. Overkill for most bases, but future-proofs.
- ❌ Hardware Incompatible: Generic 24VDC DIN-Rail Supply. Do not attempt to adapt. Ovation bases require specific power sequencing and status signaling. A generic supply will not provide the “Power Good” signal to the controller, causing base faults. Requires full base rework.
