Description
Key Technical Specifications
- Model Number: 1C31166G02
- Manufacturer: Emerson
- Series/System: Ovation Distributed Control System (DCS)
- Module Type: Serial Link Controller (LC EMOD)
- Processor: 32-bit RISC Processor
- Dimensions: 170mm x 105mm x 32mm
- Weight: Approximately 120g
- Operating Temperature: -20°C to +50°C
- Storage Temperature: -40°C to +70°C
- Environmental Humidity: 5% to 95% Relative Humidity (Non-condensing)
Functional Role & Application Analysis
The Emerson 1C31166G02 is a Serial Link Controller module designed specifically for the Ovation DCS platform. In large-scale process control environments, you cannot rely solely on native I/O. This module solves the integration challenge by bridging the Ovation network with serial-based field devices, sub-systems, and third-party equipment. It combines the centralized management and distributed control philosophy of the Ovation DCS with the flexibility of serial communication, allowing operators to monitor and control remote assets from the main control room.
Engineers deploy this module in complex process environments:
- Third-Party Equipment Integration: Connecting packaged equipment (like compressors, chillers, or skids) that only offer RS-232/485 serial interfaces to the Ovation DCS.
- Legacy Device Migration: Incorporating older serial-based instruments into a modern Ovation control architecture without replacing the field devices.
- Distributed Serial Networks: Utilizing serial communication’s low wiring cost to connect geographically dispersed devices over long distances within a plant.
- System Maintenance & Upgrades: Sourcing exact replacements for failed serial link controllers in aging Ovation DCS installations to restore critical communication paths.
Our Quality Standard & Testing Process
A failed serial controller can sever communication with critical sub-systems, leaving operators blind to important process data. We test every 1C31166G02 to verify its communication integrity and processing capability.
- Visual & Component Inspection: We inspect the 32-bit RISC processor area and serial port connectors for physical damage, corrosion, or thermal stress on the PCB.
- Live System Test: The module is installed in an Ovation test chassis and powered up. We run a continuous burn-in to verify stable processor operation and power draw within the -20°C to +50°C operating envelope.
- Full-Function Diagnostics: We establish serial communication links, verify data transmission and exchange protocols, and confirm the module integrates correctly with the Ovation DCS network.
- Warranty Backing: Only modules that pass all communication and functional diagnostics ship with our 12-month warranty. Any unit with marginal serial performance is rejected.

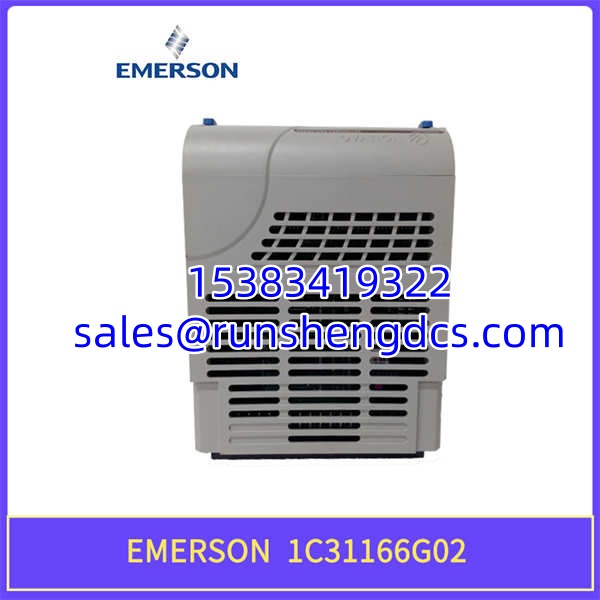

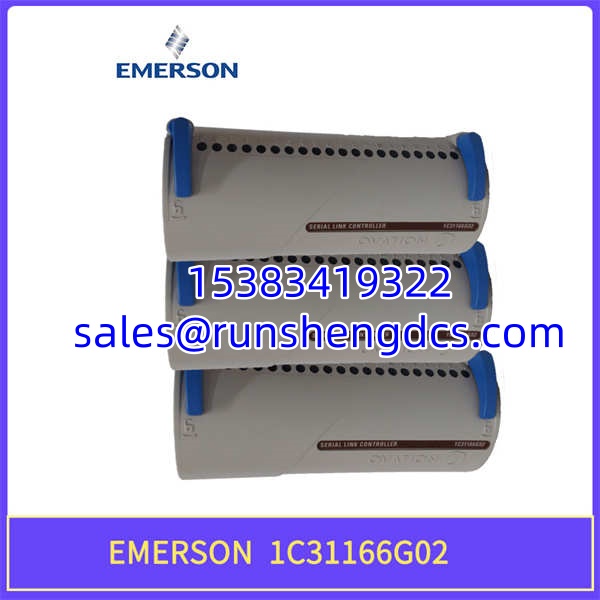

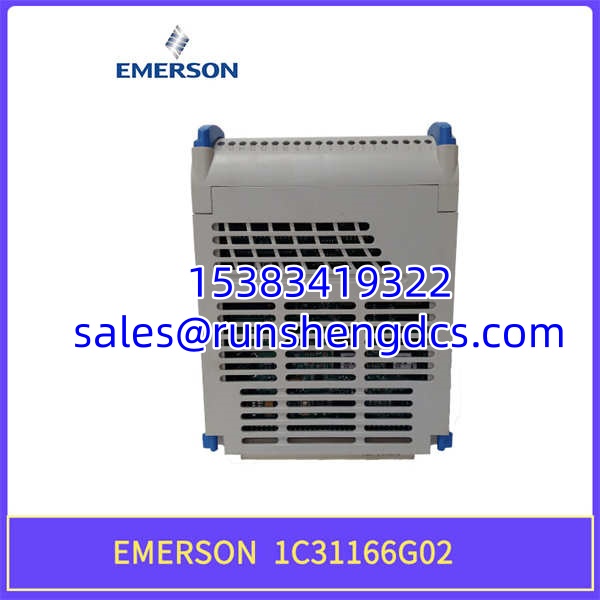

EMERSON 1C31166G02
Compatibility & Migration Paths
The Ovation platform has strict hardware and firmware requirements. The 1C31166G02 must match your system’s configuration. Verify these points before ordering:
- Module Type Confirmation: Confirm you require a Serial Link Controller (LC EMOD) and not a different Ovation I/O module. The 1C31166G02 is specifically designated for serial communication tasks.
- Ovation DCS Version: Verify your Ovation DCS software version supports this specific serial link controller revision. Older DCS versions may require configuration updates to recognize newer modules.
- Serial Protocol Matching: Ensure the serial communication parameters (baud rate, parity, stop bits) configured in Ovation match your connected field devices. The module supports standard serial rates but must be configured correctly.
- Environmental Compliance: If your installation environment exceeds the -20°C to +50°C operating range or has high humidity, verify you have appropriate cabinet conditioning. Non-condensing humidity is required.
- Get Expert Help: Unsure if this serial link controller is compatible with your Ovation DCS version or connected devices? Contact our technical team with your system configuration for a free compatibility check.
