EMERSON 1000554 | Control Interface Board, In Stock

Description

Key Technical Specifications

Product Introduction

Legacy DCS systems often struggle to talk to modern field devices, creating data silos and integration headaches. The EMERSON 1000554 solves this by serving as a universal translator, bridging the gap between your Emerson DeltaV/Ovation controllers and third-party equipment using standard industrial protocols. It handles the heavy lifting of signal conversion and protocol translation right at the I/O level, keeping your main controller free for critical logic.

This module packs a dense I/O count (16 DI, 8 AI, 8 DO, 8 AO) with support for Modbus, Profibus, CAN, and Ethernet/IP in a single compact package. Built to survive -40°C to +85°C environments with IP65 protection, it’s designed for harsh industrial cabinets where standard commercial boards would fail. Bottom line — if you’re integrating a new skid into an old DeltaV system and don’t want to reprogram the entire DCS, this board is your shortcut. Just verify the exact protocol firmware version matches your network configuration.

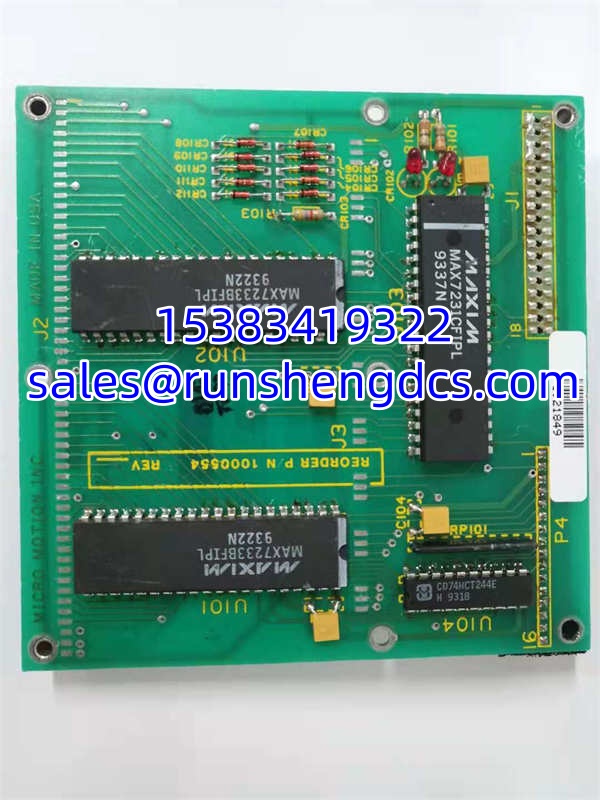

EMERSON 1000554

QA/QC Transparency SOP

We don’t just check if the LEDs light up. Every EMERSON 1000554 goes through a strict 5-step validation:

1. Intake & Origin Verification: We verify the 1000554 part number and inspect the DIN rail clips and terminal blocks for physical damage or corrosion.
2. Live Functional Testing: The board is mounted on a live DeltaV/Ovation test rack. We force all 32 I/O points and verify the protocol stack responds to Modbus/Profibus polls without timeouts.
3. Electrical Parameter Tests: Using a Fluke multimeter, we check the 24VDC input regulation and verify isolation between analog and digital grounds.
4. Firmware/Config Verification: We read the onboard firmware revision to ensure it matches the expected baseline for your specific DCS generation.
5. Final QC & Anti-Static Packaging: The unit is sealed in an ESD-safe bag with a printed test certificate showing I/O pass/fail status and protocol communication logs.

Field Engineer Gotchas

• Protocol Firmware Mismatch: The 1000554 supports multiple protocols, but they’re often firmware-locked. War story: Saw a tech install a Profibus-configured board on a Modbus network and wonder why it wouldn’t talk. Always check the firmware label or config file before mounting.
• Analog Signal Grounding: The 8 AI channels share a common ground. If you’re mixing grounded and floating sensors, you’ll get 60Hz hum or offset errors. Isolate your signal grounds at the field device, not the card.
• DIN Rail Grounding: The IP65 rating relies on proper chassis grounding. If you mount this on a painted DIN rail without a grounding clip, EMI will corrupt your Modbus comms. Scrape the paint or use a star washer.
• Terminal Torque: The spring-clamp terminals are sensitive to over-torquing. Don’t crank them down with a power driver. Hand-tighten plus a quarter turn. I’ve seen techs crack the terminal blocks trying to “secure” them.

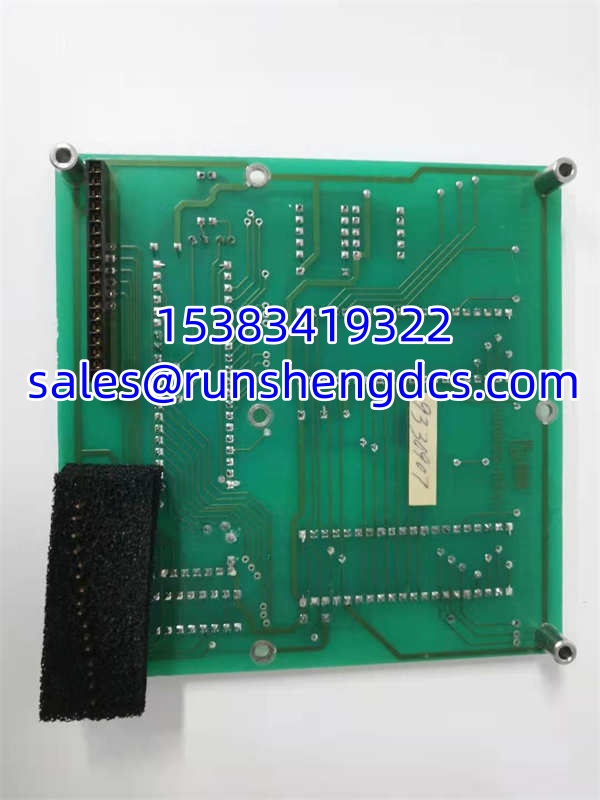

EMERSON 1000554

Application Scenarios

• DeltaV Skid Integration: Bridges third-party compressor skids to existing DeltaV networks without requiring a full DCS I/O expansion.
• Ovation Plant Retrofits: Adds modern Ethernet/IP connectivity to aging Ovation systems for new packaging lines or utility monitoring.
• Water Treatment SCADA: Handles remote pump station I/O and Modbus polling in unheated outdoor cabinets where the -40°C rating is mandatory.

FAQ

Is the 1000554 compatible with DeltaV S-series controllers?
Yes, but verify the firmware revision. Older S-series controllers may require a specific firmware mask on the 1000554 to recognize the module. Check your DeltaV Configurator compatibility matrix.

Can I use this for both Profibus and Modbus simultaneously?
No. The protocol is typically selected at configuration time and locked. You cannot run dual protocols on the same physical port. Choose your primary network before ordering.

Does this support hot-swapping?
Generally no. While the hardware supports live insertion, the DeltaV/Ovation controller may require a manual “replace module” command in the configuration software to reinitialize the I/O map. Always plan for a brief maintenance window.

What happens if the 24VDC power drops?
The module has undervoltage protection and will gracefully shut down I/O outputs to prevent erratic actuator movement. Power must be cycled to reset after a brownout.

Is this the same as the KJ3242X1-BK1?
They are related but not always interchangeable. The 1000554 is the functional model; KJ3242X1-BK1 is a specific assembly variant. Cross-reference your existing card’s assembly number to ensure mechanical and electrical compatibility.

Can I repair this board in-house?
No. The multi-protocol ASIC and I/O conditioning circuits require factory calibration. Board-level repair is not feasible. Replace with a verified unit.

Does it support 120VAC inputs?
No. All digital I/O are 24VDC only. Applying AC voltage will destroy the input optocouplers instantly. Verify your field wiring before powering up.
