Description

Key Technical Specifications

Model Number: 3500/42M
Manufacturer: Bently Nevada. Series: 3500 Machinery Protection System
Channel Capacity: 4 Channels (Configurable in pairs for dual-function monitoring)
Input Types: Proximity, Velocity, and Acceleration Transducers
Resolution: 24-bit ADC (0.3662A/bit) for high-precision analog measurement
Power Consumption: 7.7 Watts (Requires -24 VDC sensor and axis power)
Signal Processing: Built-in filtering (1X, 2X, Non-1X, Direct, Gap)
Measurement Parameters: Radial vibration, thrust position, differential expansion, eccentricity
Operating Temp: 25°C Nominal (Designed for standard control room environments)
Compliance: API 670 Standard for Machinery Vibration Monitoring

Functional Role & Application Analysis

The 3500/42M serves as the primary vibration and position monitoring engine within the Bently Nevada 3500 Machinery Protection System. It solves the critical engineering challenge of continuously acquiring, conditioning, and analyzing dynamic vibration signals from rotating machinery. By accepting up to four proximity, velocity, or acceleration sensors, the 3500/42M processes raw analog data into actionable static values (such as 1X/2X amplitude and phase, gap, and direct vibration). It then compares these values against user-programmable alert and danger setpoints to trigger protective relays before catastrophic mechanical failure occurs.

Engineers specify the 3500/42M when deploying API 670-compliant protection for large, mission-critical rotating equipment. Its ability to extract casing vibration signals from relative shaft vibrations makes it indispensable for absolute shaft measurements on large steam and gas turbines. The module’s channel-pair configuration allows for flexible monitoring setups, such as assigning channels 1 and 2 to radial vibration while dedicating channels 3 and 4 to thrust position or differential expansion.

Typical use cases include:

Steam and Gas Turbines: Deployed to monitor radial shaft vibration and axial displacement, providing early warning of rotor imbalance, misalignment, or bearing wear.
Centrifugal Compressors: Integrated into the 3500 rack to protect against surge conditions and monitor differential expansion between the rotor and casing.
Power Generation Generators: Used to track eccentricity and REBAM (Rotor Eccentricity and Bearing Alignment Monitor) parameters to prevent stator-rotor rubs.

Our Quality Standard & Testing Process

We understand that the cost of an unreliable protection module is measured in unplanned downtime and potential equipment destruction. A failed monitor can leave a multi-million dollar turbine completely unprotected. We have established a rigorous, multi-stage testing process to ensure every 3500/42M we ship is 100% functional and meets original Bently Nevada specifications.

Visual & Component Inspection: Every board undergoes professional cleaning and microscopic inspection. We verify solder joints, check for electrolytic capacitor degradation, and confirm the backplane connectors show no physical damage or pin deformation.
Live System Test: The module is installed in a live Bently Nevada 3500 test rack. It runs for 24 continuous hours under load to verify continuous operation, thermal stability, and stable TX/RX communication with the 3500/20 interface module.
Full-Function Diagnostics: We inject calibrated vibration signals across all four channels. We verify the 24-bit resolution, validate internal filtering algorithms (1X, 2X, Non-1X), and confirm alert/danger relay trip logic matches the configured setpoints.
Power Supply Verification: We measure the -24 VDC axis and sensor power outputs to confirm they are stable and capable of powering external transducers without voltage sag.
Warranty Backing: Only parts that pass all diagnostic tests are approved for shipment. Every unit is backed by our full 12-month warranty and lifetime technical support.

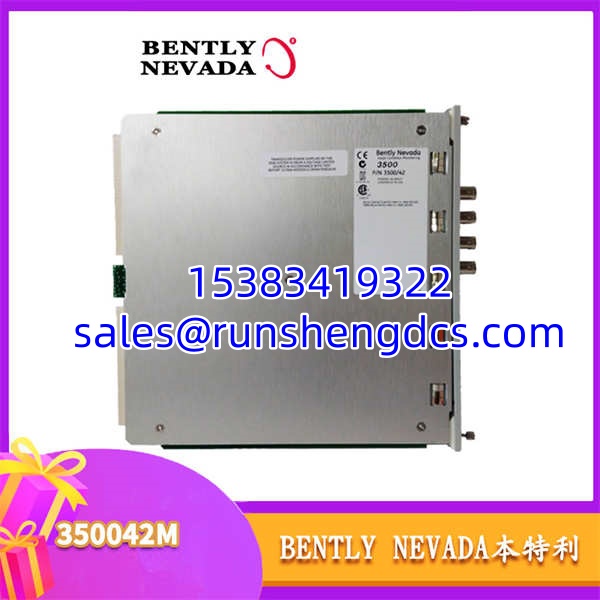

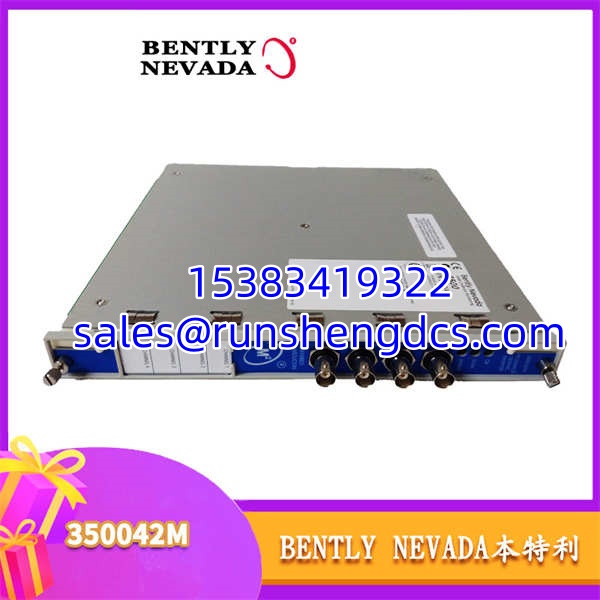

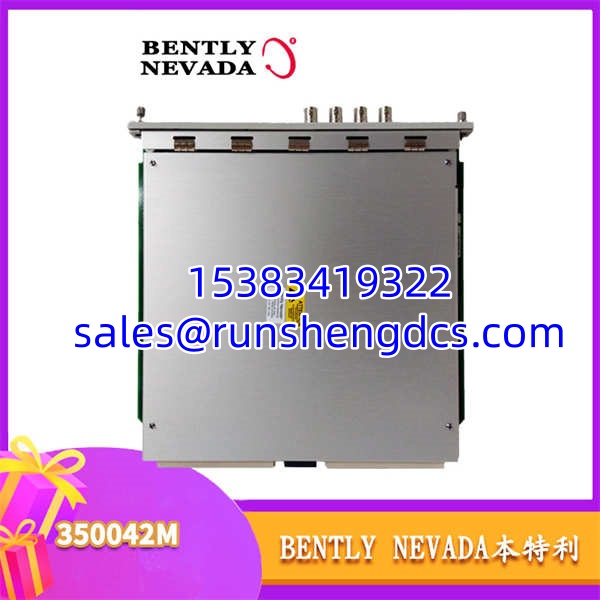

Bently Nevada 3500/42M

Compatibility & Migration Paths

To ensure this 3500/42M is 100% compatible with your existing 3500 system, you must check these key compatibility points. Failure to verify this is a common project risk that leads to commissioning delays.

Firmware/Hardware Revisions: Confirm your 3500/20 Interface Module and 3500/22 Transient Data Interface firmware support the 3500/42M. Older system revisions may require a firmware upgrade to properly recognize this monitor.
Sensor Compatibility: Verify your installed transducers are compatible with the 3500/42M inputs. It supports Bently Nevada 3300XL, 9200, and similar proximity/velocity/acceleration sensors. Ensure your extension cable lengths match the sensor’s calibration requirements.
Configuration Software: The 3500/42M requires the 3500 Rack Configuration Software for channel setup, setpoint programming, and filter selection. Ensure you have the appropriate software license and version.
Get Expert Help: Unsure about your 3500 system compatibility or sensor requirements? Contact our technical team today for a free compatibility check and application assessment.
