Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | Bently Nevada 3500/22M |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Product Type | Transient Data Interface (TDI) Module |
| System Series | 3500 Machinery Protection System |
| Communication | 10/100 Base-TX Ethernet (RJ45) |
| Slot Requirement | Must occupy Slot 1 (RIM Position) |
| Data Capability | Steady-State + Transient Waveform |
| Power Consumption | ~7.2W Typical |
| Redundancy Option | TMR Version Available (3500/22M-02-xx-xx) |
| Software Compat. | System 1, 3500 Configuration Software |
| Operating Temp | -30°C to +65°C (Verify with OEM) |
| Mounting | 3500 Series Rack, Front Panel Access |
Product Introduction
You’re trying to diagnose a bearing fault, but your monitoring system only shows you the overall vibration trend. You need the raw waveform to see the impact, and that’s where the rack usually goes silent.
The Bently Nevada 3500/22M is the Transient Data Interface (TDI) that solves this bottleneck. It sits in the 3500 rack (Slot 1 only) and acts as the high-speed gateway between your field monitors and the System 1 software. Unlike standard communication gateways that just poll alarm status, the 3500/22M continuously buffers dynamic waveform data and captures transient events like startups, shutdowns, or trips. It combines the functions of the older 3500/20 Rack Interface Module and TDXnet processor into a single card, simplifying the backplane traffic.
Why is this specific module critical? Because without it, your 3500 system is just a protection box, not a diagnostic tool. The 3500/22M enables the “black box” recording functionality essential for root cause analysis after a trip. It supports standard 10/100 Base-T Ethernet, making it easy to integrate into modern plant networks without needing legacy coax cabling. Bottom line — if you want to see why the machine tripped, not just that it tripped, you need this card in Slot 1.
QA/QC Transparency SOP
TDI modules are complex because they handle high-speed data buffering. Here is how we validate a 3500/22M:
- Intake & Origin Verification: We verify the 3500/22M part number and suffix (e.g., -01-01-00 for standard Ethernet). We check the front panel for physical damage to the RJ45 port and verify the LED indicators are intact.
- Live Functional Testing (Comms, Data, Load): The module is installed in a calibrated 3500 test rack. We establish an Ethernet link to a System 1 test server and verify the handshake. We force a transient capture event and confirm the waveform file transfers correctly without corruption.
- Electrical Parameter Tests (Megger, Continuity): Using a Fluke 87V, we verify 24VDC input stability and check for continuity on the backplane data lines. We ensure no shorts exist between the Ethernet isolation transformer and the chassis ground.
- Firmware/Config Verification (Readout & Backup): We read the module’s firmware revision via the 3500 Configuration Software. We verify the “Transient Enable” license or disk key is recognized, as this feature is often option-dependent.
- Final QC & Anti-Static Packaging: Visual inspection checks the RJ45 jack for bent pins. The 3500/22M is sealed in an anti-static bag with desiccant, labeled with the verified firmware revision and test date.
Field Engineer Gotchas
Slot 1 Violation: The 3500/22M is a Rack Interface Module. It must be in Slot 1, immediately next to the power supply. If you put it in Slot 2, the system will not boot, and the backplane will not initialize the monitors. We’ve seen techs swap it with a 3500/42M during a panic and spend 4 hours wondering why the rack is dead. Slot 1 is non-negotiable.
Transient Enable Missing: The 3500/22M hardware is standard, but the transient capture feature often requires an optional enable disk or software license. If you install the card and System 1 says “No Transient Data,” check your configuration. You might have the interface, but not the permission. Verify the option key in the 3500 Config Software before blaming the hardware.
Ethernet Cable Issues: This module uses standard 10/100 Base-T. Do not use crossover cables unless connecting directly to a laptop without a switch; modern ports auto-MDI-X, but old Bently documentation might still reference straight-through. If you see intermittent link loss, check the crimp. Vibration in the cabinet can loosen a marginal crimp over time.
TMR vs. Standard: Check the suffix. 3500/22M-01-xx-xx is standard. 3500/22M-02-xx-xx is TMR (Triple Modular Redundant). You cannot mix them in a redundant pair, and a TMR card is significantly more expensive. If your system is simplex, don’t buy the TMR version unless you plan to upgrade the whole rack logic.
System 1 Version Mismatch: Older 3500/22M firmware may not talk to newer System 1 releases (e.g., System 1 8.x+). Check the Bently Nevada compatibility matrix. A firmware upgrade on the card might be required before it will handshake with a modern server. Don’t assume “plug and play” across 10-year software generations.

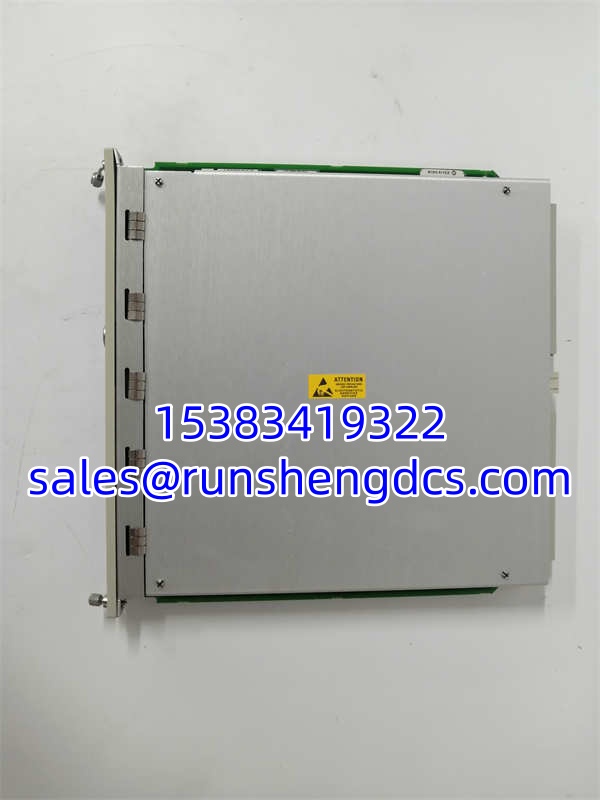

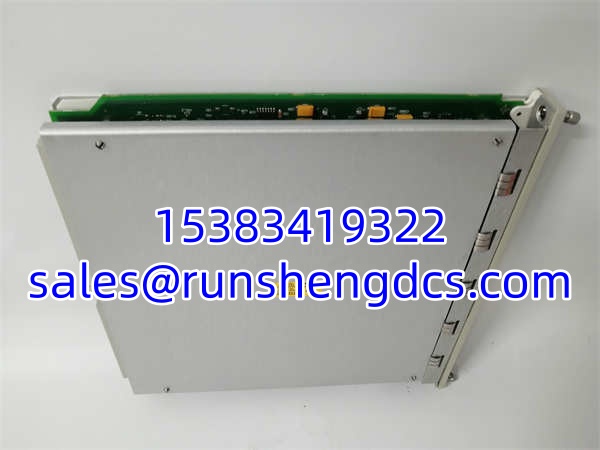

Bently 3500/22M
Application Scenarios
Compressor Startup Analysis: Reciprocating compressors experience massive torsional vibration during startup. The 3500/22M captures the transient waveform during the critical 30-second ramp-up, allowing engineers to verify if the train passes through critical speeds safely. Without this data, you’re guessing.
Turbine Trip Root Cause: When a steam turbine trips on high vibration, the trend data is useless. You need the orbit and time-base waveform at the exact moment of the trip. The 3500/22M buffers this data and sends it to System 1 for post-mortem analysis. This is the difference between replacing a bearing and replacing a rotor.
Gearbox Mesh Frequency Diagnosis: Gear faults often show up as sidebands in the spectrum, not just high overall vibration. The 3500/22M provides the high-resolution time-waveform needed to perform an FFT and identify gear mesh issues before they become catastrophic.
Case Study — Phantom Vibration Spike: A refinery in Louisiana reported random high-vibration trips on a critical pump. The trend data showed a clean signal until the trip. Maintenance replaced the probe and monitor. Trips continued. Root cause: A loose ground strap on the junction box was causing intermittent ESD spikes that the 3500/22M captured in the transient buffer. The waveform showed a classic “rail-to-rail” ESD signature, not mechanical vibration. Fixed the ground. Lesson: Trust the waveform, not the trend.
FAQ
- Can I use a 3500/20 and a TDXnet instead of a 3500/22M?
Technically, yes, but why? The 3500/22M integrates both functions into one slot. Using two separate cards wastes a slot and adds backplane complexity. Unless you have a legacy chassis that doesn’t support the 22M, upgrade to the integrated TDI. - Does the 3500/22M support fiber optics?
The standard 3500/22M-01-01-00 uses copper RJ45. If you need fiber, you must order the 3500/22M-01-02-00 variant with the 100 Base-FX I/O module. You cannot swap the SFP/copper module in the field; it’s a factory-configured option. Check your suffix before ordering. - Is the 3500/22M hot-swappable?
No. The 3500/22M is the rack interface. Removing it while the rack is powered will sever communication between the rack and the host, and may cause the rack to reset or enter a fault state. Always schedule a communication outage for replacement. - How do I verify a 3500/22M is genuine?
Check the front panel label for the exact suffix (e.g., -01-01-00). Verify the Bently Nevada logo and the QR code/Data Matrix. Genuine 3500/22M modules have a specific green PCB color and high-quality RJ45 jacks with integrated magnetics. Counterfeits often use cheap, unshielded jacks. Buy from a supplier who tests Ethernet throughput. - What is the difference between 3500/22M and 3500/92?
The 3500/22M is a TDI for System 1 and high-speed waveform data. The 3500/92 is a Communication Gateway for Modbus/OPC to DCS/PLC systems. They do different jobs. You often need both: the 3500/22M for the vibration engineers, the 3500/92 for the control room operators. - Can the 3500/22M capture data from all monitors in the rack?
Yes, provided the monitors are M-series (e.g., 3500/42M) and configured to send data to the TDI. Older non-M series monitors may not support the high-speed transient handshake. Verify your monitor compatibility in the 3500 System Manual. - Does the 3500/22M require a license for steady-state data?
No. Steady-state data (buffered trends) is standard. The optional license/disk is typically only for Transient/Waveform capture and extended history. If you just need trends, the base hardware works. If you need waveforms, check your paperwork.
