Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 3500/22M (288055-01) |
| Manufacturer | Bently Nevada |
| Function | Transient Data Interface (TDI) |
| Communication | 10/100Base-T Ethernet (TCP/IP) |
| Slot Location | Slot 1 (Adjacent to Power Supply) |
| Protection Role | None (Non-Critical Path) |
| Data Types | Steady-state, Transient Waveforms, Diagnostics |
| Power Consumption | ~10.5 W typical |
| Software Compat. | System 1, 3500 Rack Configuration |
| Mounting | 3500 Rack, Half/Full Height |
| Operating Temp | -40°C to +70°C |
| Key Feature | Integrated RIM + Comm Processor |
Product Introduction
Don’t let this module near your trip logic. The Bently Nevada 3500/22M is strictly a data highway, not a safety device. It sits in Slot 1 of the 3500 rack to pull transient waveforms and diagnostic data for System 1 software, but it has zero authority over relay outputs or protection voting. If this card dies, your machinery keeps running; you just lose your ability to analyze the vibration signatures remotely.
We specify the 288055-01 because it integrates the old 3500/20 RIM and external TDXnet processor into a single slot. This reduces backplane traffic and simplifies cabling, but it also means you can’t just swap in an older 3500/20 without losing Ethernet connectivity. The critical metric here is the non-critical path designation: verify your protection relays are on 3500/32 or /34 modules, because this TDI will not save you during a catastrophic bearing failure.
QA/QC Transparency SOP
We don’t trust “tested” stickers on communication gateways. Every 3500/22M 288055-01 goes through a five-step validation process before it ships:
- Intake & Origin Verification: We trace the 288055-01 batch code against Bently production records. Visual inspection checks for bent Ethernet RJ45 pins and corrosion on the backplane connector.
- Live Functional Testing: The unit is mounted on a live 3500 test rack. We verify it boots to Slot 1, acquires an IP address, and establishes a TCP connection to System 1 software within 60 seconds.
- Electrical Parameter Tests: Using a Fluke 115, we verify 24VDC input draw stays under 10.5W and check isolation on the Ethernet port. No ground loops allowed.
- Firmware/Config Verification: We read the firmware version and compare it against the requested revision. We verify the “Channel Enable” disk settings match the requested transient capture configuration.
- Final QC & Anti-Static Packaging: Unit is cleaned, RJ45 port is inspected for latch integrity, and it’s sealed in an ESD bag. Note: Ethernet cables are not included.
Field Engineer Gotchas
- The “Protection” Myth: The 3500/22M is not part of the safety instrumented system (SIS). If you wire your emergency shutdown logic through this module’s diagnostics, you are violating API 670. War Story: Saw a plant try to use TDI status bits as a proxy for “System Healthy.” The TDI hung due to a network storm, and the operators thought the machine was fine because the TDI wasn’t reporting a fault. Never use TDI for protection.
- Slot 1 Ultimatum: This module must go in Slot 1. If you put it in Slot 2, the rack will not boot, or it will default to a legacy 3500/20 mode with no Ethernet. Warning: I’ve seen techs force it into Slot 3 because “it fit.” It doesn’t work. Slot 1 is hardwired for the primary RIM/TDI function.
- System 1 Version Mismatch: The 288055-01 firmware must match your System 1 server version. A V6 TDI talking to a V4 server might connect but fail to stream waveforms. Solution: Always check the “Firmware Compatibility Matrix” in the Bently manual before ordering. Don’t assume backward compatibility.
- Transient Capture Limits: This module has finite memory. If you set the pre-trigger time to 10 seconds and the post-trigger to 5 seconds on 48 channels, you will fill the buffer instantly. Check: Calculate your buffer size:
(Pre + Post) × Channels × Sample Rate. If it exceeds the onboard RAM, the module will drop data silently.

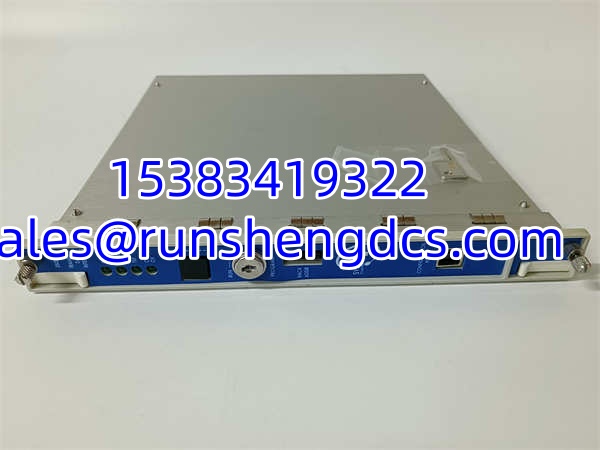

BENTLY 3500/22M 288055-01
Application Scenarios
- Turbine Trip Analysis: When a gas turbine trips on high vibration, the 3500/22M captures the 200ms pre-trip waveform needed to distinguish between a blade-out event and a sensor cable rub.
- Compressor Surge Detection: High-speed transient capture identifies the exact frequency signature of surge inception, allowing operators to adjust anti-surge valves before damage occurs.
- Remote Diagnostics: Eliminates the need for a technician to physically connect a laptop at the rack. The 288055-01 streams data to the control room, keeping personnel out of hazardous areas.
FAQ
Can I use this module for machinery protection?
No. The 3500/22M is explicitly designated as “Non-Critical Path” in the API 670 standard. It handles data, not trips. Protection must be handled by 3500/40, /42, /50, or /54 modules. Using this for protection is a safety violation.
Is 288055-01 compatible with 3500/20?
Physically, yes. Functionally, no. The 3500/20 is a Rack Interface Module (RIM) only; it needs an external TDXnet for Ethernet. The 3500/22M combines both. You can replace a /20 with a /22M, but you cannot replace a /22M with a /20 without adding external hardware.
Why won’t my System 1 software see the rack?
Check the IP subnet. The 3500/22M defaults to 192.168.0.100. If your PC is on 10.x.x.x, you won’t connect. Also, verify the “Rack Address” DIP switches on the front. If the switch says “0” but the software expects “1”, it will ignore the rack.
Does this support fiber optic Ethernet?
No. The 288055-01 is copper 10/100Base-T only. If you need fiber, you need the 3500/22M 146031-02 variant or an external media converter. Don’t try to splice fiber into the RJ45 port.
Can I hot-swap this module?
Technically, the 3500 system supports hot-swap for the TDI. However, I wouldn’t do it during a transient event. Pulling the TDI stops all waveform streaming. If a bearing is currently failing, you just blinded yourself. Wait for a stable window or shut down if possible.
What is the maximum sample rate?
Up to 25.6 kHz per channel for transient capture, but this depends on the number of active channels and the “Channel Enable” configuration. Check the “Data Collection” section in the manual for your specific channel count. Don’t assume all 48 channels can run at 25.6 kHz simultaneously.
Do I need a license for System 1?
Yes. The 3500/22M just sends the data. You need a valid System 1 license to receive and store it. I’ve seen guys buy the TDI, install it perfectly, and then realize they can’t view the waveforms because their license expired. Check your license status first.
