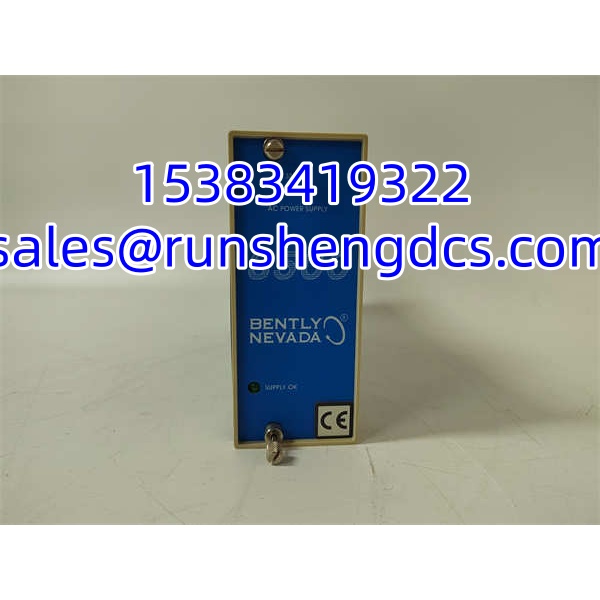

Bently Nevada 3500-15 127610-01 | AC/DC Power Supply Module for 3500 Rack

Description

Key Technical Specifications

Product Introduction

A 3500 rack that loses power doesn’t just go dark — it blinds your turbine, compressor, or generator protection scheme. The 3500/15 (127610-01) is the module that keeps every vibration, displacement, and speed monitor alive inside the Bently Nevada 3500 frame. It sits in the left-side dedicated half-height slots and converts plant AC or DC supply into the regulated DC rails the backplane distributes to all installed monitor and relay modules.

What makes it worth stocking is the redundancy story. Install two 3500/15 units and either one can carry the entire rack load. That means you can pull a failed unit during a running condition without tripping the machine — provided the redundant pair is correctly configured and the standby unit is healthy. The 127610-01 front panel mates with a backplane power input module (such as 125840-01); the two together form the complete power supply assembly. Verify the input voltage option on the label before you install it. Putting a 175–264 VAC unit on a 24 VDC bus is an expensive way to learn the difference.

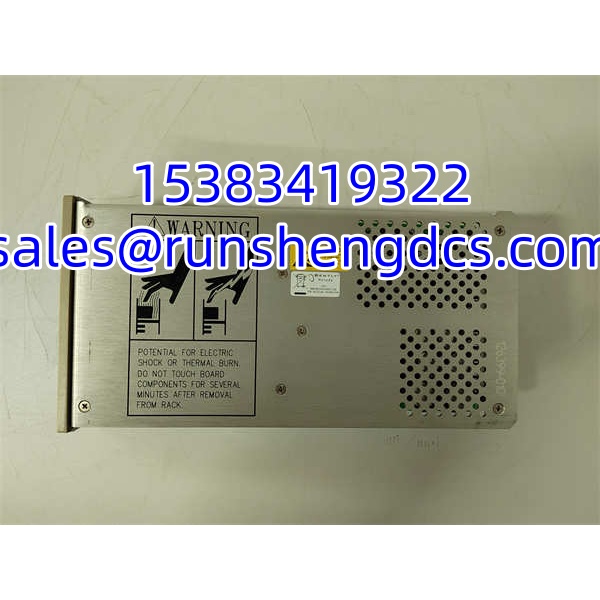

BENTLY 3500-15 127610-01

QA/QC Transparency SOP

1. Intake & Origin Verification — Confirm P/N 127610-01 on the front panel and cross-check the backplane module number (e.g., 125840-01). Photograph the side label showing input voltage range, serial number, and revision. Reject units with mismatched front/back assemblies.
2. Live Functional Testing — Install the paired assembly into a verified 3500/05 test rack. Apply rated input voltage and confirm the OK LED illuminates steadily. Verify that adjacent monitor modules power up and communicate across the backplane.
3. Electrical Parameter Tests — Measure input current draw against the rated value for the specific voltage option (e.g., ~2.3 A max for 175–254 VAC, ~10 A for 20–30 VDC). Check output rail voltages on the backplane with a Fluke multimeter. Perform insulation resistance check (>10 MΩ at 500 VDC where applicable).
4. Firmware/Config Verification — The 3500/15 carries no user logic, but verify that the module reports healthy status through the 3500/22M TDI or 3500/20 RIM. Record the hardware revision for traceability.
5. Final QC & Anti-Static Packaging — Label the unit with test date, input voltage option, and tester ID. Bag in ESD-safe packaging with desiccant. Include a one-page test summary for the buyer.

Field Engineer Gotchas

• Voltage Option Mismatch — The 3500/15 comes in LV AC, HV AC, LV DC, HV DC, and universal AC variants. The front panel P/N 127610-01 is the same across options; the difference lives on the side label and the backplane module. Solution: Read the label before wiring. A universal AC (85–264 VAC) unit won’t accept 24 VDC.
• Single-Supply Hot-Swap Trap — Hot-swapping only works when a redundant pair is installed and healthy. Pulling the only power supply in a single-supply rack kills the entire frame. Solution: Confirm redundancy status in the rack before touching anything.
• Backplane/Front Panel Mismatch — 127610-01 is the front assembly. It must mate with the correct backplane power input module. Mixing legacy and universal AC backplane modules can cause incompatibility. Solution: Verify both P/Ns match the OEM pairing table.
• Loose Input Terminals — Vibration on turbine skids works terminal screws loose over time. A marginal AC connection causes intermittent rack resets that look like a module fault. Solution: Torque input terminals to spec (typically 0.6–0.9 N·m) during every turnaround.
• Ground Loops on AC Input — Running the 3500 rack AC supply from an unclean plant ground can inject noise into sensitive vibration channels. Solution: Use a single-point ground for the 3500 system and keep AC input wiring separated from sensor cables.

BENTLY 3500-15 127610-01

Application Scenarios

• Steam turbine protection rack — The 3500/15 powers 3500/42M vibration monitors, 3500/45 differential expansion modules, and 3500/32 relay modules. A single supply failure on a non-redundant rack takes out every trip channel simultaneously.
• Offshore compressor platform — Dual 3500/15 units in universal AC configuration handle unstable platform power. One supply degrades from salt-air corrosion at the terminals; the standby carries the load until the next helicopter run.
• Refinery critical air blower — A 24 VDC-powered 3500 rack in a remote station loses its only supply during a UPS maintenance window. The unit goes dark, and the DCS loses all vibration data until a spare is flown in.
• Combined-cycle power plant — During a combustion turbine overhaul, technicians replace a 3500/15 with a unit labeled 127610-01 but don’t check the input voltage. The new unit is HV AC; the plant supply is 125 VAC. It powers up but runs out of spec, triggering intermittent rack faults.

FAQ

Q: Is 127610-01 a complete power supply by itself?
A: No. It is the front-panel assembly of the 3500/15 power supply. It must be paired with the corresponding backplane power input module (e.g., 125840-01) to function.

Q: Can I hot-swap a 3500/15 while the rack is running?
A: Only if a redundant pair is installed and the standby supply is healthy. With a single supply, removing it kills the entire rack.

Q: What input voltage does my 127610-01 accept?
A: It depends on the configuration. Options include 85–132 VAC, 175–264 VAC, 88–140 VDC, 20–30 VDC, or 85–264 VAC universal AC. Read the side label — the front panel P/N alone does not tell you the voltage.

Q: Will a universal AC 3500/15 work as a drop-in replacement for my legacy HV AC unit?
A: Often yes, but verify the backplane module compatibility. Universal AC power supplies use a different backplane input module than legacy variants and may not be directly interchangeable without checking the OEM documentation.

Q: Can I mix AC and DC power supplies in the same rack?
A: Yes. The 3500 rack supports mixed AC and DC supplies in the two power slots. Either supply can carry the full rack load.

Q: What happens when the primary supply fails in a redundant configuration?
A: The standby supply takes over the full rack load without interruption. The system reports a power supply fault via the OK LED and through the 3500/22M TDI or 3500/20 RIM so maintenance can schedule a replacement.

Q: Is this module SIL-certified on its own?
A: The 3500/15 is part of the broader 3500 system, which achieves SIL 2 certification for specific monitoring and protection functions. The power supply itself is a supporting component — its role is maintaining rack availability, not executing safety logic. Verify the specific SIL claim against the current Baker Hughes certification documentation.
