Bently Nevada 136711-01 | 3500/60 Temperature Monitor I/O Module

Description

Key Technical Specifications

Product Introduction

Temperature is the silent killer in rotating equipment. A bearing that runs 15°C above its baseline can go from healthy to catastrophic in hours. The Bently Nevada 136711-01 is the rear I/O module for the 3500/60 Temperature Monitor, handling the analog-to-digital conversion of RTD and thermocouple signals inside the 3500 rack.

Its value is signal fidelity. The module accepts multiple sensor types — PT100/PT1000 RTDs in 2- or 3-wire configurations, plus standard thermocouple types K through N — and applies built-in cold junction compensation so the 3500/60 front monitor receives clean, compensated temperature data. Each channel can be independently configured with Alert and Danger setpoints that drive relay trips through the 3500/32 or 3500/33 relay modules. This is not a standalone monitor. It is the rear I/O half of the 3500/60 assembly.

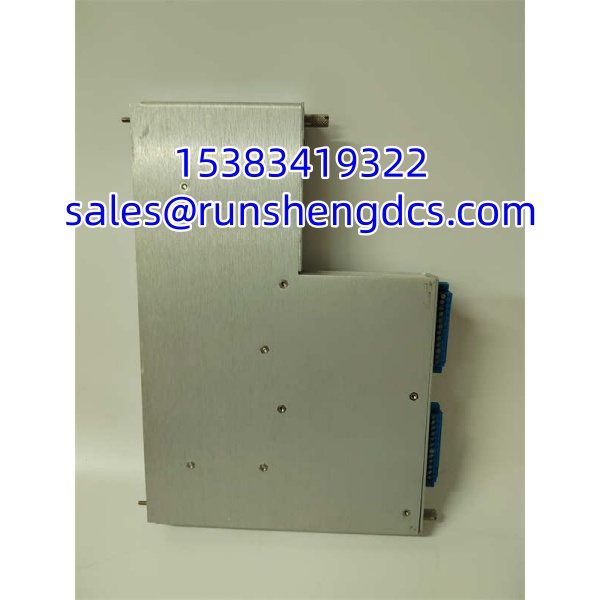

BENTLY 136711-01

QA/QC Transparency SOP

1. Intake & Origin Verification — Confirm part number 136711-01 on the module label. Verify it is the 3500/60 rear I/O module, not a 3500/42M I/O or a 3500/62 process variable module. Check for bent pins, damaged connectors, and missing terminal hardware.
2. Live Functional Testing — Install into a known-good 3500 rack with a configured 3500/60 front monitor. Apply a calibrated RTD simulator and a thermocouple reference source to separate channels. Verify the monitor reads correct temperature values within spec.
3. Electrical Parameter Tests — Measure channel-to-channel isolation, terminal block continuity, and CJC circuit function. Verify no shorted or open input channels. Check ground integrity between the I/O module and the rack backplane.
4. Firmware/Config Verification — The rear I/O module itself carries no firmware. Confirm the paired 3500/60 monitor has readable configuration and that channel assignments (RTD vs. TC type, 2-wire vs. 3-wire) match the installed sensors.
5. Final QC & Anti-Static Packaging — Inspect rear connector pins, verify terminal block labeling, and test mechanical seating in the rack. Package in anti-static material with rigid corner protection. Include a test report showing channel-by-channel temperature accuracy verification.

Field Engineer Gotchas

• Buying the I/O without the monitor. 136711-01 is the rear I/O module only. It cannot function without the 3500/60 front monitor assembly. If you ordered this expecting a complete temperature monitor, you will be short one module.
• Wrong sensor type configured. The 3500/60 software must match the actual sensor wiring — PT100 vs. PT1000, 2-wire vs. 3-wire, or the correct thermocouple type. A mismatch produces readings that are wrong but look plausible. A 3-wire RTD configured as 2-wire will read several degrees low, enough to mask a developing bearing fault.
• Cold junction compensation errors. If the CJC circuit is damaged or the I/O module is installed in a rack with poor thermal isolation, temperature readings can drift. Always verify CJC function during commissioning with a known reference.
• Surplus listing confusion. Some resellers list 136711-01 as a display module, a 3500/42M I/O, or even a GE RX3i analog input. Those listings are wrong. This is specifically the 3500/60 temperature I/O module.
• Wiring polarity on thermocouples. Thermocouple extension wire polarity matters. Reversed polarity on a Type K thermocouple produces a reading that decreases when temperature increases — a classic commissioning headache that wastes hours.

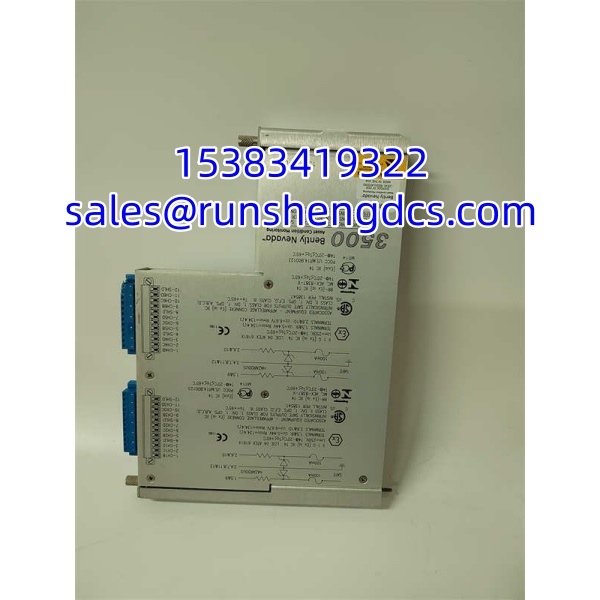

BENTLY 136711-01

Application Scenarios

• Steam turbine bearing temperature monitoring. Babbitt temperature RTDs embedded in journal bearings feed the 3500/60 through the 136711-01 I/O module. Alert and Danger setpoints drive relay trips to prevent bearing wipe.
• Generator stator winding hotspot detection. RTDs embedded in stator windings provide direct temperature measurement. The 3500/60 monitors each zone independently, with per-channel setpoints that account for uneven cooling.
• Compressor lube oil temperature monitoring. Thermocouples or RTDs in the lube oil supply and return lines provide process temperature data alongside vibration protection in a single 3500 rack.
• Gearbox bearing temperature protection. High-speed gearbox bearings generate significant heat. The 3500/60 provides early warning before vibration signatures appear, giving maintenance teams lead time to investigate.

FAQ

Is 136711-01 a complete temperature monitor?
No. It is the rear I/O module for the 3500/60 Temperature Monitor. You need the 3500/60 front monitor assembly for a working channel.

Can I use 136711-01 with a 3500/62 Process Variable Monitor?
No. The 136711-01 is paired with the 3500/60. The 3500/62 uses its own I/O architecture. Do not mix them.

What sensor types does it support?
RTD types PT100 and PT1000 in 2-wire or 3-wire configuration, plus thermocouple types K, J, T, E, R, S, B, and N. Cold junction compensation is built in.

Does it support hot-swapping?
The 3500 rack supports hot-swapping of many modules, but replacing a temperature I/O module while the system is live should be done with caution. If the channels are driving active alarm or trip logic, removing the I/O may cause a fault condition. Consult the OEM procedure before swapping under power.

Is this part still available from Bently Nevada?
The 3500 platform remains active, but specific I/O module availability varies. For new procurement, confirm lead times with Baker Hughes or an authorized distributor. Surplus stock is common but requires careful verification.

How many temperature channels does the 3500/60 provide?
The 3500/60 is a multi-channel temperature monitor. The exact channel count depends on the specific 3500/60 configuration. Verify the channel count against your existing rack configuration before ordering replacement I/O.

Can I mix RTD and thermocouple inputs on the same module?
Yes, the 3500/60 supports mixed sensor types across channels. Each channel is independently configured for RTD or thermocouple, and for the specific sensor subtype. Verify the configuration matches the field wiring.
