Description
Key Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number | 125840-01 |
| Module Type | 3500/15 Power Input Module (PIM) |
| System Compatibility | Bently Nevada 3500/05 instrumentation rack with 3500/15 power supply |
| Primary Function | Accepts high-voltage AC input and feeds the 3500/15 power supply |
| Input Voltage | 175–264 Vac rms (high-voltage AC configuration) |
| Protection | Fuse-protected; requires power disconnection before fuse replacement |
| Installation | Installed in the 3500/15 power supply slot area of the 3500/05 rack |
| Standards | Part of API 670-compliant 3500 Machinery Protection System |
| Data Limitation | 125840-01 is a base part number; the exact revision, fuse rating, and compatibility with the installed 3500/15 power supply must be verified from the label. |
Product Introduction
Bently Nevada 125840-01 is the high-voltage AC Power Input Module (PIM) used with the 3500/15 power supply in the Bently Nevada 3500 Machinery Protection System. It is not a vibration monitor, relay module, communication gateway, display interface, or standalone power supply. Its role is to accept 175–264 Vac input power and pass it to the 3500/15 power supply, which then generates the regulated DC rails required by all installed 3500 monitor, relay, communication, and interface modules.
The 3500/15 power supply assembly typically includes a power input module and the power supply itself. The 125840-01 PIM handles the AC input side — including fuse protection and input conditioning — while the 3500/15 power supply converts that input into the internal DC power distributed across the 3500/05 backplane.
Because 125840-01 is a base part number, the exact revision, fuse rating, and compatibility with the installed 3500/15 power supply should always be confirmed from the physical label. Surplus listings sometimes misidentify this part as a display unit, vibration monitor, or communication module — those descriptions are not accurate for the 3500/15 power input module.
QA/QC Transparency SOP
- Intake & Label Verification — Photograph the full rating label, part number, revision, serial number, and fuse markings. Confirm the unit is a 3500/15 PIM, not a monitor or communication card.
- Visual Inspection — Check the AC input terminals, fuse holders, connector pins, PCB, and mounting hardware for corrosion, burn marks, or mechanical damage.
- Electrical Testing — Verify AC input acceptance at 175–264 Vac, check fuse integrity, measure output to the 3500/15 power supply, and confirm no short-to-ground conditions.
- System Compatibility Check — Confirm compatibility with the installed 3500/15 power supply, 3500/05 rack type, slot assignment, and total module load.
- Final QC & Packaging — Tag with measured results, input voltage range, revision, and source condition. Pack with ESD protection and terminal covers.
Field Engineer Gotchas
- Do not confuse with the 3500/15 power supply itself. The 125840-01 is the power input module (PIM) that feeds the 3500/15 power supply. It is not a standalone power supply.
- Input voltage must match the plant supply. The 125840-01 is configured for 175–264 Vac. Using it with a different input voltage or in a rack configured for low-voltage AC/DC will not work safely.
- Some surplus listings misidentify this part. Listings describing 125840-01 as a display unit, vibration monitor, or communication module are incorrect.
- Fuse replacement requires power disconnection. The module carries high-voltage AC input; never replace fuses or service connectors while energized.
- Revision-level differences may exist. Different revisions may use different fuse types, terminal layouts, or internal protection logic. Match the revision to the installed unit.

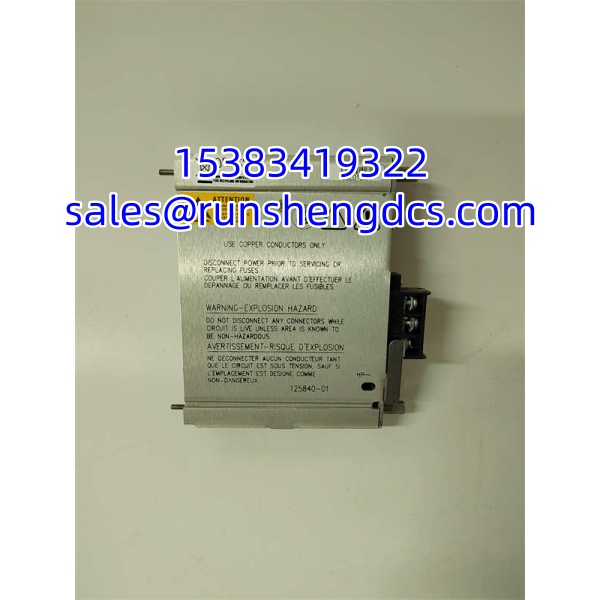

BENTLY 125840-01
Application Scenarios
- 3500 rack power restoration. Replace a failed 125840-01 PIM after confirming input voltage and rack load.
- Input voltage verification. Confirm whether the installed 3500/15 power supply uses the 125840-01 high-voltage AC PIM or a different input configuration.
- Spare pool qualification. Verify whether existing 125840-01 stock matches the installed 3500/15 power supply revision and input voltage.
- Power distribution troubleshooting. Diagnose whether a rack power failure is caused by a blown PIM fuse, failed 3500/15 power supply, or backplane issue.
FAQ
1. What does 125840-01 do?
It is the high-voltage AC Power Input Module (PIM) for the Bently Nevada 3500/15 power supply. It accepts 175–264 Vac input and feeds the 3500/15 power supply.
2. Is 125840-01 a vibration monitor or communication module?
No. It is a power input module. Listings describing it as a display unit, vibration monitor, or communication card are incorrect.
3. Can I use any 3500/15 PIM as a replacement?
Not safely. The input voltage configuration, revision, and fuse rating must match the installed 3500/15 power supply and plant supply.
4. Does 125840-01 work without the 3500/15 power supply?
No. The PIM feeds the 3500/15 power supply, which then generates the regulated DC power for the 3500/05 rack backplane.
5. How do I confirm the exact specification?
Check the physical label for the part number, revision, fuse rating, and serial number. Match it against the installed 3500/15 power supply and rack BOM.
6. Is this part still supported?
The Bently Nevada 3500 system remains a widely installed machinery protection platform. Current lifecycle and support status should be confirmed with Baker Hughes / Bently Nevada or an authorized distributor.
