Bently Nevada 125720-01 | 3500/32 4-Channel Relay I/O Module

Description

Key Technical Specifications

Product Introduction

A 3500 monitor that detects a trip condition is useless if the relay output never fires. The Bently Nevada 125720-01 is the 4-channel relay I/O module for the 3500/32 monitor assembly. It sits behind the 3500/32 front module in the 3500 rack and provides the actual relay contacts that drive alarms, trips, and interlocks into the ESD, DCS, or turbine control system.

Its value is straightforward: four discrete relay outputs tied to monitor channels, configurable for alarm and danger setpoints. In a typical API 670 turbine protection scheme, these relays feed hardwired trip circuits where a monitor’s internal logic alone is not sufficient. The 125720-01 does not process sensor signals — the 3500/32 monitor does that. This module is the output stage. Verify the exact relay contact rating and de-energized/energized-to-trip configuration with the OEM datasheet before commissioning.

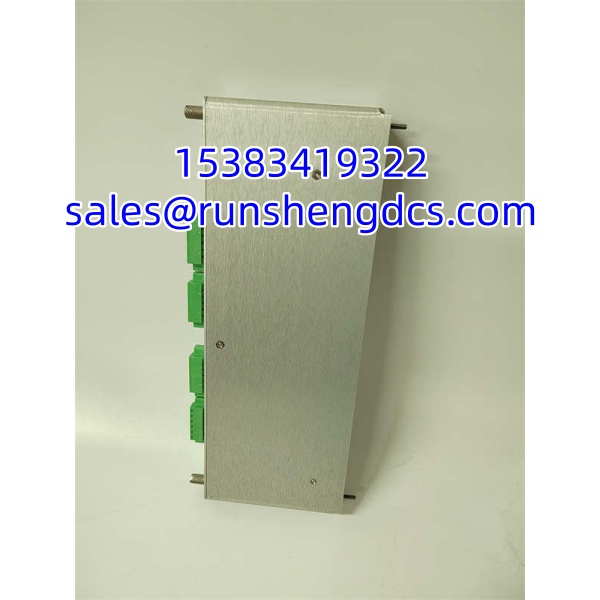

BENTLY 125720-01

QA/QC Transparency SOP

1. Intake & Origin Verification — Confirm part number 125720-01 on the module label. Verify it is the relay I/O module, not the 3500/32 monitor front assembly and not a 3500/40M. Check for bent pins, damaged connectors, and missing terminal hardware.
2. Live Functional Testing — Install into a known-good 3500 rack with a configured 3500/32 monitor. Force alarm and trip setpoints from the monitor and verify each relay channel actuates. Confirm NO/NC contact behavior matches the configured trip logic.
3. Electrical Parameter Tests — Measure relay contact continuity in both energized and de-energized states. Check coil resistance and contact isolation. Verify no shorted or open relay channels under load.
4. Firmware/Config Verification — The relay I/O module itself carries no firmware. Confirm the paired 3500/32 monitor has readable configuration and that relay assignments map correctly to monitor channels.
5. Final QC & Anti-Static Packaging — Inspect rear connector pins, verify relay labels, and test mechanical seating in the rack. Package in anti-static material with rigid corner protection. Include a test report showing channel-by-channel relay verification.

Field Engineer Gotchas

• Buying the relay module without the monitor. 125720-01 is the relay I/O module only. It cannot function without the 3500/32 monitor front assembly. If you ordered this expecting a complete monitor, you will be short one module.
• Wrong relay trip logic. Relays can be configured energized-to-trip or de-energized-to-trip. If the replacement module is wired for the opposite logic, the turbine may trip on power-up or fail to trip on a real fault. Verify the existing wiring and configuration before swapping.
• Channel mapping mismatch. The 3500/32 monitor channels must be correctly mapped to relay outputs. After a replacement, a channel that used to trip relay 1 may now trip relay 3 if the configuration was not backed up. Always export the rack configuration before pulling modules.
• Contact rating exceeded. These relays are not universal switching devices. If the relay contacts are driving a high inductive load — such as a large trip solenoid — verify the contact rating against the actual load. Undersized contacts weld or fail prematurely.
• Surplus listing errors. Some resellers list 125720-01 as a monitor, a vibration card, or even a computer module. Those listings are wrong. This is a 3500/32 relay I/O module.

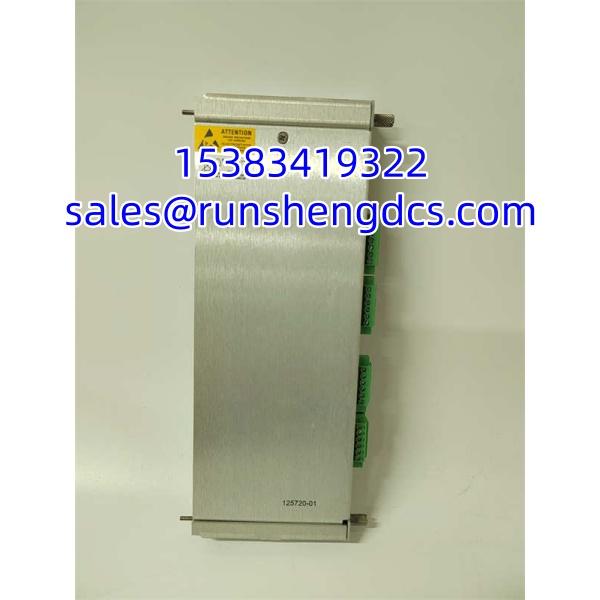

BENTLY 125720-01

Application Scenarios

• Steam turbine trip circuits. The 3500/32 monitor detects axial displacement or differential expansion beyond limits; the 125720-01 relay outputs drive the hardwired trip solenoid. Redundant relay modules are typical here.
• Compressor protection panels. Radial vibration and thrust position alarms from the 3500/32 are converted into discrete relay contacts for the ESD system. The relay module provides the physical isolation between the 3500 rack and plant trip logic.
• Retrofit and spare-parts replacement. When a relay channel fails — welded contact, open coil, or intermittent actuation — the 125720-01 is replaced without disturbing the monitor configuration. This is a common field swap during planned outages.

FAQ

Is 125720-01 a monitor or a relay module?
It is the relay I/O module for the 3500/32. The monitor is the 3500/32 front assembly. You need both for a working channel.

Can I use 125720-01 with a 3500/40M monitor?
No. The 125720-01 is paired with the 3500/32. The 3500/40M uses its own relay architecture. Do not mix them.

How many relay contacts does it provide?
Four relay channels per module. Each channel provides discrete alarm/trip outputs as configured in the 3500 software.

Does it support redundant relays?
Yes. The 3500 system supports redundant relay modules for critical trip functions. Verify the exact redundancy scheme in your rack configuration.

Is this part still available from Bently Nevada?
The 3500 platform remains active, but specific relay module availability varies. For new procurement, confirm lead times with Baker Hughes or an authorized distributor. Surplus stock is common but requires careful verification.

What approval options are available?
CSA-NRTL/C is a common approval option for the 3500/32 relay module. Verify the exact suffix on the nameplate against your site requirements.

Can I hot-swap this module?
The 3500 rack supports hot-swapping of many modules, but relay replacement should be done with caution. If the relay is driving an active trip circuit, removing it may cause an unintended trip depending on the wiring and configuration. Consult the OEM procedure before swapping under power.
