Description
Key Technical Specifications
- Module Type: 3500/40M Proximitor I/O Module
- Channel Capacity: 4 Independent Channels
- Input Signal: Raw Proximitor (Eddy Current Sensor)
- Sensitivity (Vibration): 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm
- Sensitivity (Clearance): 0.394 mV/μm (10 mV/mil) or 0.787 mV/μm
- Measurement Accuracy: ±0.33% Full Scale (Max ±1%)
- Operating Voltage: 24V DC (via Power Supply Module)
- Operating Temp: -30°C to +65°C
- Humidity Tolerance: -40°C to +85°C (Non-condensing)
- Supported Parameters: Radial Vibration, Axial Displacement, Eccentricity, Differential Expansion
- Configuration: Requires 3500/05 Frame Configuration Software
- Certifications: CE, Optional CN Explosion-Proof
Product Introduction
A turbine trips offline at 2 AM because the control room lost visibility into shaft clearance. The 125680-01 is the exact I/O module sitting in the 3500 rack, taking raw signals from eddy current probes and converting them into actionable machinery health data. It doesn’t just measure; it continuously compares real-time values against configured alarm setpoints to drive the protection system.
This specific 3500/40M module handles four independent channels, typically paired to monitor radial vibration or axial displacement. With a tight ±0.33% accuracy and support for multiple mechanical parameters, it ensures you catch bearing wear or rotor bow long before catastrophic failure. Honestly, if your 3500 rack is throwing bypass faults or erratic clearance readings, this I/O module is usually the first suspect—especially if the environment is pushing the upper limits of its 65°C operating range.
Troubleshooting Quick Reference
- Channel Bypass LED Active | Sensor/Probe Fault | High (75%) | Check front-panel buffer output with oscilloscope | Verify probe DC resistance (~10Ω); check extension cable for shorts
- Erratic Vibration Readings | Ground Loop / Noise | High (60%) | Measure shield grounding at Proximitor | Ensure single-point ground; separate signal cables from VFD lines
- No Signal / Dead Channel | Backplane Power Loss | Medium (50%) | Verify 24V DC at backplane connector | Reseat module; check 3500 power supply module status
- False Danger Alarms | Configuration Drift | Medium (40%) | Connect via 3500/05 software | Verify alarm setpoints and delay timers haven’t been corrupted
- Module Not Communicating | TX/RX LED Off | Low (20%) | Check adjacent modules for bus faults | Clean backplane edge fingers; inspect for corrosion

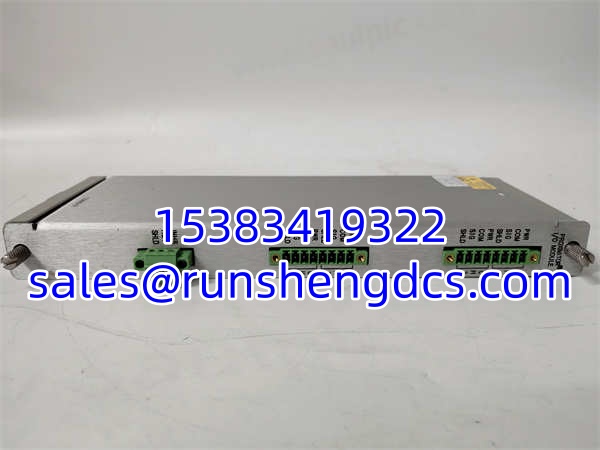

BENTLY 125680-01
Application Scenarios & Pain Points
- Steam Turbine Rotor Monitoring: High-temperature environments near the turbine deck. Standard I/O cards drift with heat. The 125680-01 maintains ±0.33% accuracy up to 65°C, preventing false trips during thermal expansion.
- Centrifugal Compressor Axial Displacement: Thrust bearing wear requires precise clearance tracking. The 0.394 mV/μm sensitivity ensures sub-micron resolution, catching thrust collar degradation before metal-to-metal contact.
- Unmanned Offshore Platforms: Vibration and salt spray degrade connectors. The modular 3500 design and internal terminal connections minimize field wiring points, reducing failure vectors in harsh marine environments.
Compatible Replacement Models
- ✅ Drop-in Replacement: 125680-01 (Exact match. 3500/40M Proximitor I/O. No config change if using same sensor type.)
- ⚠️ Software Compatible: 125680-02 (Later revision. Verify firmware compatibility with existing 3500/05 config. May require software update.)
- ❌ Hardware Incompatible: 125680-00 (Legacy 3500/40 variant. Different internal architecture. NOT interchangeable without full rack reconfiguration.)
