Description
Key Technical Specifications
- System Platform: Bently Nevada 3500 Machinery Protection
- Module Type: Position Monitor (4 Channels)
- Supported Measurements: Axial Displacement, Differential Expansion, Shell/Casing Expansion, Valve Position
- Channel Flexibility: Channels 1/2 and 3/4 can be configured independently
- Sensor Input: Proximity Probe (Eddy Current)
- Alarm Logic: Programmable Alert & Danger Setpoints
- Outputs: 4-20 mA Recorder Outputs, Relay Outputs (via 3500/32 or /33)
- Configuration: 3500 Rack Configuration Software
- Base Part Number: 140072-04D (Common Revision)
- Diagnostics: Front Panel LED Status Indicators
- Condition: New Surplus / Refurbished
Product Introduction
Turbines and compressors don’t just spin; they grow. As a 600MW steam turbine heats up, the rotor and casing expand at different rates. If you lose track of that differential expansion, you risk catastrophic blade rubbing. The 3500/45 is the dedicated position monitor in your 3500 rack designed specifically to track these critical mechanical clearances. It takes raw eddy current signals and translates them into precise axial position, differential expansion, or shell expansion data.
Why is this module so versatile? Because channels 1/2 and 3/4 can be configured as completely different functions. You could be monitoring thrust position on channel 1, differential expansion on channel 2, and casing expansion on channel 3. Honestly, this flexibility is great for engineering, but it’s a nightmare for procurement. A 3500/45 pulled from a compressor application won’t work on a turbine without a full software reconfiguration. Always verify the base P/N (140072-04D) and the channel configuration before ordering.
Troubleshooting Quick Reference
| Fault | Cause | Relevancy | Quick Check | Fix |
|---|---|---|---|---|
| Ch Fault LED | Open Sensor Circuit | 90% | Measure probe gap voltage (-9 to -11V) | Check probe, extension cable, or BNC connector. |
| Erratic Position | Ground Loop / Noise | 75% | Check sensor cable shielding | Verify single-point shield ground at monitor. |
| No 4-20mA Output | Config Mismatch | 60% | Open 3500 Config Software | Verify output scaling and channel enable. |
| Intermittent Fault | Backplane Pin Damage | 40% | Inspect gold fingers with flashlight | Clean contacts; check for bent pins. |
| Alarm Latched | Unacknowledged Trip | 85% | Check System 1 / 3500 Rack SW | Acknowledge alarm; verify setpoints. |

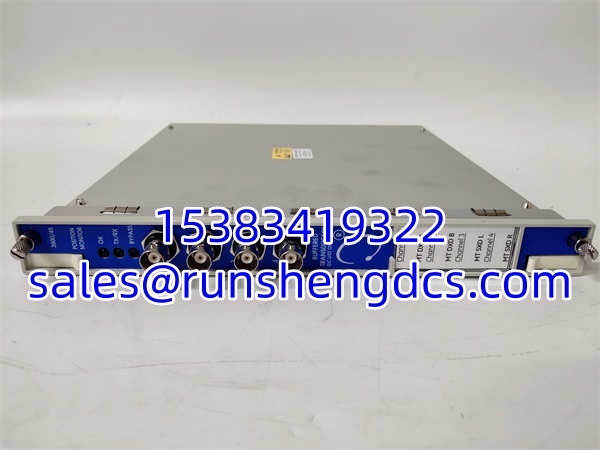

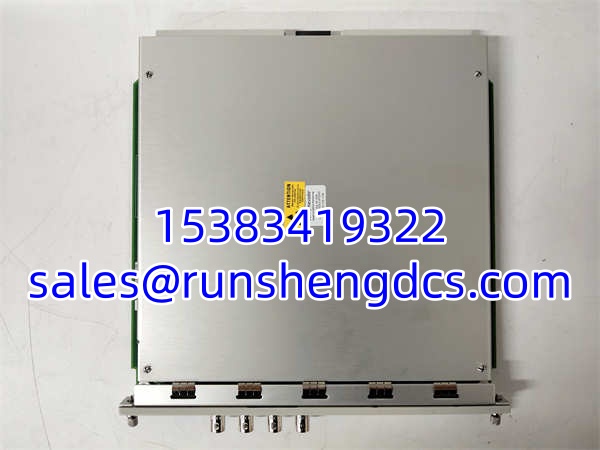

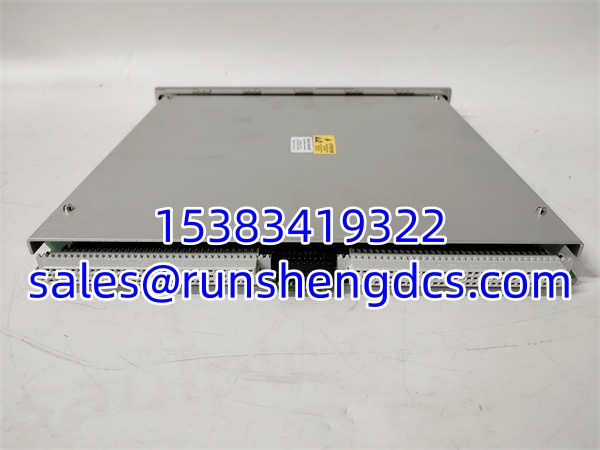

BENTLY 3500/45
Application Scenarios & Pain Points
- Steam Turbine Startups: During warmup, differential expansion must be monitored to sub-mil accuracy. A bad internal op-amp drifts the reading, causing unnecessary trips. Always cross-check with System 1 historical trends before trusting a sudden shift.
- Compressor Thrust Monitoring: Axial shift indicates bearing wear or process imbalance. This module processes the raw proximity signal locally. If the filter config is wrong, you’ll trip on process transients, not actual thrust movement.
- Valve Position Feedback: Monitoring steam valve position for control loop validation. The 3500/45 can be configured for valve position, providing a redundant safety check against the DCS command signal.
Compatible Replacement Models
- ✅ Drop-in Replacement: 3500/45 (140072-04D). Exact match. Same 4-ch config, same base P/N. Cost: ~3,000–7,000 surplus depending on vendor.
- ⚠️ Software Compatible: 3500/45 (Other Revisions). Same module family, different factory revision. Requires downloading your existing config file via 3500 Config Software. Labor: 1-2 hours for config check and download.
- ❌ Hardware Incompatible: 3500/40M. Displacement/Position monitor, but lacks differential expansion and shell expansion algorithms. Different internal processing. Do not substitute unless you are only monitoring simple axial displacement.
