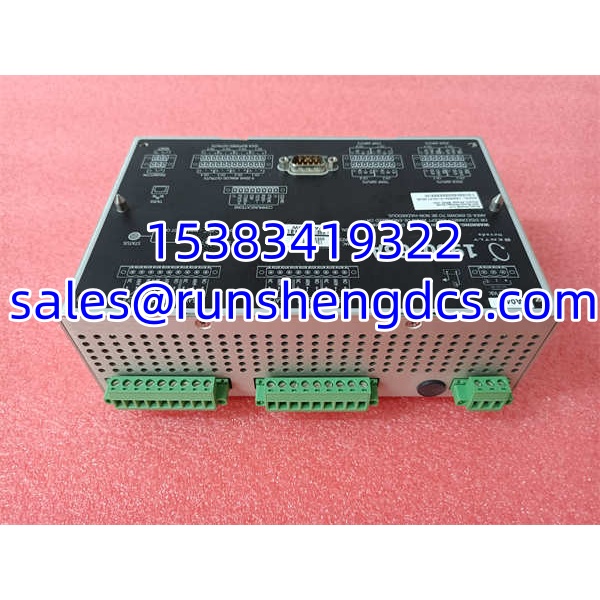

Bently 1900/65A-01-02-01-00-00 | General Purpose Equipment Monitor

Description

Key Technical Specifications

Product Introduction

When a plant has pumps, fans, motors, compressors, or auxiliary rotating equipment that matters—but does not justify a full 3500-series protection system—the 1900/65A is usually the practical middle ground. 1900/65A-01-02-01-00-00 is a Bently Nevada general-purpose equipment monitor designed to provide continuous vibration and temperature monitoring with local alarm indication, relay protection outputs, analog recording outputs, and optional Modbus communication.

Its value is that it packs 8 monitored inputs into one compact, self-contained unit: 4 sensor channels plus 4 temperature channels. That gives maintenance and reliability teams real protection on balance-of-plant equipment without the cost, rack space, and engineering overhead of a full machinery protection system. The 01 power option typically points to 110–220 Vac external supply, but verify the nameplate before wiring.

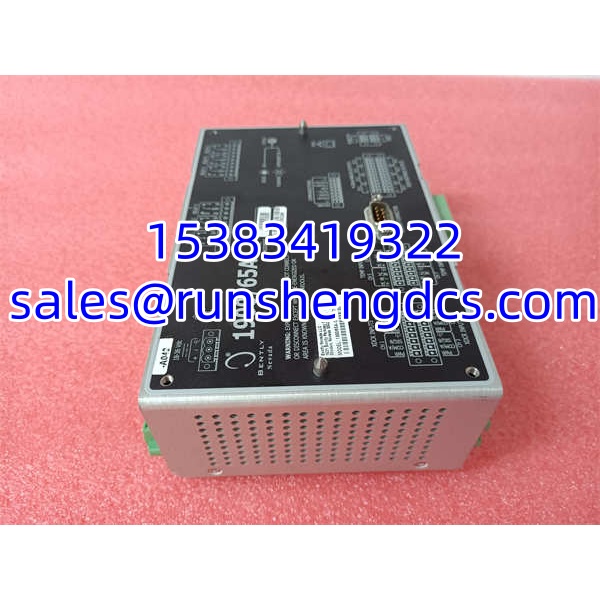

BENTLY 1900-65A-01-02-01-00-00

QA/QC Transparency SOP

1. Intake & Origin Verification
   Read the nameplate for 1900/65A-01-02-01-00-00, serial number, hardware revision, firmware revision, power option, display option, communication option, and date code. Confirm whether the unit is new surplus, used pull, refurbished, or repaired. Quarantine any unit with cracked housing, corroded terminals, missing labels, damaged connectors, or evidence of unauthorized repair.
2. Live Functional Testing
   Power the unit only with the correct supply. For a “01” power option, that typically means 110–220 Vac external supply. In a controlled test setup, verify that the monitor powers up, status indicators behave normally, sensor inputs are recognized, and the configuration software can communicate with the unit.
3. Electrical Parameter Tests
   Check supply terminals, relay output contacts, 4–20 mA output loops, and buffered outputs with a calibrated multimeter or loop calibrator. Verify insulation and continuity where applicable. Do not apply high-voltage megger tests directly to sensor input terminals unless the OEM procedure explicitly permits it.
4. Firmware/Config Verification
   Read the firmware version and upload the existing configuration file. Back up alarm setpoints, relay voting logic, 4–20 mA output assignments, Modbus register mapping, and display settings. Compare the replacement unit against the original project file, not just the part number.
5. Final QC & Anti-Static Packaging
   Clean terminals and connectors, cap unused ports, and label the unit with part number, serial number, firmware version, test date, pass/fail status, and tester ID. Pack in anti-static material. Include a test summary if the unit is being returned to service or sold as verified surplus.

Field Engineer Gotchas

• Power option mismatch can damage the unit or prevent startup
  Risk: 1900/65A units can have different power options. The “01” in 1900/65A-01-02-01-00-00 typically indicates 110–220 Vac external power, but some 1900/65A units use 18–36 Vdc.
  Fix: Read the nameplate power rating before connecting supply.
  Blunt warning: Applying the wrong supply voltage is one of the fastest ways to kill a monitor in the field.
• Part number match does not guarantee configuration match
  Risk: Two 1900/65A-01-02-01-00-00 units may have different firmware, saved configurations, relay logic, or Modbus mappings.
  Fix: Upload the old configuration, compare it to the replacement, and download the correct project file before returning the machine to service.
  Reality check: Same part number gets you hardware compatibility. Configuration gets you protection.
• Relay voting logic must be verified before trusting trip outputs
  Risk: The 1900/65A has 6 configurable relays with voting logic. A relay may appear functional but still be mapped to the wrong alarm, wrong channel, or wrong trip condition.
  Fix: Verify Alert, Danger, OK status, relay assignments, and trip logic against the plant protection philosophy.
  War story: A replacement monitor powered up fine, but the trip relay was still mapped to a test alarm from a previous configuration. The machine looked protected until someone actually checked the relay mapping.
• Display/keyboard option affects local operation
  Risk: If the suffix indicates no display, local viewing and minor configuration changes may not be available.
  Fix: Confirm whether the unit supports the optional display/keyboard and whether the display cable length is within the 75 m / 250 ft limit.
  Bottom line: If operators need local readout, do not install a no-display unit and expect field visibility.

BENTLY 1900-65A-01-02-01-00-00

Application Scenarios

• Cooling tower fans and forced-draft fans
  Used where continuous vibration and bearing temperature monitoring can catch imbalance, misalignment, or bearing degradation before a forced outage.
• Pumps, blowers, and motors
  Suitable for balance-of-plant rotating equipment that needs protection but does not justify a full 3500-series machinery protection system.
• Small compressors and centrifugal equipment
  Applicable to small reciprocating compressors, air compressors, centrifuges, and similar auxiliary assets.
• OEM skid packages and standalone monitoring skids
  Useful where a compact, self-contained monitor is needed for factory-assembled equipment or remote skids.

Anonymized Case Study

A chemical plant had recurring bearing temperature alarms on a cooling water pump, but the existing protection was limited to a simple temperature switch. Maintenance installed a 1900/65A to monitor both bearing vibration and temperature. During commissioning, the technician noticed the replacement monitor had a different saved configuration than the original project file. The relay outputs were initially mapped to test alarms, and one 4–20 mA output was assigned to the wrong channel. After uploading the correct configuration, verifying the Alert and Danger setpoints, and testing the trip relay, the monitor was returned to service. The unit later detected a developing bearing fault through rising vibration and temperature trends, allowing a planned shutdown instead of an unexpected pump failure.

FAQ

1. What is Bently Nevada 1900/65A-01-02-01-00-00?
   It is a Bently Nevada 1900/65A General Purpose Equipment Monitor, configured with specific power, display, communication, and option codes.
2. What does the “01” at the start of the suffix mean?
   In 1900/65A ordering conventions, the first option position typically defines the power supply. 01 usually indicates 110–220 Vac, 50/60 Hz external power, but confirm on the nameplate before installation.
3. How many inputs does 1900/65A-01-02-01-00-00 have?
   It has 8 monitored inputs: 4 sensor inputs and 4 temperature inputs.
4. Can it replace a 3500 system module?
   Not directly. The 1900/65A is a standalone general-purpose monitor, not a 3500-series rack module. Replacement depends on the application, protection requirements, I/O needs, and system architecture.
5. Does it support Modbus?
   Yes, when equipped with the Modbus gateway option. It can communicate with DCS, PLC, SCADA, or System 1 software via Modbus.
6. Can I use it without a display?
   Yes. The 1900/65A can operate without a local display, but local viewing and minor configuration changes may require the optional display/keyboard.
7. Is this unit suitable for critical turbine protection?
   It is designed for general-purpose and auxiliary equipment monitoring. For large, critical rotating machinery, verify whether the application requires a higher-level machinery protection system such as the 3500 series.
