Description
Key Technical Specifications
• Vibration Inputs: 4 channels (2/3-wire accel, velocity, proximity)
• Temperature Inputs: 4 channels (E, J, K, T thermocouples; 2/3-wire RTD)
• Relay Outputs: 6 programmable (Alert/Danger/OK logic)
• Analog Outputs: 4 buffered 4-20 mA recorder outputs
• Communication: Ethernet + RS232/485 (Modbus TCP/RTU)
• Power Supply: 18-36 VDC (110/220 VAC via external PSU)
• Operating Temp: -20°C to +70°C
• A/D Resolution: 24-bit, 25 kHz bandwidth
• Configuration: PC software via Ethernet download
• Display Option: Supports remote keypad (up to 75m)
Product Introduction

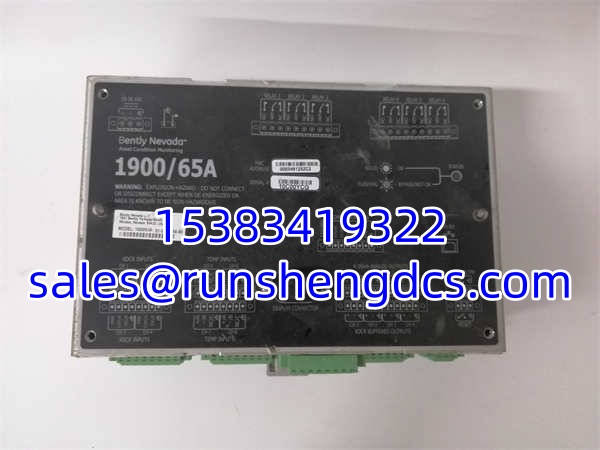

3500 racks are overkill for a 5HP cooling fan. The Bently 1900/65A-01-00-01-00-00 exists to fill that gap. It’s a standalone, self-contained monitor that gives you API 670-level protection without the rack, backplane, and power supply overhead. Think of it as the workhorse for BOP (Balance of Plant) equipment where a full DCS integration isn’t justified but a catastrophic failure still hurts.
Why deploy this? You get 6 relays and 4 analog outputs in a single DIN-rail package. The Modbus gateway is built-in on this suffix, so you can pull Alert/Danger status directly into your PLC or SCADA without extra hardware. Honestly, the 24-bit A/D converter at 25 kHz bandwidth is the same silicon used in the 3500 series. You’re not buying “cheap”; you’re buying “right-sized.” Just don’t expect it to handle turbine-grade transient data capture.
Troubleshooting Quick Reference
• No Power / Dead LEDs | Cause: Blown fuse or wrong PSU voltage | Relevancy: 90% | Quick Check: Measure TB1-1/2 for 24VDC | Fix: Replace inline fuse or check external 110/220 VAC supply
• Sensor Open/Short Alarm | Cause: Broken cable or bad prox probe | Relevancy: 85% | Quick Check: Measure resistance at monitor terminals | Fix: Swap sensor or check shield ground loop
• Modbus Comm Loss | Cause: IP conflict or wrong register map | Relevancy: 75% | Quick Check: Ping unit; check 1900 Config software | Fix: Verify subnet mask and register offset in PLC
• Nuisance Relay Trips | Cause: Filter settings too aggressive | Relevancy: 80% | Quick Check: Review high-pass filter cutoff in config | Fix: Adjust filter to 0.5Hz or 1Hz for slow-roll machines
• Display Blank | Cause: Ribbon cable loose or display PSU fail | Relevancy: 70% | Quick Check: Reseat display connector on rear | Fix: Replace display module or check 75m cable run

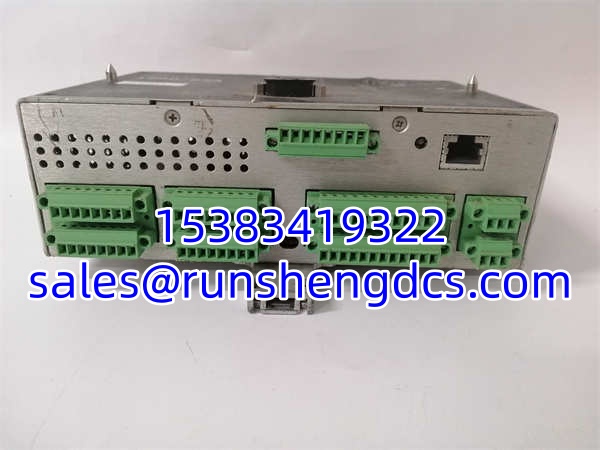

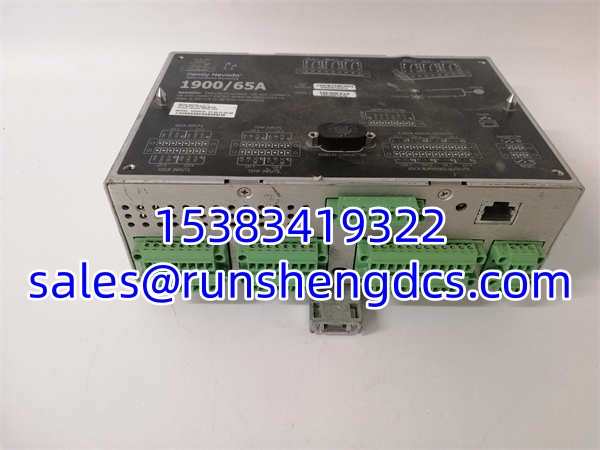

BENTLY 1900-65A-01-00-01-00-00
Application Scenarios & Pain Points
• Chemical Plant Auxiliaries: Corrosive atmosphere kills expensive rack systems. This sealed unit sits in local panels, monitoring pump bearing temps while the 3500 stays in the clean control room.
• Power Plant Coal Conveyors: Long cable runs cause signal degradation. The 3-wire accelerometer support on the 1900/65A compensates for voltage drop, keeping vibration data accurate over 300m runs.
• Water Treatment Lift Stations: High humidity and H2S gas. The conformal coating and optional IP65 steel door protect the electronics when the panel door opens for maintenance.
Compatible Replacement Models
• ✅ Drop-in Replacement: Bently 1900/65A-01-00-01-00-00 (Exact Match). Same footprint, same wiring, same Modbus map. Cost varies by vendor (10k-32k range depending on surplus vs. new).
• ⚠️ Software Compatible: Bently 1900/65A-00-01-01-00-00. Same hardware, different I/O config. Requires 1900 Configuration Software re-download. Plan 2 hours for re-commissioning and loop checks.
• ❌ Hardware Incompatible: Bently 3500/42M. Do not attempt direct swap. Requires new rack, backplane, power supply, and complete rewiring. 10x the cost and footprint. Only upgrade if you need transient waveform capture.
