Description
Key Technical Specifications
- Model Number: 07-7311-97WP5400
- Manufacturer: BARTEC
- Module Type: Channel Coupler
- Application: Hazardous Area / Explosion-proof Systems
- System Role: Signal Isolation & Coupling
- Mounting Format: DIN Rail / Modular Rack
- Certification: ATEX / IECEx (Explosion-proof)
- Operating Temperature: Rated for Harsh Industrial Environments
Functional Role & Application Analysis

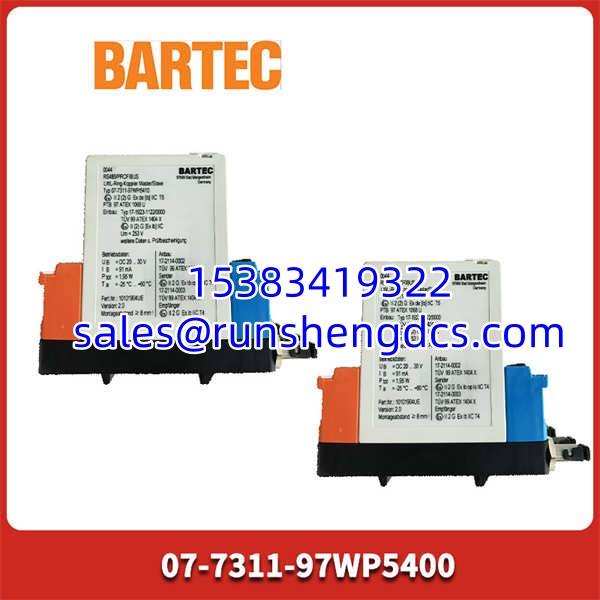

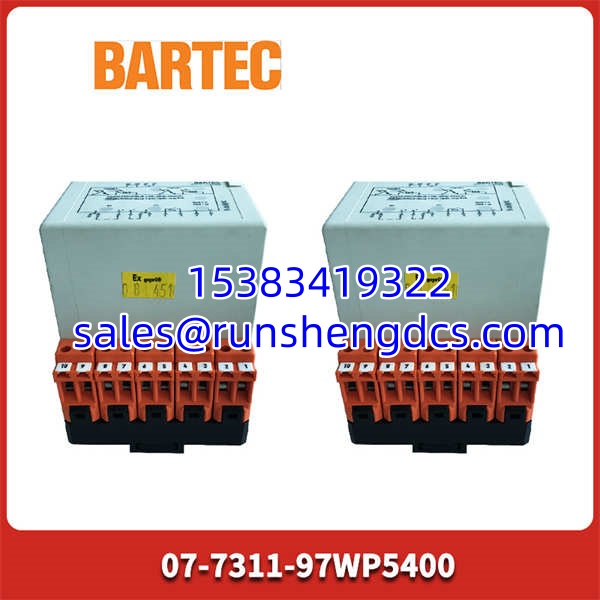

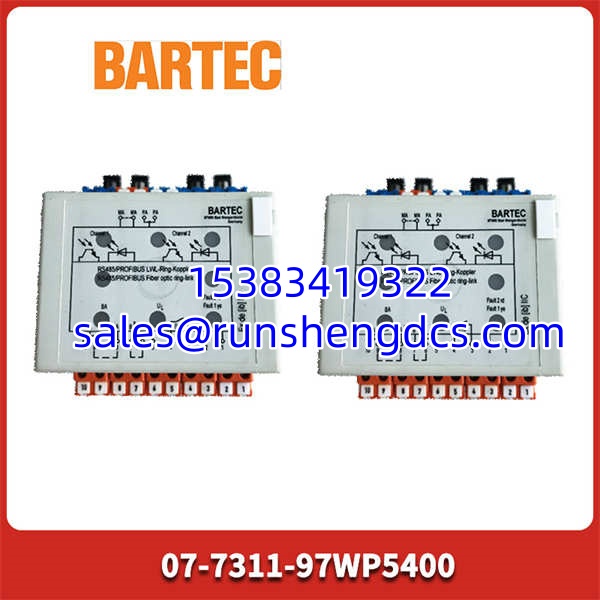

The BARTEC 07-7311-97WP5400 is a specialized channel coupler designed for explosion-proof (Ex) control systems. It solves the critical safety and signal integrity problem of transmitting control signals across boundaries between safe and hazardous areas. In environments with combustible gases or dust, direct electrical connections pose severe ignition risks. This module provides galvanic isolation and intrinsic safety barriers, ensuring that field signals are safely coupled to the control system without compromising the hazardous area classification.
Typical use cases include:
- Hazardous Area Signal Isolation: Safely routing 4-20mA, digital, or thermocouple signals from field instruments in Zone 1/Zone 2 areas to PLC/DCS systems in the control room.
- Explosion-Proof System Maintenance: Replacing failed coupling modules in legacy BARTEC Ex-i or Ex-d control cabinets to restore safe signal transmission.
- Oil & Gas / Chemical Processing: Serving as a critical safety interface in offshore platforms, refineries, and chemical plants where strict ATEX/IECEx compliance is mandatory.
- System Expansion: Adding new field devices to existing hazardous area networks without requiring costly recertification of the entire control panel.
Our Quality Standard & Testing Process
Safety-critical Ex components cannot fail. A compromised coupler can break the intrinsic safety barrier and create an ignition hazard. We treat every 07-7311-97WP5400 with zero tolerance for defects. Each unit undergoes comprehensive validation before shipment.
- Visual & Component Inspection: Boards are cleaned and inspected under magnification for cracked solder joints, damaged barrier components, or signs of electrical overstress.
- Isolation Resistance Test: Galvanic isolation is verified at rated voltage to confirm the safety barrier meets Ex certification requirements.
- Signal Transfer Validation: Input/output signal accuracy is tested across the full range to ensure no signal degradation or offset that could cause control errors.
- Power Consumption Check: Loop current draw is verified to ensure the module does not exceed the intrinsic safety energy limits of the connected field circuit.
- Warranty Backing: Only units passing every diagnostic step are approved for shipment and covered by our full 12-month warranty.
Compatibility & Migration Paths
BARTEC channel couplers are engineered for specific Ex system architectures. Installing an incompatible coupler can void safety certifications and create hazardous conditions. Verify these points before ordering.
- System Compatibility: Confirm your control cabinet is designed for the 07-7311 series couplers. Earlier or later BARTEC series may have different pinouts and safety parameters.
- Signal Type Matching: Verify the coupler matches your field signal type (analog, digital, thermocouple). Mismatched signal types will cause control failures.
- Certification Requirements: Ensure the 07-7311-97WP5400 carries the correct ATEX/IECEx certification for your specific hazardous area classification (Zone, gas group, temperature class).
- Terminal Block Compatibility: Confirm you have the correct BARTEC terminal blocks for this coupler series. Generic terminal blocks may not maintain the required creepage and clearance distances.
- Get Expert Help: Send us your hazardous area classification, signal type, and existing BARTEC system details. Our team will confirm compatibility and safety compliance before you commit to a purchase.
