Description
Key Technical Specifications
- Model Number: ABB UNITROL 1010 3BHE035301R1002 UNS0121A-Z,V1
- Manufacturer: ABB
- Series: UNITROL 1000 Series
- Product Type: Excitation Controller / Voltage Regulator
- Continuous Output Current: Up to 10A DC (Expandable to 40A with external module)
- Control Input Voltage: 20 VAC to 250 VAC (Control Power)
- Communication Interfaces: Ethernet, USB, RS485 (Modbus RTU)
- Operating Temperature Range: -25°C to +60°C
- Protection Class: IP65
- Certifications: DNV and UL standards compliant
Functional Role & Application Analysis
The ABB UNITROL 1010 serves as a highly compact, high-performance voltage regulator for small to medium-sized synchronous generators. It solves the critical challenge of maintaining precise grid synchronization and reactive power control in harsh, vibration-prone environments. Built on advanced microprocessor technology and IGBT semiconductors, this unit delivers continuous 10A DC output while offering dual-channel redundancy, automatic synchronization, and rotating diode monitoring.
Typical use cases include:
- Use Case 1: Land-based diesel, gas turbine, and hydroelectric power plants requiring reliable indirect excitation control.
- Use Case 2: Marine applications, specifically for power propulsion and auxiliary power generation systems.
- Use Case 3: Industrial traction and mining, such as diesel-electric locomotives and heavy-duty mining trucks.
- Use Case 4: Wind power generation utilizing directly connected synchronous motors.
- Use Case 5: Critical maintenance and direct replacement for legacy UNITROL 1000 series installations.
Our Quality Standard & Testing Process
We understand that the cost of an unreliable excitation controller is far greater than its purchase price. A failed voltage regulator can lead to generator desynchronization and catastrophic plant downtime. We have established a rigorous, multi-stage testing process to ensure every UNITROL 1010 we ship is 100% functional and ready for immediate deployment.
- Visual & Component Inspection: All parts undergo professional cleaning and visual inspection to ensure no physical damage, corrosion, or compromised components on the PCB.
- Live System Test: The module is installed in a live ABB test rack and run for 24 hours to verify continuous operation, thermal stability, and communication integrity.
- Full-Function Diagnostics: We simulate 3-phase machine voltage and network voltage inputs to test the PID control algorithms, output accuracy, and all integrated limiters.
- Warranty Backing: Only parts that pass all diagnostic tests are approved for shipment and backed by our full 12-month warranty.

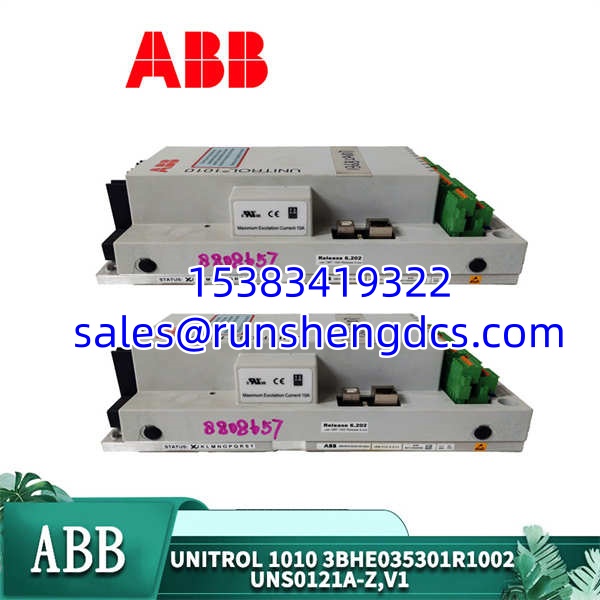

ABB-UNITROL-1010-3BHE035301R1002-UNS0121A-Z,V1
Compatibility & Migration Paths
To ensure this UNITROL 1010 is 100% compatible with your system, you must check these key compatibility points. Failure to verify this is a common project risk that can delay commissioning.
- Firmware/Hardware Revisions: You must confirm your existing CMT1000 software version supports the UNS0121A-Z,V1 firmware revision. Mismatched firmware will prevent parameter configuration.
- Required Components: This module requires specific 3-phase excitation power input terminals and auxiliary power wiring. Ensure your existing terminal blocks match the UNITROL 1010 pinout, as it shares dimensions but differs internally from the UNITROL 1020.
- Replacement & Alternatives: This model is designed for up to 10A DC continuous output. If your application requires higher field current, you must pair this unit with the external UNITROL 1000-PM40 power module to safely upgrade to 40A DC.
- Get Expert Help: Unsure about your system? Contact our technical team today for a free compatibility check.
